Operating the motorized microscope via the touchscreen of the TFT display
01/2016 430000-7544-001 143
(3) Oil stop tab
This tab allows the user to switch the oil stop on
and off. This function prevents a dry objective from
being swiveled into immersion liquid by lowering
the stage whenever you switch from an immersion
to a dry objective.
(4) Dazzle protection tab
If the Dazzle Protection function is globally
deactivated, all other options on this tab are
grayed out.
If a Bino Shutter is installed and dazzle protection
has been activated, the two other dazzle
protection fields (TL/RL) are inactive. Dazzle
protection is, therefore, deactivated through these
components.
If one of the above components is not installed,
the corresponding buttons are not available.
(5) Ethernet
This tab is used to choose settings for connecting
the Axio Imager via Ethernet.
A manually entered IP address will only be
accepted if acknowledged with OK.

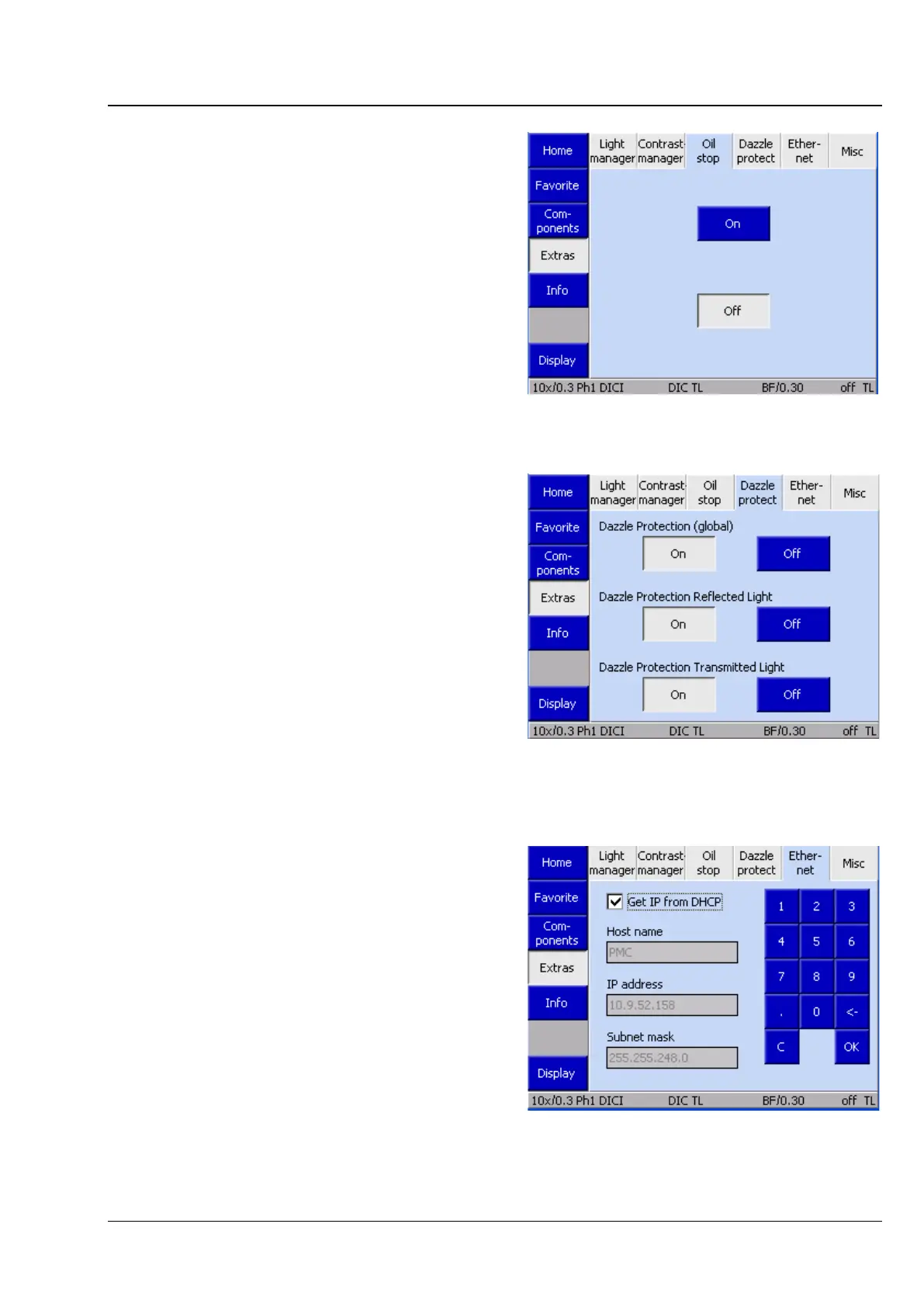

Fig. 163 Microscope -> Config -> Extras ->
Oil stop
Fig. 164 Microscope -> Config -> Extras ->
Fig. 165 Microscope -> Config -> Extras ->
