Axio Imager 2 FIRST-TIME SET-UP ZEISS
Installing the LED illuminator for transmitted light
01/2016 430000-7544-001 63
Installing the LED illuminator on the
condenser carrier
• Remove the halogen illuminator from the
transmitted-light port and disconnect the
illuminator plug. Cover the transmitted-light
port with the cover cap.
• Move the microscope stage and condenser
carrier to the top position using the focusing
drive (stage) and height control (condenser).
• Screw bolts (Fig. 49/5) by hand into the tapped
holes (Fig. 49/6 and 7) in the bottom of the
condenser carrier.
• Hold the LED illuminator (Fig. 49/2) parallel to
the underside of the condenser carrier
(Fig. 49/1). Move it upwards so that the bolts
(Fig. 49/5) fit into the corresponding holes on
the illuminator. Fasten the illuminator by means
of the countersunk screws (Fig. 49/3) located on
the left of the LED illuminator.
• Push the slider with diffusing glass 80°
(Fig. 49/4) into the LED illuminator, or for
transmitted-light polarization, push in the
polarizer for LED (427708-9901-000).
When using the polarizer, simple polarization
contrast is possible. However, conoscopy is not.
• Insert the plug of the LED illuminator into the 12 V / 100 W connector (transmitted light) on the back
of the instrument.
The color temperature for specimen
observation can be changed by inserting color
temperature filters in the slider with diffusion disk (held by retaining ring).

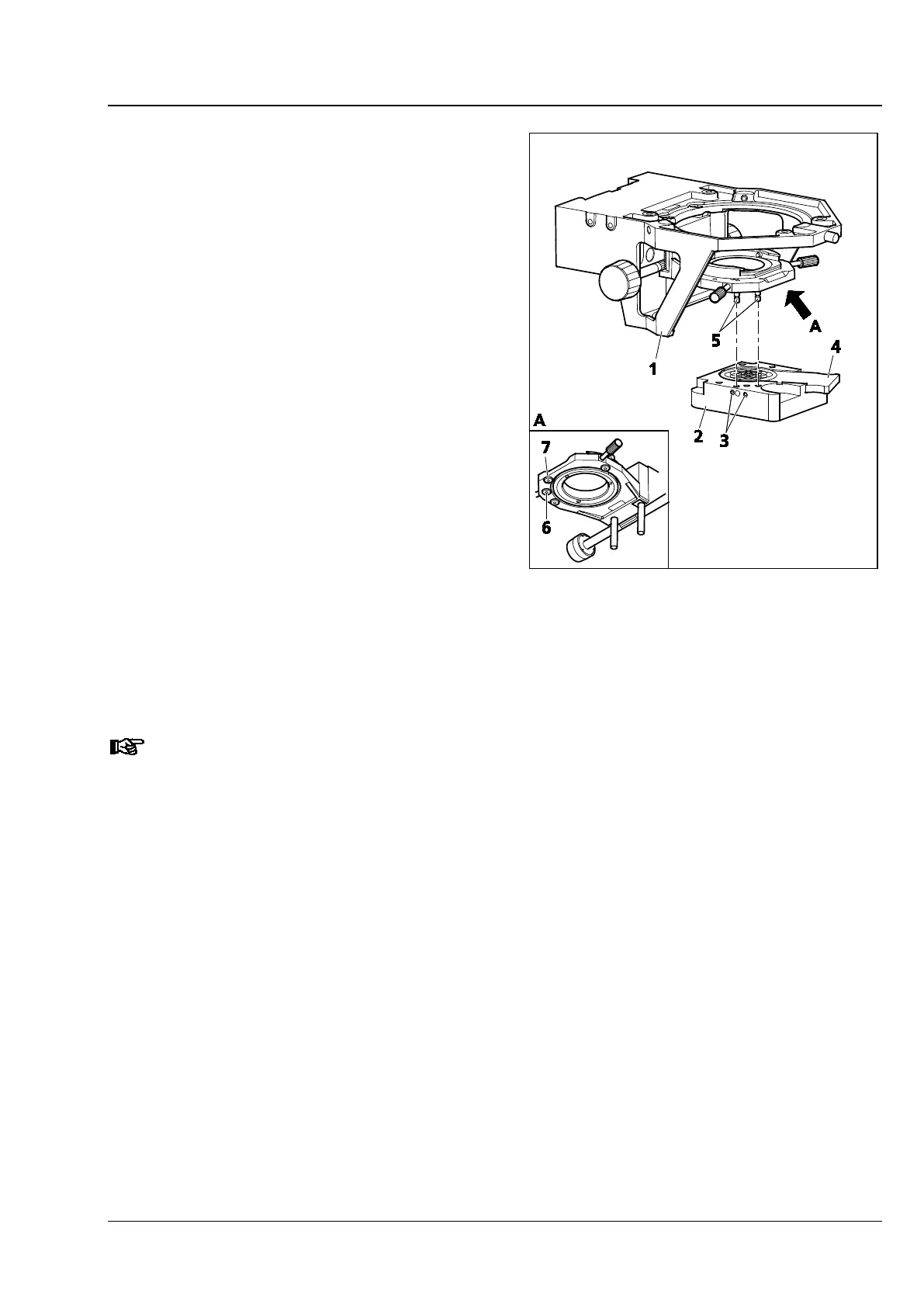

Fig. 49 Installing the LED illuminator
