4. For Top Layer, select the top layer for your preset (if needed).
5. For Bottom Layer, select the bottom layer for your preset (if
needed).
6. To adjust the boundaries for the top or bottom layer, refer to:
Image Navigation [}137].
7. For Algorithm Type select either Sum or Max.
8. Click OK.
9.6 Show or Hide the Fundus Image
To hide or display the fundus image:
Prerequisite þ Logged in to review station (or instrument): Logging In as
Operator or Data Analyst [}73]
þ The scan report or analysis is open: Opening a Report or
Analysis [}120]

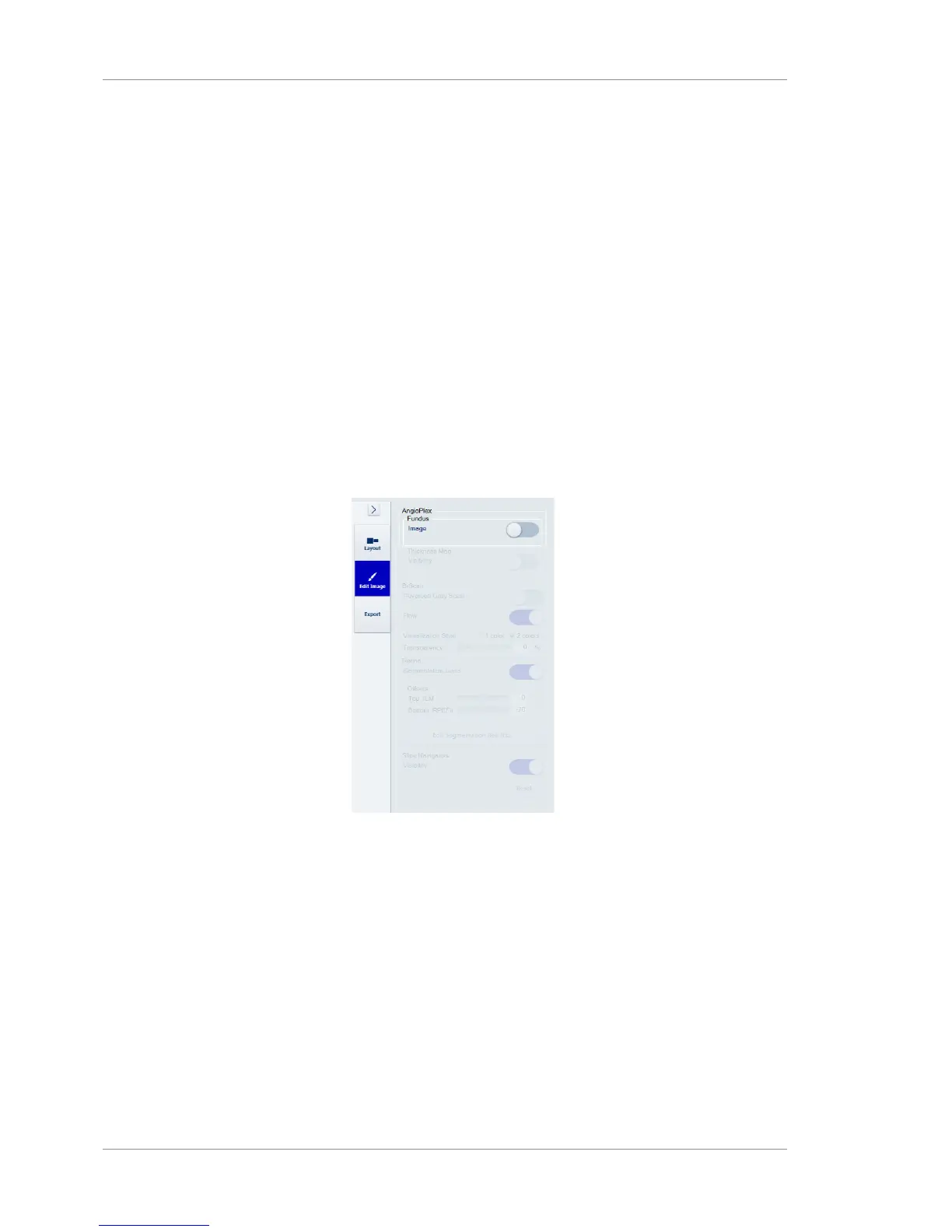

Action 1. Select the Edit Image options.
2. To show the fundus image, slide Image on.
3. To hide the fundus image, slide Image off.
9.7 Editing B-Scans
To edit the B-scan image:
Prerequisite þ Logged in to review station (or instrument): Logging In as
Operator or Data Analyst [}73]
þ The scan report or analysis is open: Opening a Report or
Analysis [}120]
Action 1. Select the Edit Image options.
