Zeiss PLEX Elite 9000 - Acquire HD Spotlight Scans

Instructions for Use 8 Operation
2660021169042 Rev. A 2018-03 8.5 Acquire Data (Scan)
2660021169042 Rev. A 2018-03 87 / 246

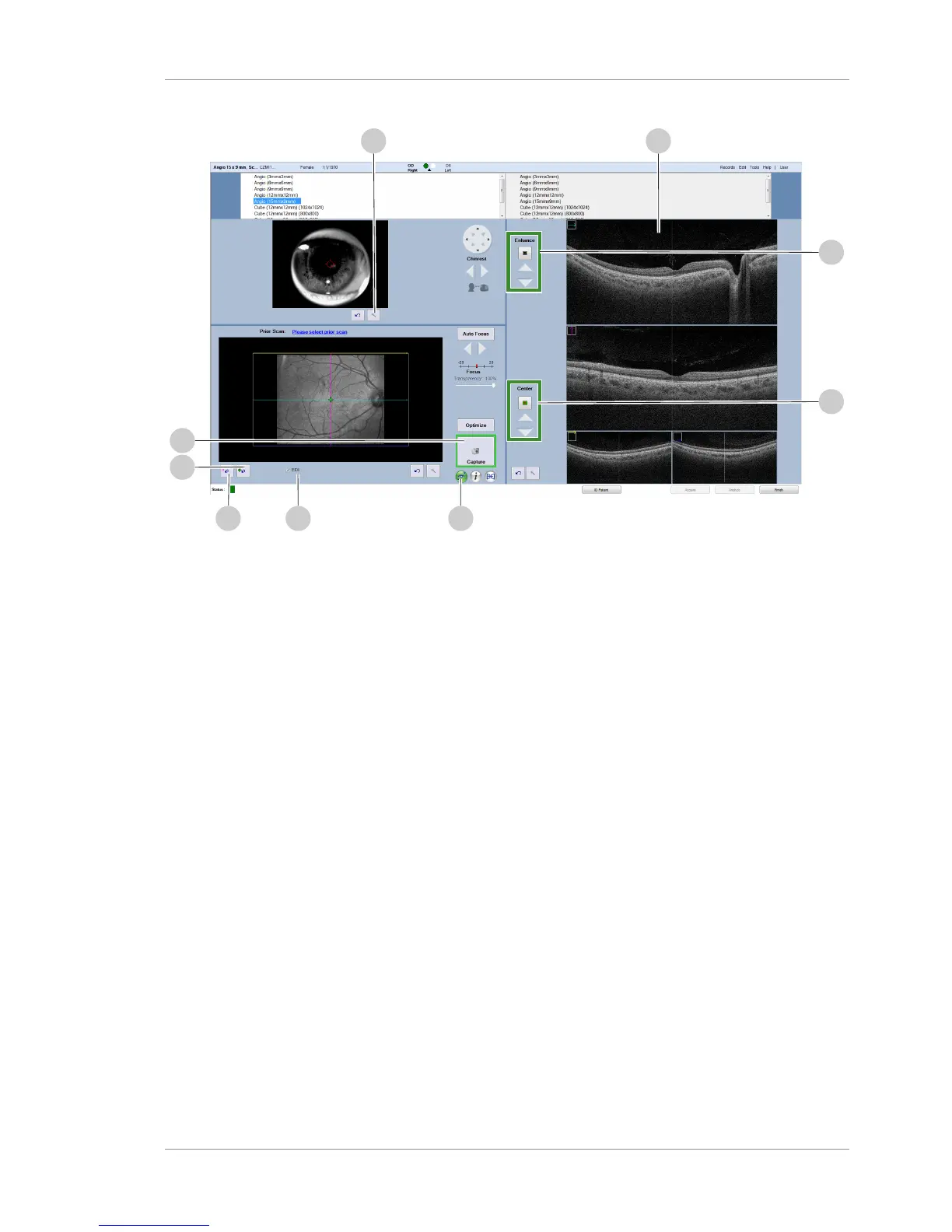

16
10
9
11
15
14 13 12
8
9. To adjust B-scan (9) image quality, fine-tune Enhance (10)
(polarization) settings.
10. To adjust B-scan (9) image centering, fine-tune Center (11) (Z-
offset) settings.
11. To turn on FastTrac, click the FastTrac icon (12).
ð The FastTrac icon turns green to indicate that it's on.
12. To disable EDI, uncheck EDI (13).
NOTE!Do not disable EDI for cube scans.
13. To reset the scan pattern, click Reset (14).
14. To recenter the fixation target, click Recenter (15).
15. Click Capture (16).
NOTE!If the capture button is outlined in red, Capture is
disabled. If Capture is disabled, turn off FastTrac and
ensure that the Capture is enabled (outlined in green).
ð The Check Quality screen opens.
16. Check Scan Quality [}97].
8.5.2 Acquire HD Spotlight Scans
The HD Spotlight scan screen has an additional tool to change the
length of the spotlight (4mm - 16 mm) and rotate the slice to any
angle. Since this scan spotlights one slice, only one image appears
in the B-Scan viewport.
