ð The Acquire Screen opens.

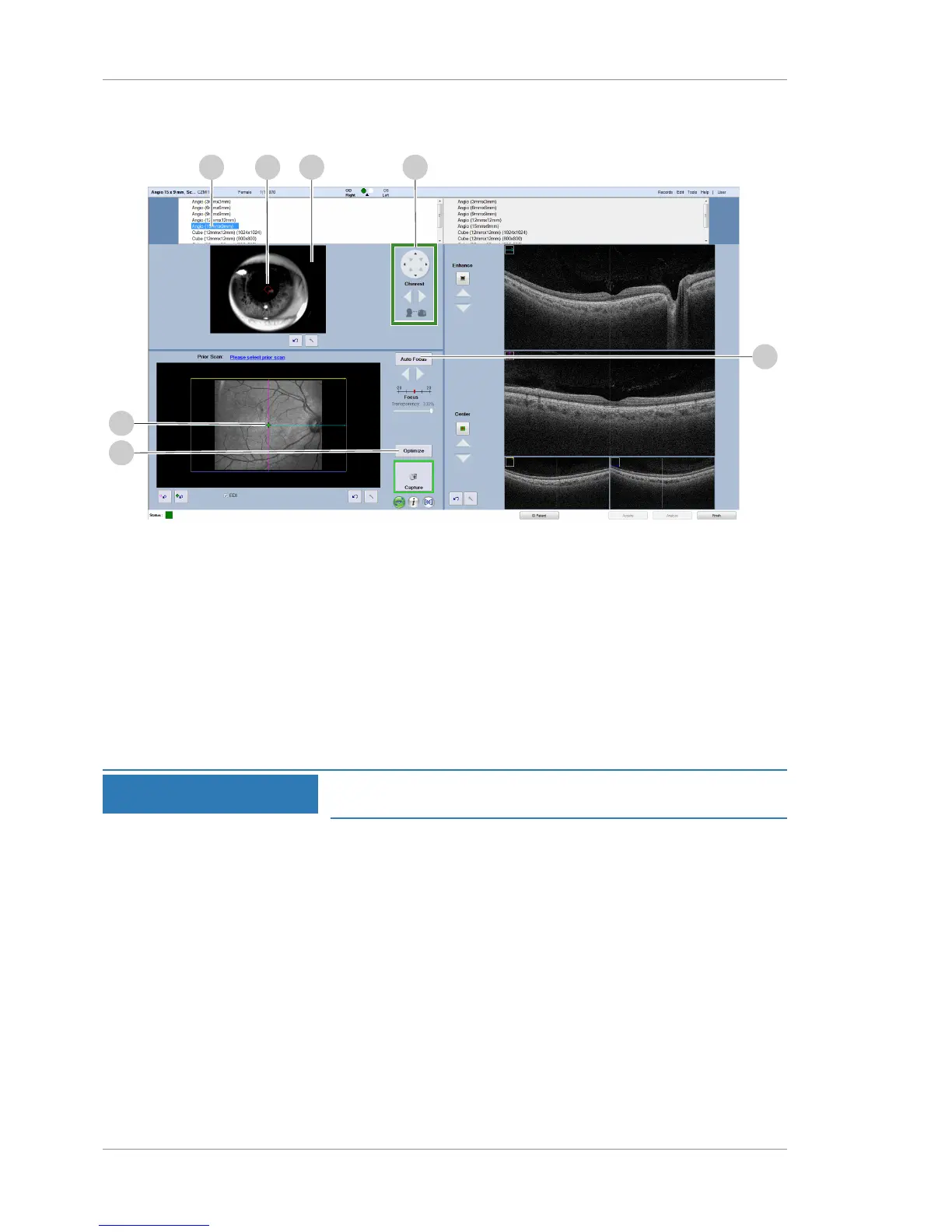

2. Select the appropriate scan (1) under OD or OS.
ð The chinrest moves into place for the selected scan.
3. Left-click on the center of the pupil (2) in the viewport (3).
ð The pupil target appears in the viewport.
4. If needed, move the chinrest settings (4) to position the
image in the viewport (3).
5. Click Auto Focus (5) and ensure that the pupil target (2)
remains centered.
NOTE
If the fundus image becomes dark after you click Auto Focus,
recenter the pupil target and adjust the image brightness.
6. To set the fixation target, click on a new location in the fundus
image (6)
ð The fixation target (green crosshair) moves to the location
selected.
7. Click Optimize (7).
8. To adjust image brightness or make other fine adjustments for
any viewport, click the corresponding Fine Adjustment (8)
tool and make adjustments. (B-Scan viewport indicated.)
To Next Page
