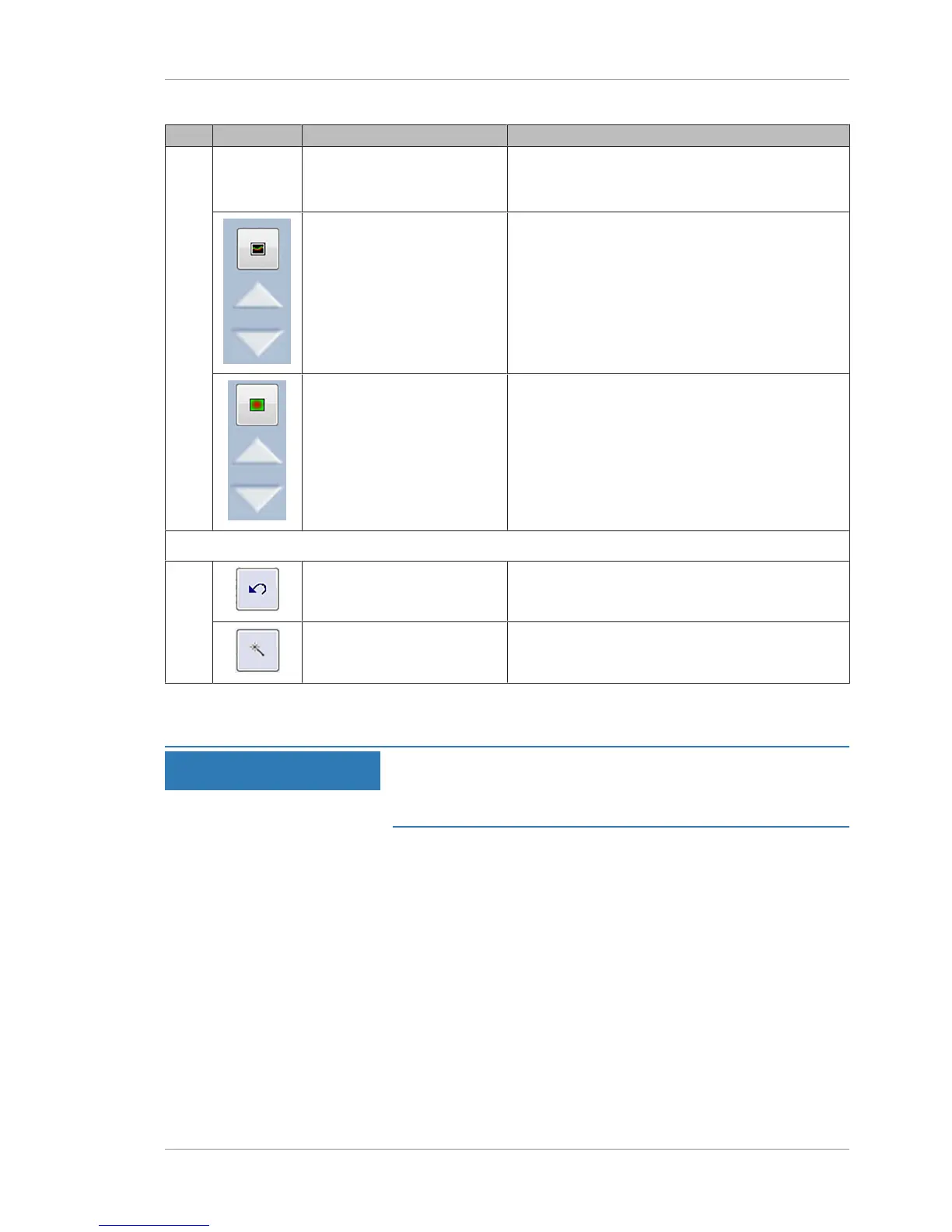

Pos. Symbol Name Explanation
4 Live B-
Scan
Viewport
Auto and Manual B-Scan
Enhancement
Automatically enhances the live scan or use the
arrows to adjust manually.
Center Live Scan Automatically center the live scan or use the arrows
to adjust manually.
All Viewports
Reset All Resets all adjustments.
Fine Adjustments Opens the fine adjustment panel.
8.5.1.2 Acquiring Angio, Cube, and HD51 Scans
NOTE
Artifacts that appear in a single cube scan
can cause data misinterpretation.
u Always acquire cube scans with FastTrac retinal tracking on.
When you acquire a new type of scan for a patient, there are a
series of adjustments to set for optimal scan quality. PLEX® Elite
9000 saves all of the settings and adjustments you make to acquire
the scan when you save it.
To repeat the settings for a prior scan, see: Repeating an Earlier
Scan [}96].
To acquire Angio, Cube, or HD51 scans:
Prerequisite
þ Select the Patient [}74]
þ Prepare the Patient [}78]
þ Determine Scan Type [}80]
Action 1. Select Acquire.
