Chapter 9 Home Networking

NR/FWA Outdoor Series User’s Guide

141

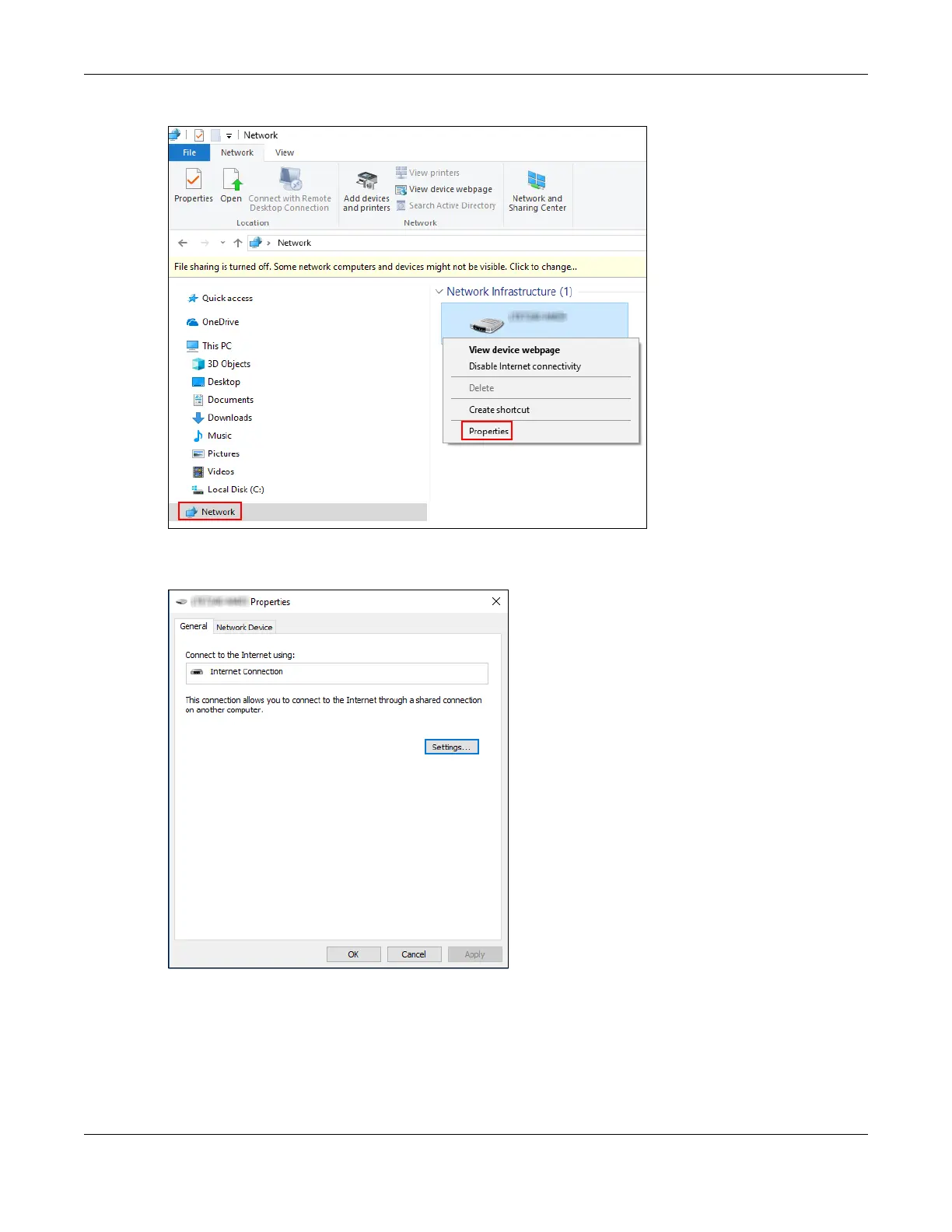

Figure 89 Network Connections

3 In the Internet Connection Properties window, click Settings to see port mappings.

Figure 90 Internet Connection Properties

4 You may edit or delete the port mappings or click Add to manually add port mappings.
