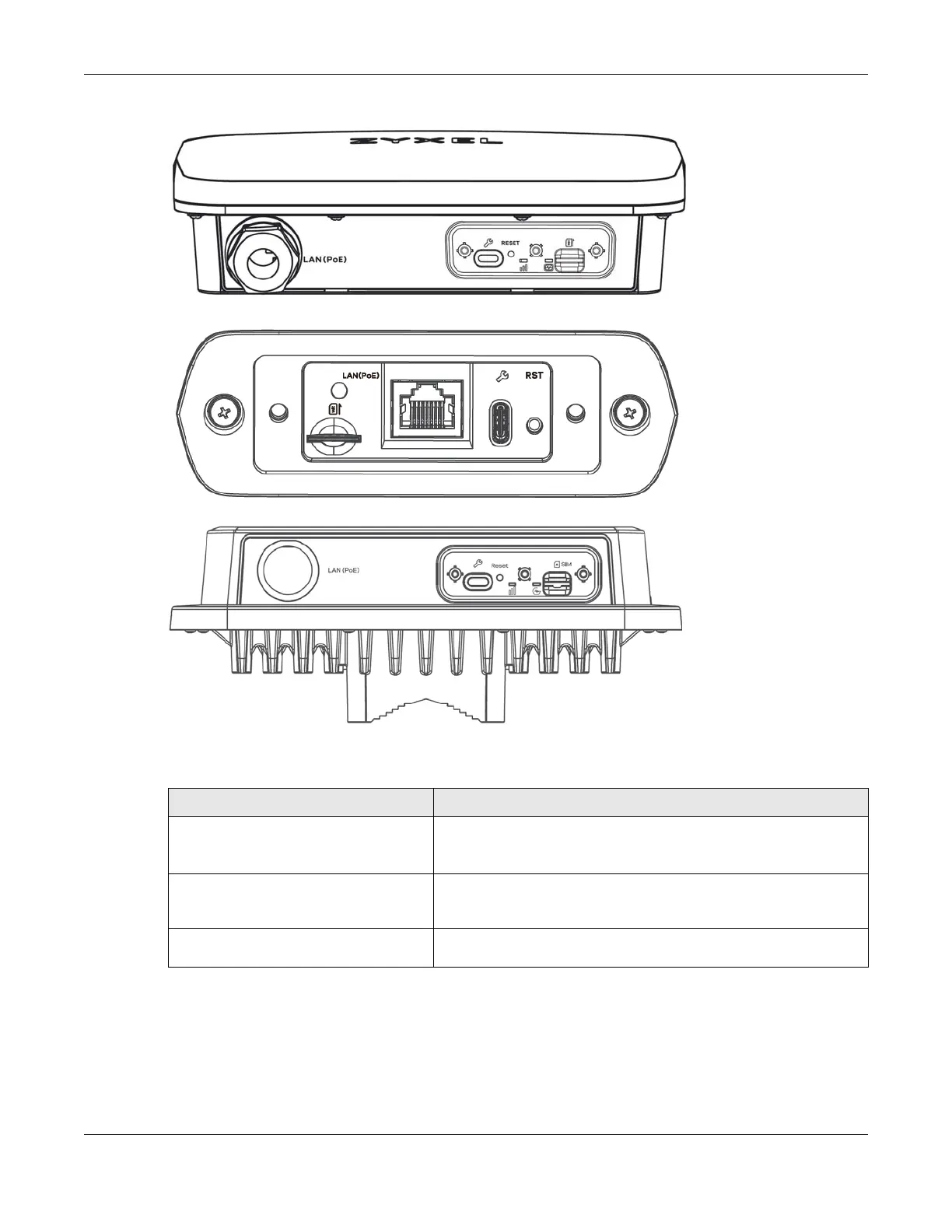

Figure 12 NR7123 Ports Panel
Figure 13 NR7302 / NR7303 Ports Panel
Figure 14 NR7501 Ports Panel
The following table describes the items on the ports panel.
2.4 WiFi/WPS Button
Use the WiFi/WPS button on the Zyxel Device to turn on/off the WiFi network or quickly build a WiFi
connection with a WiFi client.
Table 7 Panel Ports
LABELS DESCRIPTION
USB (Type-C) The USB port of the Zyxel Device is used for maintenance only.
Note: The USB port can only be used by qualified technicians.
LAN (PoE) Connect the PoE port on the PoE injector to the Zyxel Device's LAN
port through an Ethernet cable. Connect the LAN port on the PoE
injector to your computer's RJ45 port through another Ethernet cable.
SIM card Insert a micro-SIM card into the slot with the chip facing down and the
beveled corner in the top left corner.
