NR/FWA Outdoor Series User’s Guide
23
CHAPTER 2
Hardware
2.1 Overview
This chapter describes the physical features and their usages of the Zyxel Device.
2.2 LEDs (Lights)
The LED indicators on your Zyxel Device show current status and/or signal strength of the Zyxel Device.
Note: The LEDs are off if the Zyxel Device is not receiving power.
2.2.1 Zyxel Device Model with Single LED

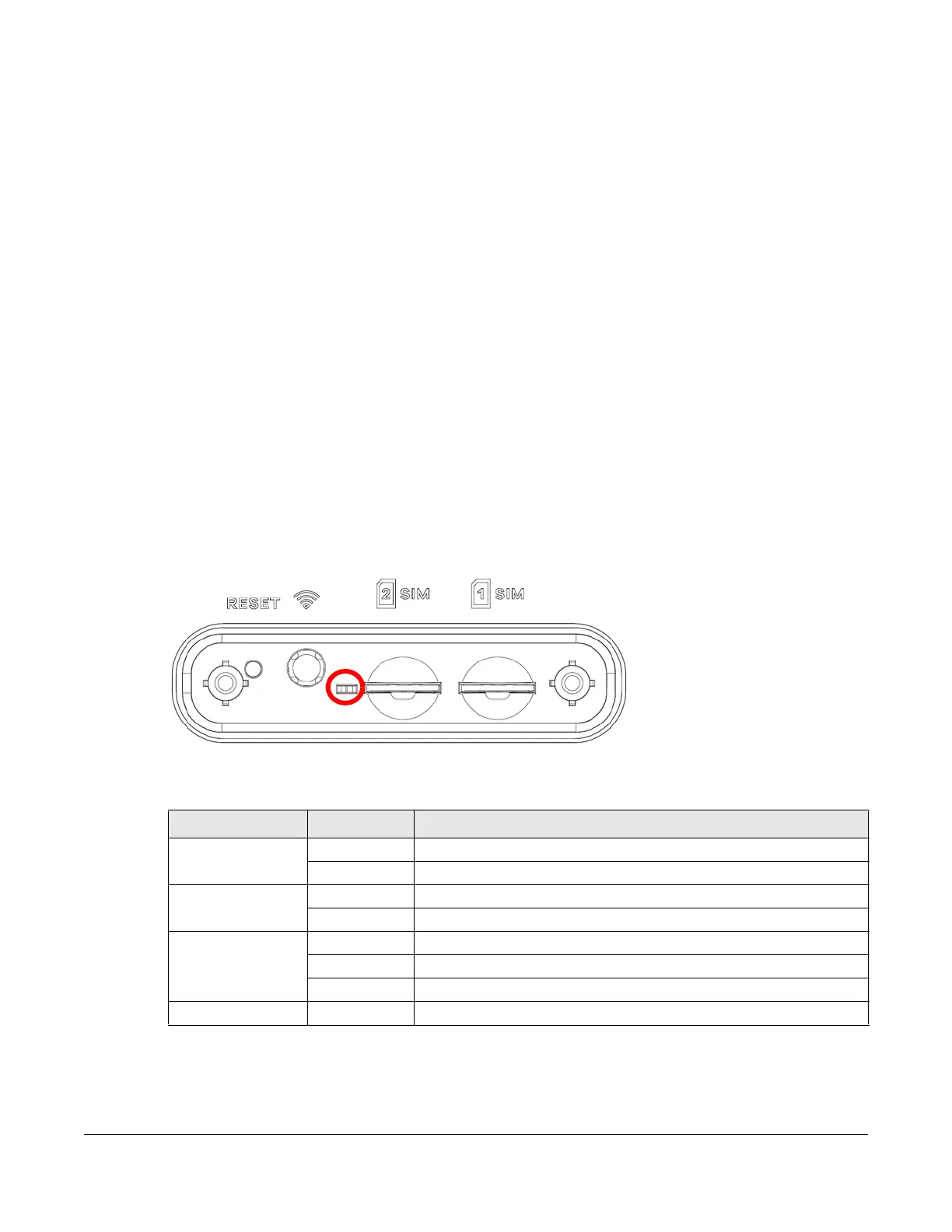

Figure 4 NR7101 LED
The following are the Zyxel Device’s LED descriptions.
Table 3 NR7101 LED Behavior
COLOR STATUS DESCRIPTION
Green On The Zyxel Device is connected to the Internet.
Blinking The Zyxel Device is trying to connect to the Internet.
Amber On The WiFi is activated. The Zyxel Device is connected to the Internet.
Blinking The WiFi is activated. The Zyxel Device is not connected to the Internet.
Red On The Zyxel Device is not connected to the Internet.
Blinking The Zyxel Device is booting or self-testing.
Off There is a system failure.
Green/Amber/Red Looping Firmware upgrade is in progress.
