Chapter 11 Network Address Translation (NAT)
NR/FWA Outdoor Series User’s Guide
167

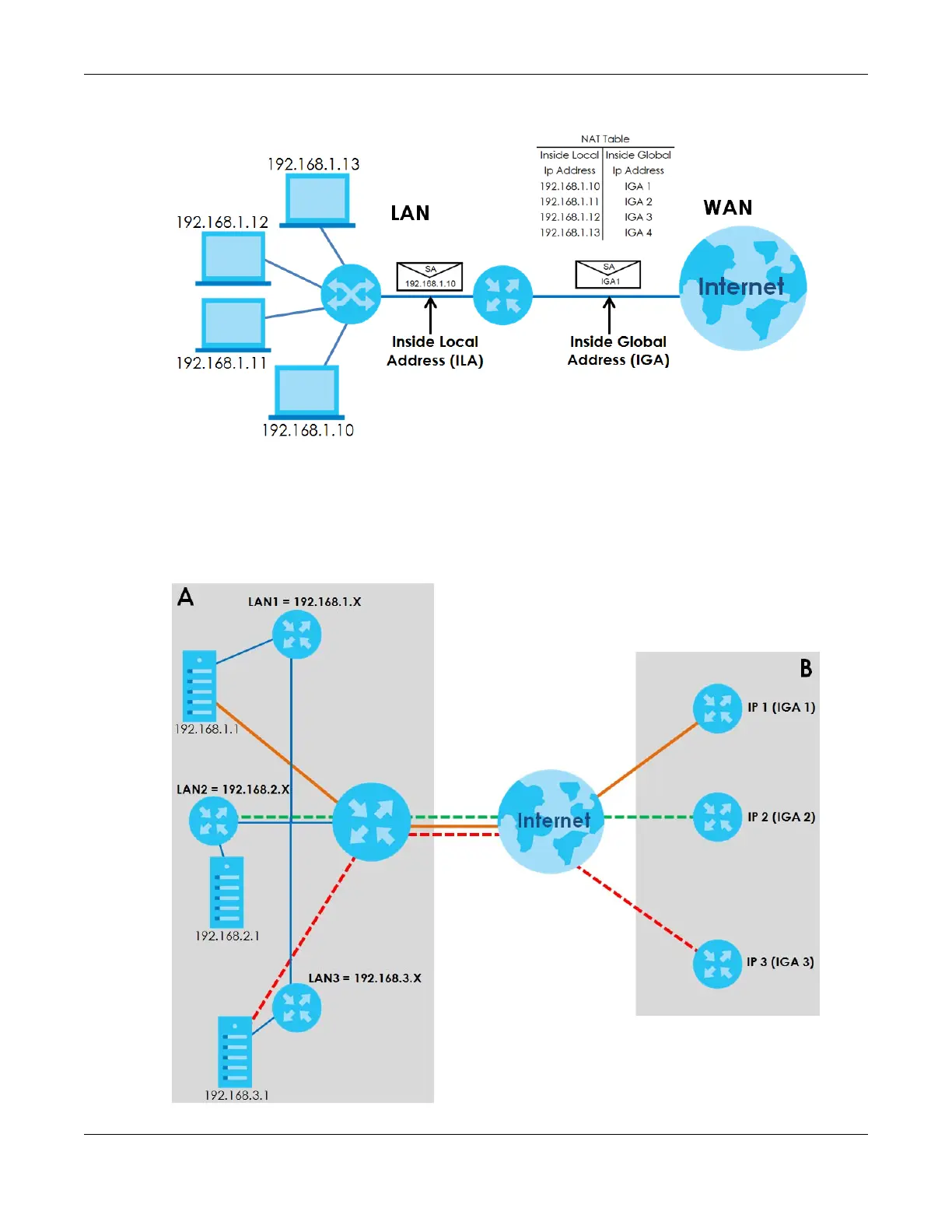

Figure 114 How NAT Works
11.6.4 NAT Application
The following figure illustrates a possible NAT application, where three inside LANs (logical LANs using IP
alias) behind the Zyxel Device can communicate with three distinct WAN networks.
Figure 115 NAT Application With IP Alias
ZD
ZD
