2.3 Ports Panel
The connection ports are located on the ports panel.

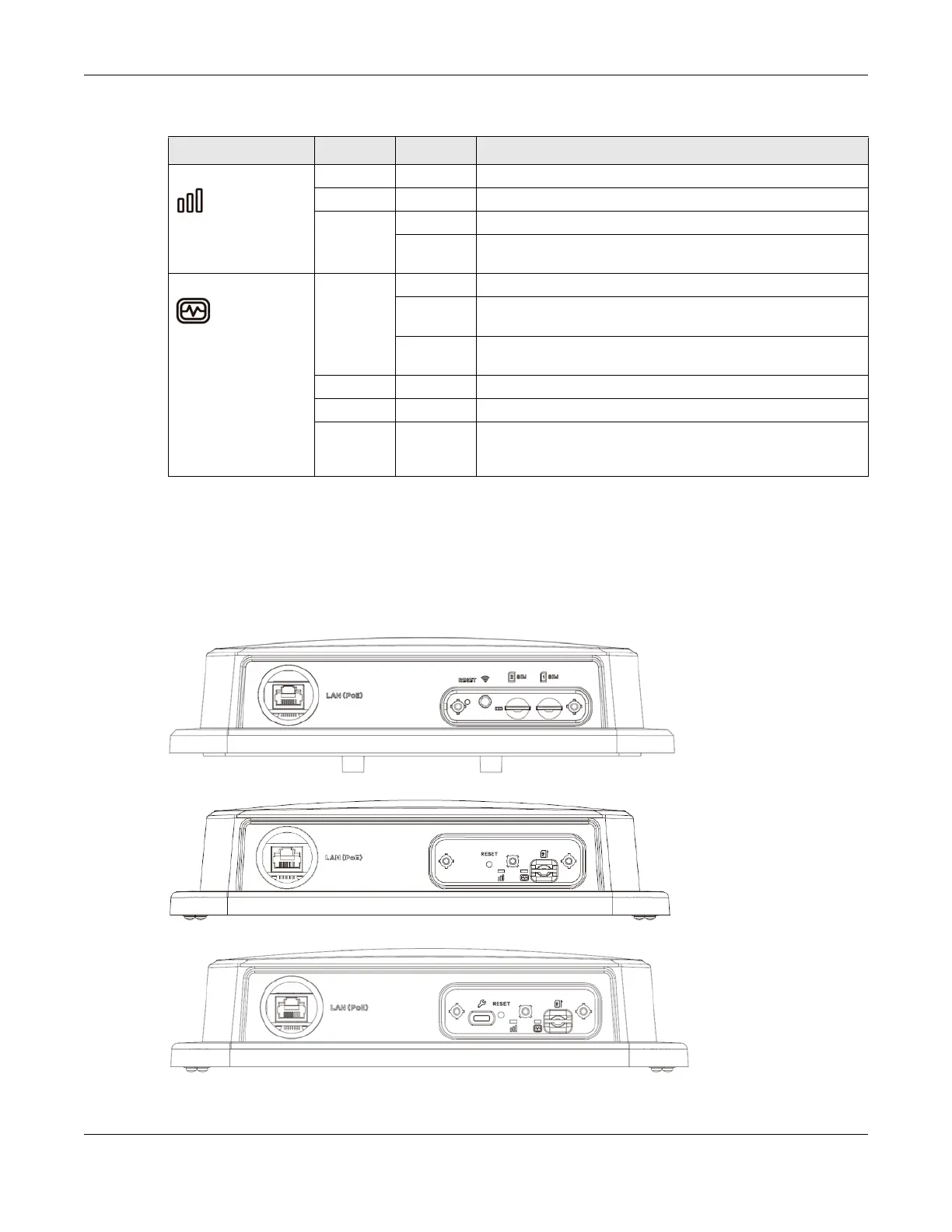

Figure 9 NR7101 Ports Panel
Figure 10 NR7102 Ports Panel
Figure 11 NR7103 / FWA710 Ports Panel
Table 6 NR7501 LED Behavior
LED COLOR STATUS DESCRIPTION
Signal Green On The cellular signal strength is excellent.
Amber On The cellular signal strength is fair.
Red On The cellular signal strength is weak.
Blinking There is no cellular signal, or signal strength is below the weak
level.
Status Green On The Zyxel Device is connected to the Internet.
Blinking
(Fast)
The Zyxel Device is trying to connect to the Internet.
Blinking
(Slow)
The Zyxel Device is booting.
Amber On The WiFi is on.
Red On There is a system failure.
Green /
Amber /
Red
Looping Firmware upgrade is in progress.
