Station Item Description
15
STN
A
tz3_l3_s15
HRY STN 15
B
Station
Number
This is the number of the S800 I/O
Station as specified during database
configuration (1 - 80). It is also a screen
target to the Station display.
Station Type The station type is shown under the
st
ation number. STN = I/O Station, CTL
= Controller (CI520/CI522) and UNK =
unknown.
Status Boxes This shows a letter for station status.
M = missing, F = failed, U = unknown, N
=
not ready, R = ready, A = active and B
= ba
ckup.
Station Border Border color is based on the letter
sh
own in the status box. M, F and U =
red, N = orange, B and R = yellow and
A = green. Border will flash when
diag
nostic messages are present.
Te m p l e t N am e
an
d Label
Displayed as a single line tool tip when
the cursor is over the station target. The
templet name is first and label is
second.
Section 7 I/O Displays S800 LAN Display
3BUR002418-600 A 151
If the station is the CI520/CI522 type CTL, selecting that station icon will bring up
the CI520/CI522 Diagnostics Display, Figure 68.

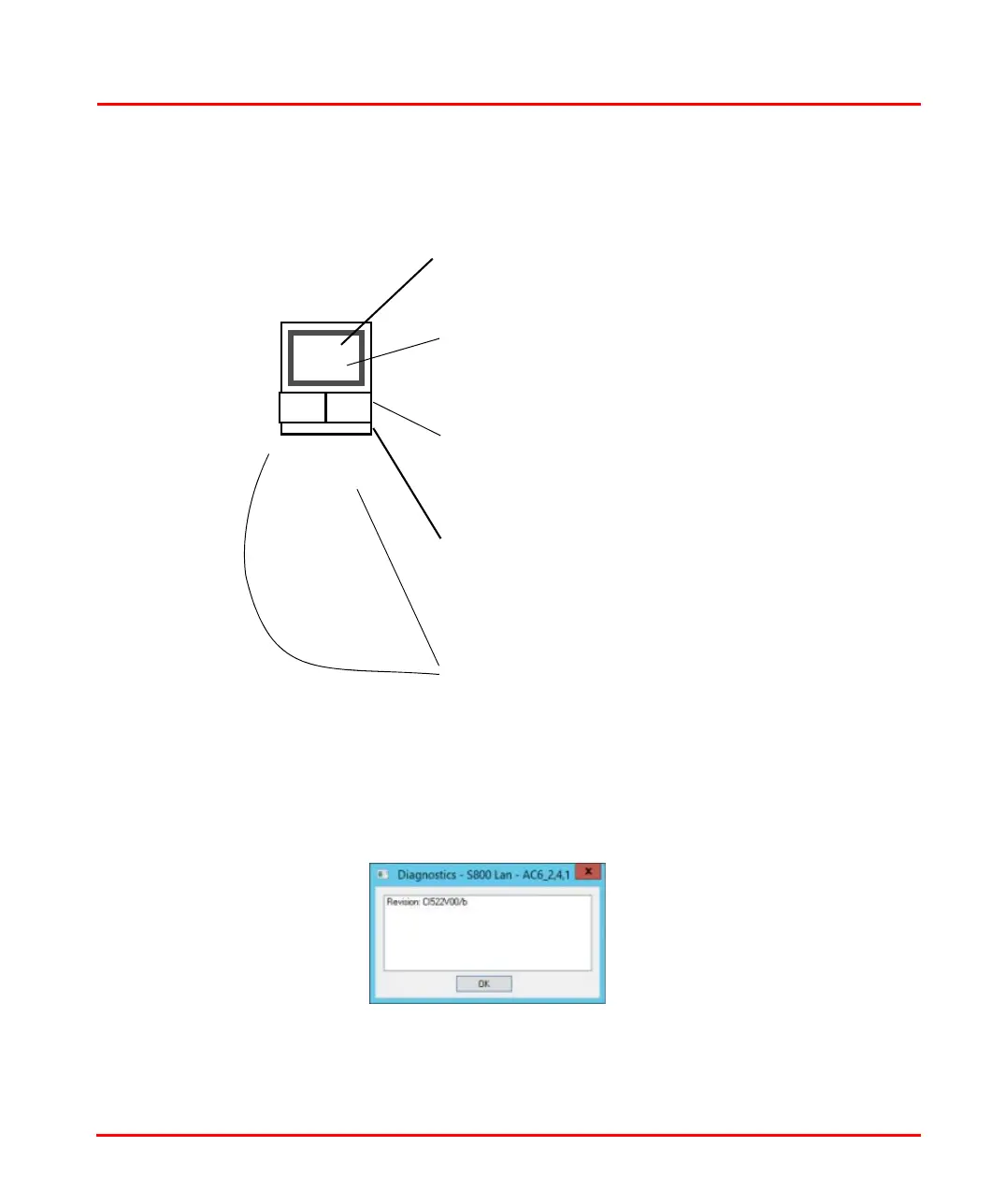

Figure 68. CI520/CI522 Diagnostics Display
