S800 LAN Display Section 7 I/O Displays
150 3BUR002418-600 A
AF100 INTERFACE - X Menu
State User can change state to:
RESTART re-initializes the lan,
DEACTIVATE forces all data qualities to ‘bad’,
ACTIVATE sets data qualities based on the active status.
SWITCHOVER switches to a backup interface if present.
RPT Faults User can select to change reporting method: Flash Notify, Silent
No
tify or No Notify.
Get
Dia
gnostics
Select this to get the diagnostics dialog, Figure 68.
Each AF100 Interface status area contains an AF 100 INTERFACE - X menu
button. When the AF100 INTERFACE - x button is selected, a menu is displayed
with the items shown in Figure 67 and as explained below.
S800 Station Detail
In the main section of the display, a detail window shows specific information about
each I/O Station. The right scroll bar is used to view other stations on the LAN. The
display is arranged in a 10 by 8 grid for all stations (1 - 80). Stations not configured
are not shown. Station 80 being in the lower right corner can be seen by scrolling the
window to that area of the grid. For each I/O Station, information is displayed as
described below.

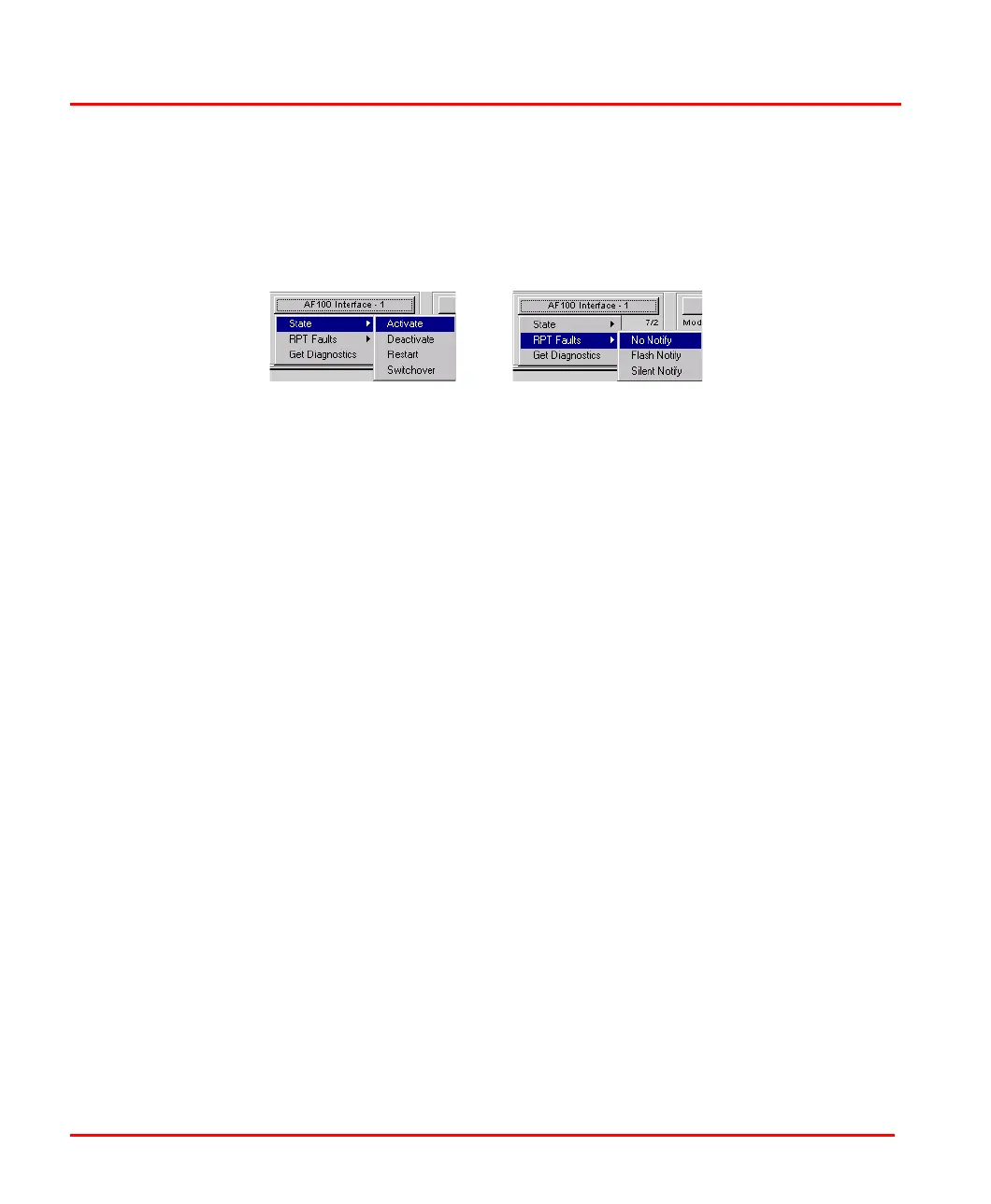

Figure 67. AF 100 INTERFACE - X menus
