Appendix C – Homing methods
464
Homing methods 15 and 16
Reserved
1 If the state of the home switch is 1 (par. 62.04 HOME SWITCH TRIG): Start in the negative (left)
direction by the rising edge of the signal selected by par. 62.03 HOMING START with homing
speed 1, par. 62.07 HOMING SPEEDREF1.
2 Change to homing speed 2, par. 62.08 HOMING SPEEDREF2, by the falling edge of the home
switch signal selected by par. 62.04 HOME SWITCH TRIG.
3 Stop by the next index pulse.
1
2
3

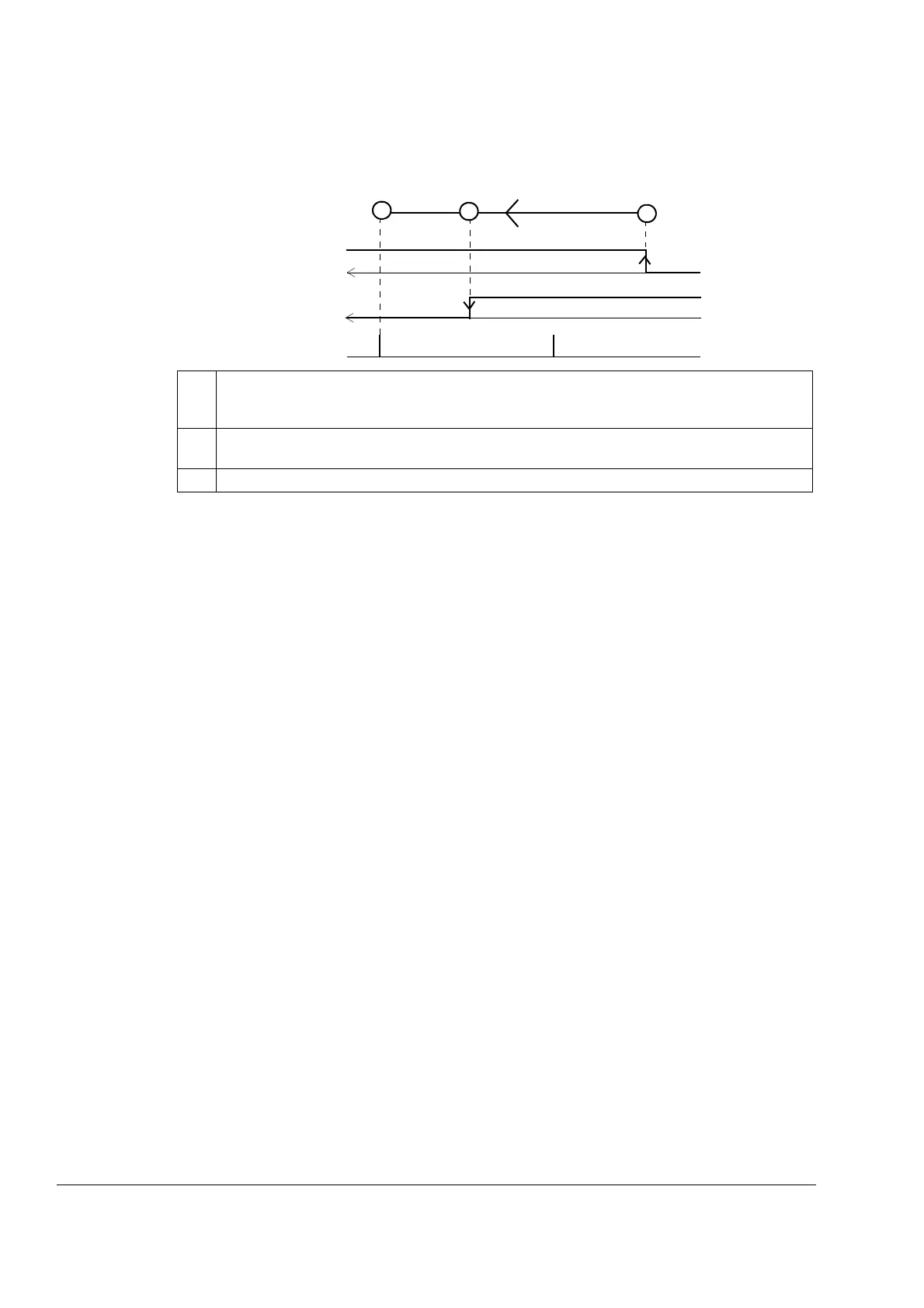

Homing method 14
Homing start (par. 62.03)
Index pulse
Home switch (par. 62.04)
