11: CFM

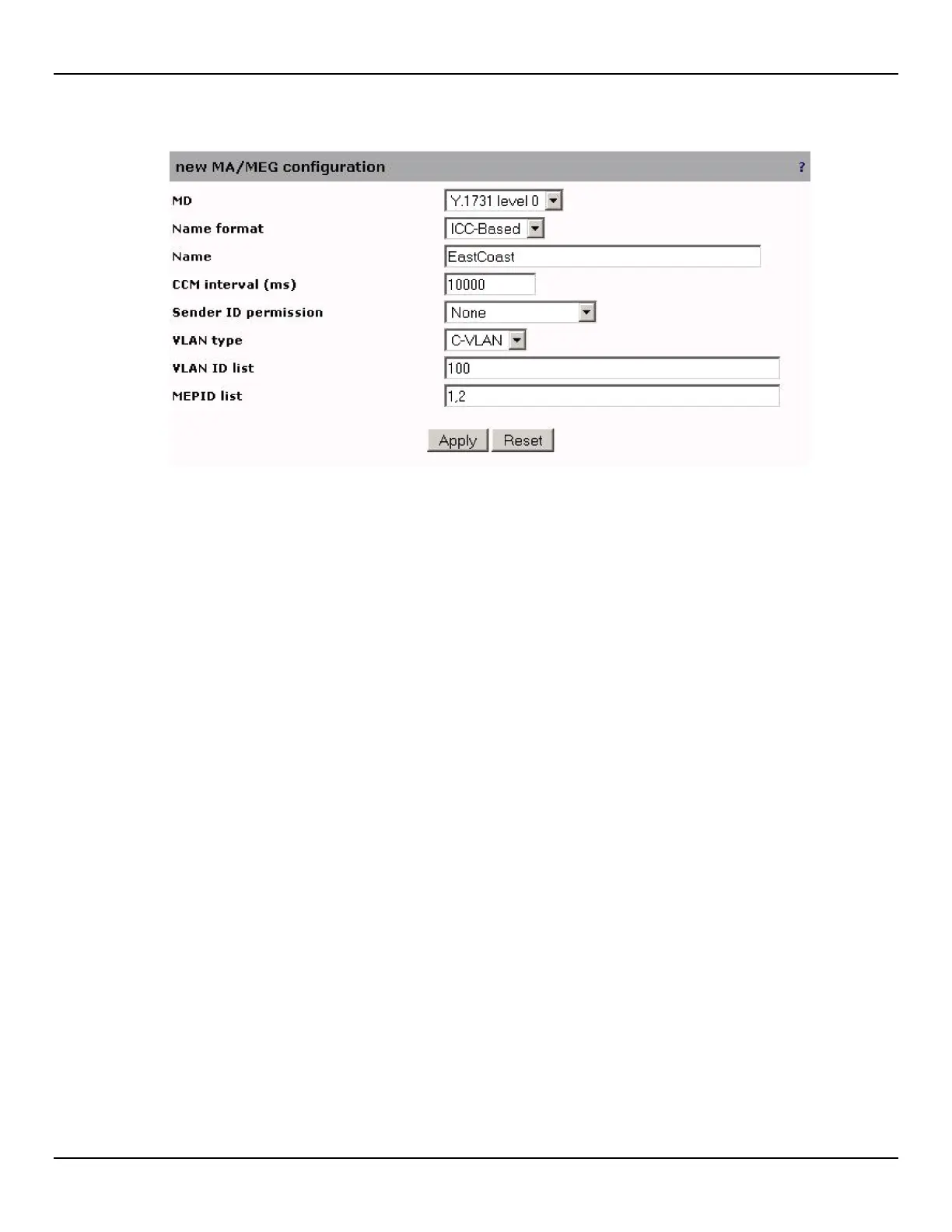

z The new MA/MEG configuration window.
z MD: There are eight pseudo MDs defined by default, one for each level, that are named "Y.1731 level 0" to
"Y.1731 level 7". These MDs exist only to simplify the integration of Y.1731's MEGs with the CFM MIB which
requires MDs. Y.1731 uses MEG-IDs which are MAIDs without MD name. User interfaces show pseudo MD's
name, but this name is not included in Y.1731 CCM's MEG-ID. It is not possible to delete pseudo MDs
z Name format: The maintenance association (or MEG) name format. The valid values are:
z PrimaryVid: Primary VLAN ID.
z String: RFC2579 DisplayString.
z Int16: 2-octet integer/big endian.
z 2865VpnId: RFC 2685 VPN ID.
z ICC-Based: ITU Carrier Code format (Y.1731).
z CCM interval: Interval in milliseconds at which the CCMs are sent.
z Sender ID permission: Indicates what, if anything is to be included in the Sender ID TLV transmitted in CCMs,
LBMs, LTMs, and LTRs. The valid values are:
z None : None.
z Chassis : Chassis ID and chassis subtype.
z Manage : Management Address.
z Chassis & manage : Chassis ID, subtype and Mgmt Address.
z Defer : Determined by domain configuration or system configuration.
z VLAN type: Specify the VLAN type associated with this Maintenance association or MEG. If the value, None, is
specified, the association is not attached to a VLAN and the content of the VLAN ID list is ignored.
z VLAN ID list: Set of VLANs associated with this Maintenance association or MEG. If the VLAN ID list is left empty,
the association is not attached to a VLAN and the VLAN type is set to None implicitly.
z MEP ID list: Set of MEPs associated with this Maintenance association or MEG.
