Agilent 6890 Gas Chromatograph Service Manual
Programmed Temperature Vaporization Inlet (PTV) 240
Replacement procedures

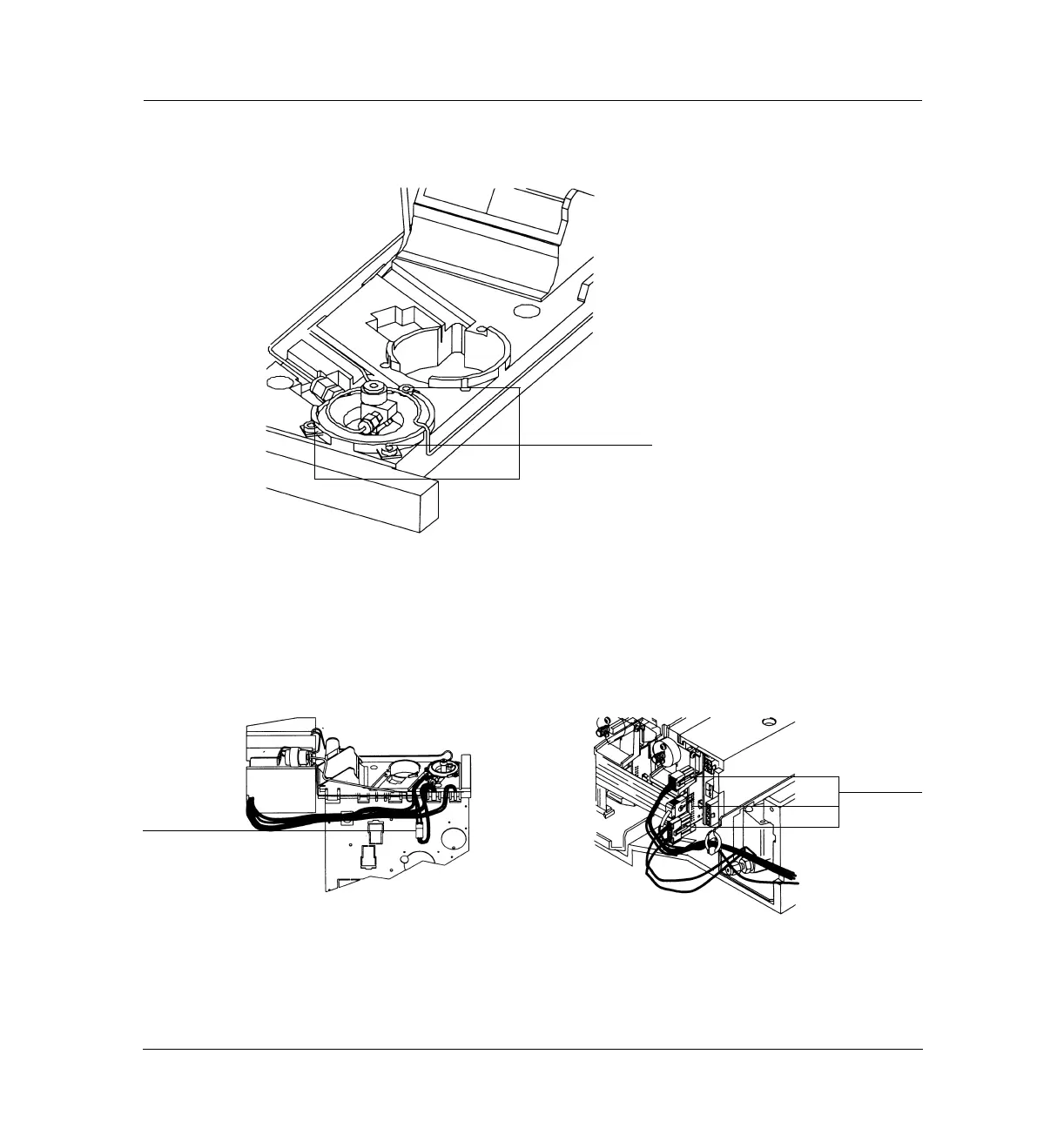

Figure 240-8 Removing the PTV inlet
6. Remove the heater connector from the side panel.
Figure 240-9 PTV electrical connectors
Loosen screws
Disconnect cable
Remove
connector
s
