Agilent Technologies 6890 Series - Messages

320 Nitrogen Phosphorus Detector (NPD)
Replacement procedures
14 of 32
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
2. Detach the bead drive cable by twisting the metal connector and pulling
it out.

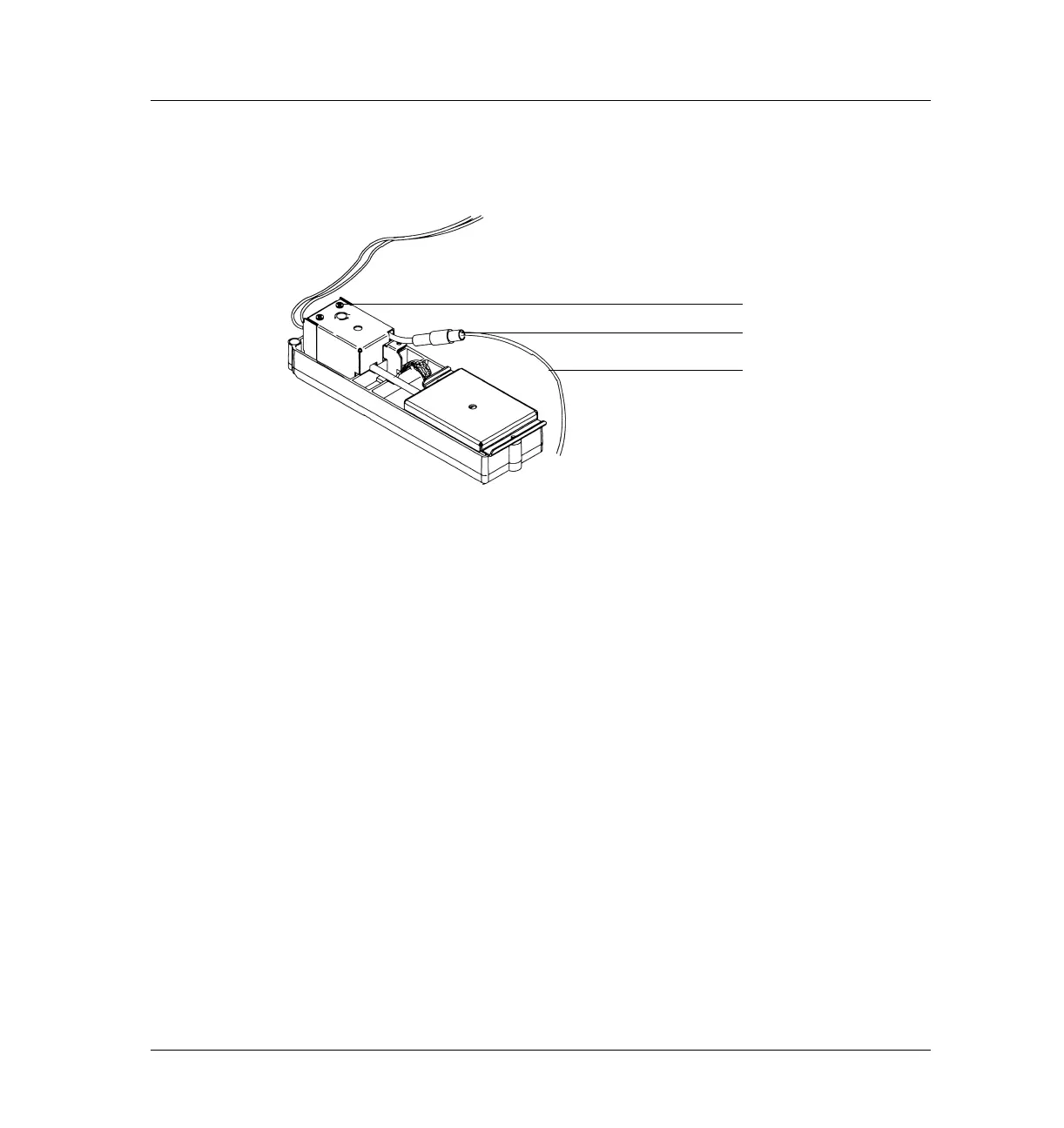

Figure 320-6 NPD detector cable and tower cover
3. Lift up the hinged metal cover.
Plumbing to manifold
To de t ect or
card
Detector tower cover
Metal connector
Bead drive cable
