430 Power/Electronics Replacement
Replacing the transformer—GC serial number < 10225
18 of 26
Jun 2001
Mainframe
Agilent 6890 Gas Chromatograph Service Manual

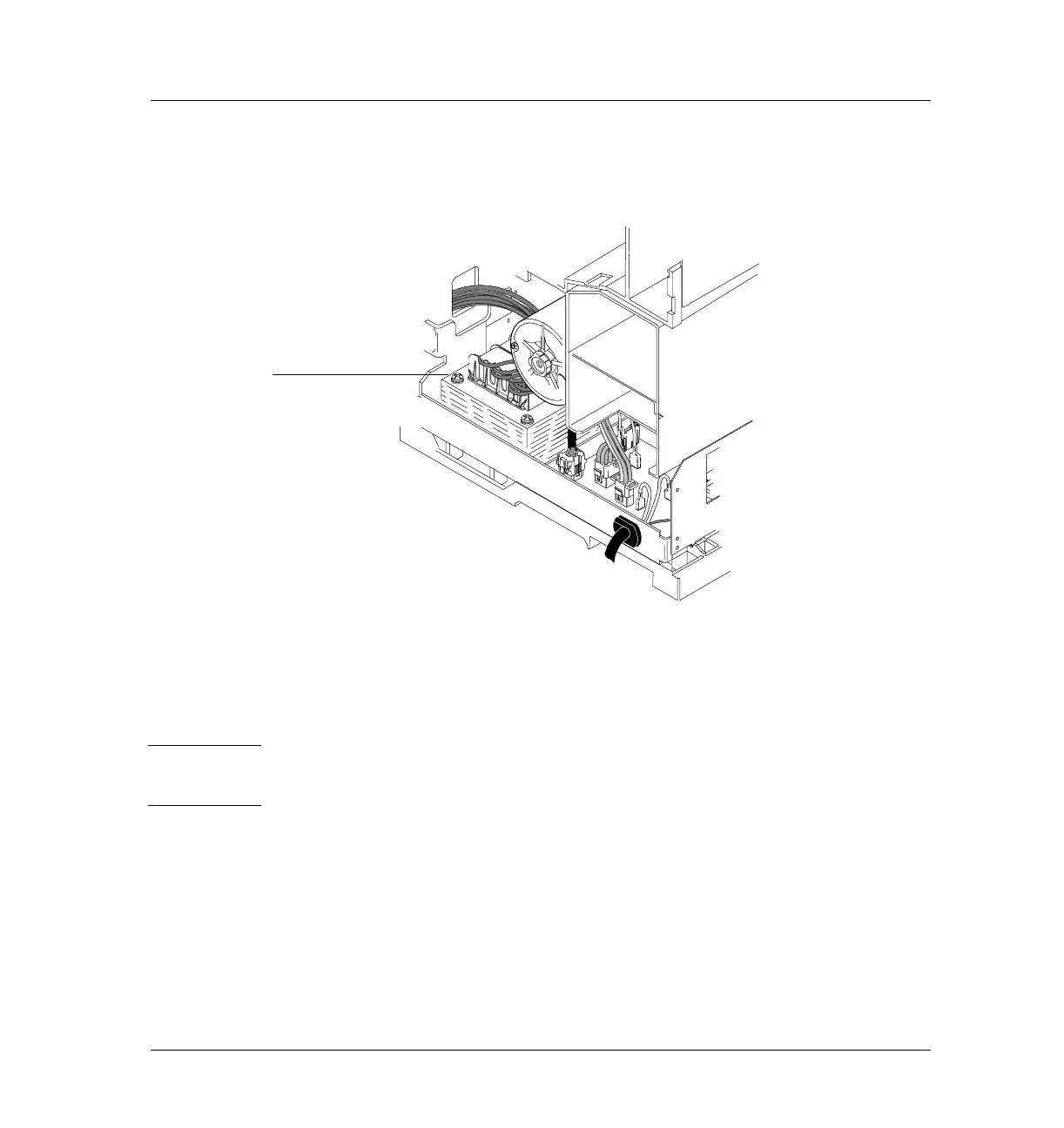

Figure 430-12 Removing the transformer
4. Remove the four No. 2 Pozidriv screws from the top corners of the
transformer.
WARNING The transformer is very heavy! Make sure you have a firm grip on the
transformer before lifting it out of the instrument.
5. Lift out the transformer.
Remove mounting
screws (four corners)
