Agilent Technologies 6890 Series Service Manual

1120 Valve Box
Installing the valve box
2 of 10
Jun 2001
Valves
Agilent 6890 Gas Chromatograph Service Manual
2. Screw the aluminum standoffs into the valve box bottom plate using one
Torx T-20 screw for each standoff.

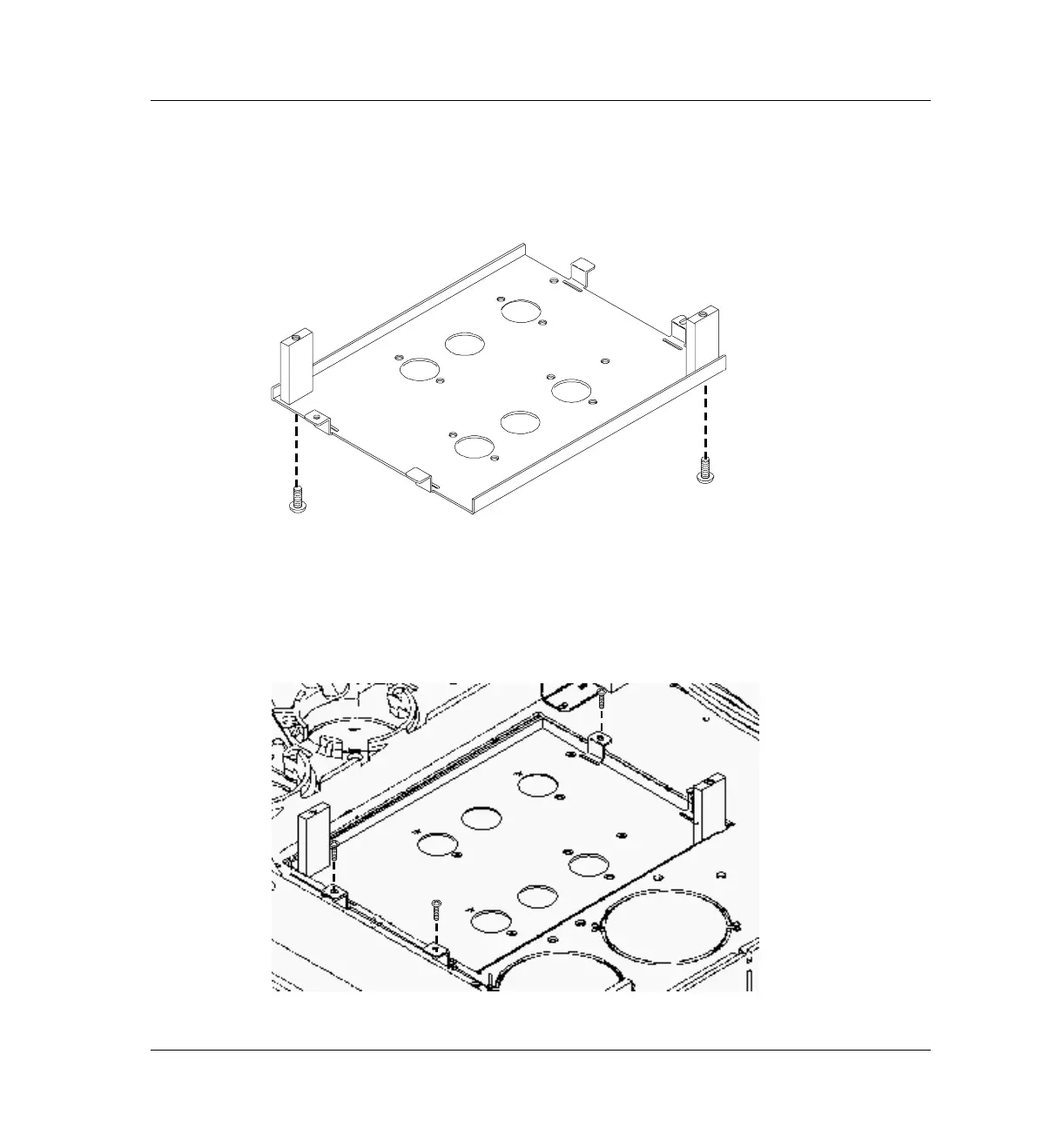

Figure 1120-2 Attaching the standoffs to the bottom plate
3. Screw the valve box bottom plate onto the top of the GC using three Torx
T-20 screws.
Figure 1120-3 Attaching the bottom plate to the 6890 GC
