1130 Actuators
Installing the actuators
2 of 12
Jun 2001
Valves
Agilent 6890 Gas Chromatograph Service Manual
3. Mount an actuator over each valve installed using two Torx T-20 screws.

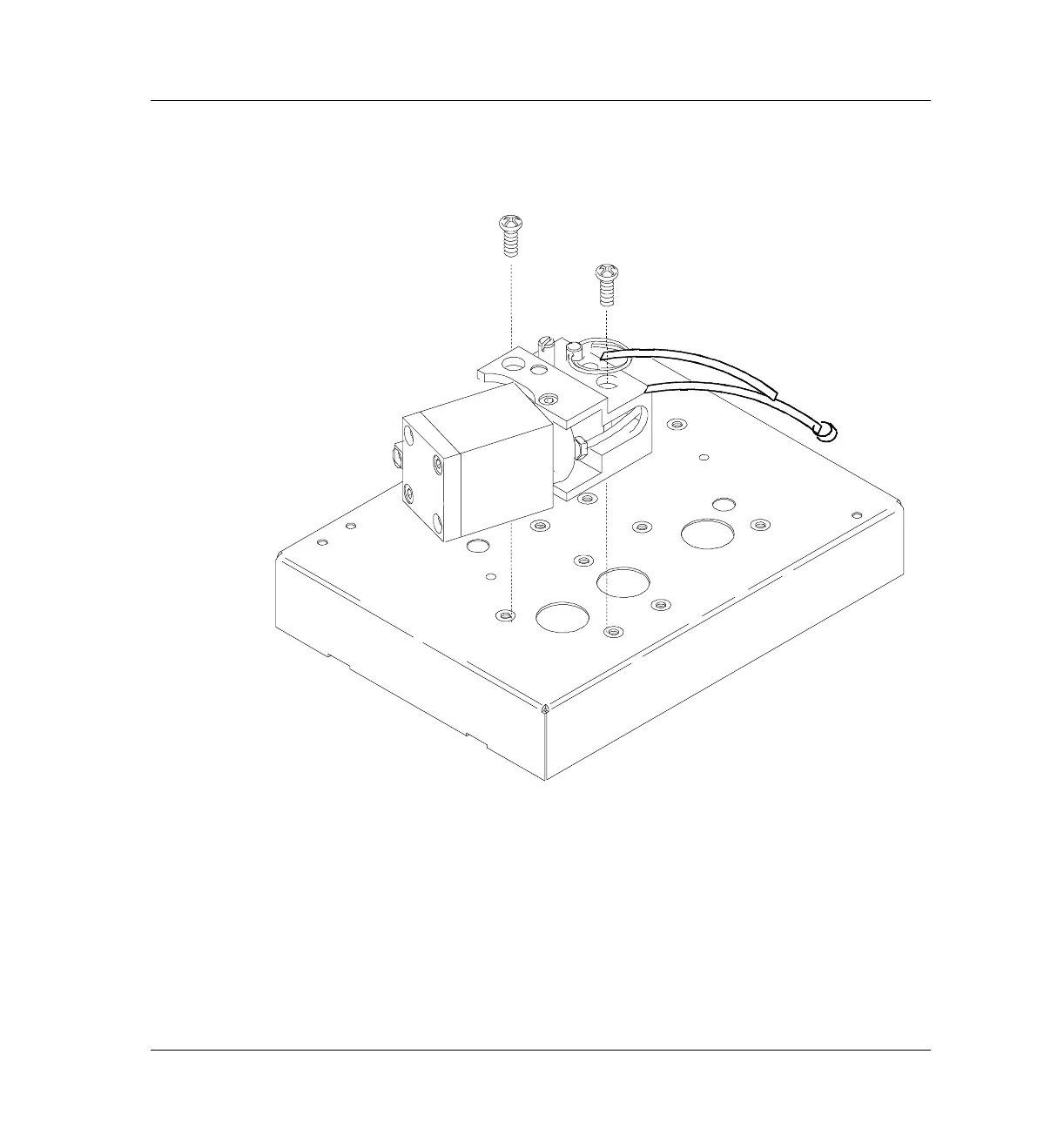

Figure 1130-2 Mounting the actuator on the valve box
