Valves
Agilent 6890 Gas Chromatograph Service Manual

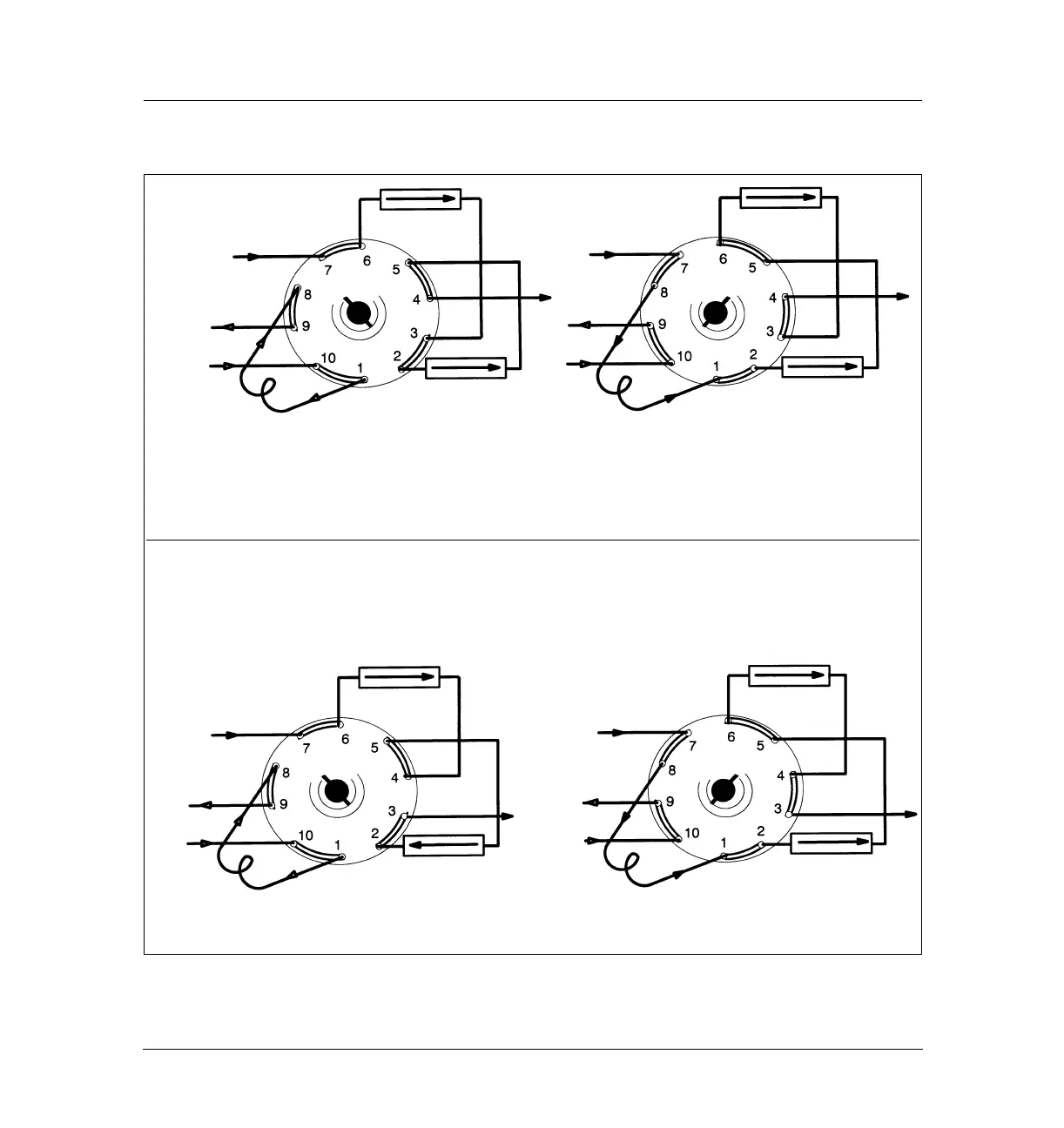

Typical Valve Configurations 1140
Column 2
Carrier
Out
IN
Sample
Loop
OFF ON
Column 1
Gas Sampling with Sequence Reverse, Option 804 or 834
Column2
Carrier
Out
In
Sample
Column 1
Detector
or
2nd Valve
ON
OFF
Gas Sampling with Sequence Reverse and Backflush of Column 1, Option 805 or 835
