Electrical
Agilent 6890 Gas Chromatograph Service Manual
Main Board, 6890N 1225
Fuses
Fuses
There are three replaceable fuses:

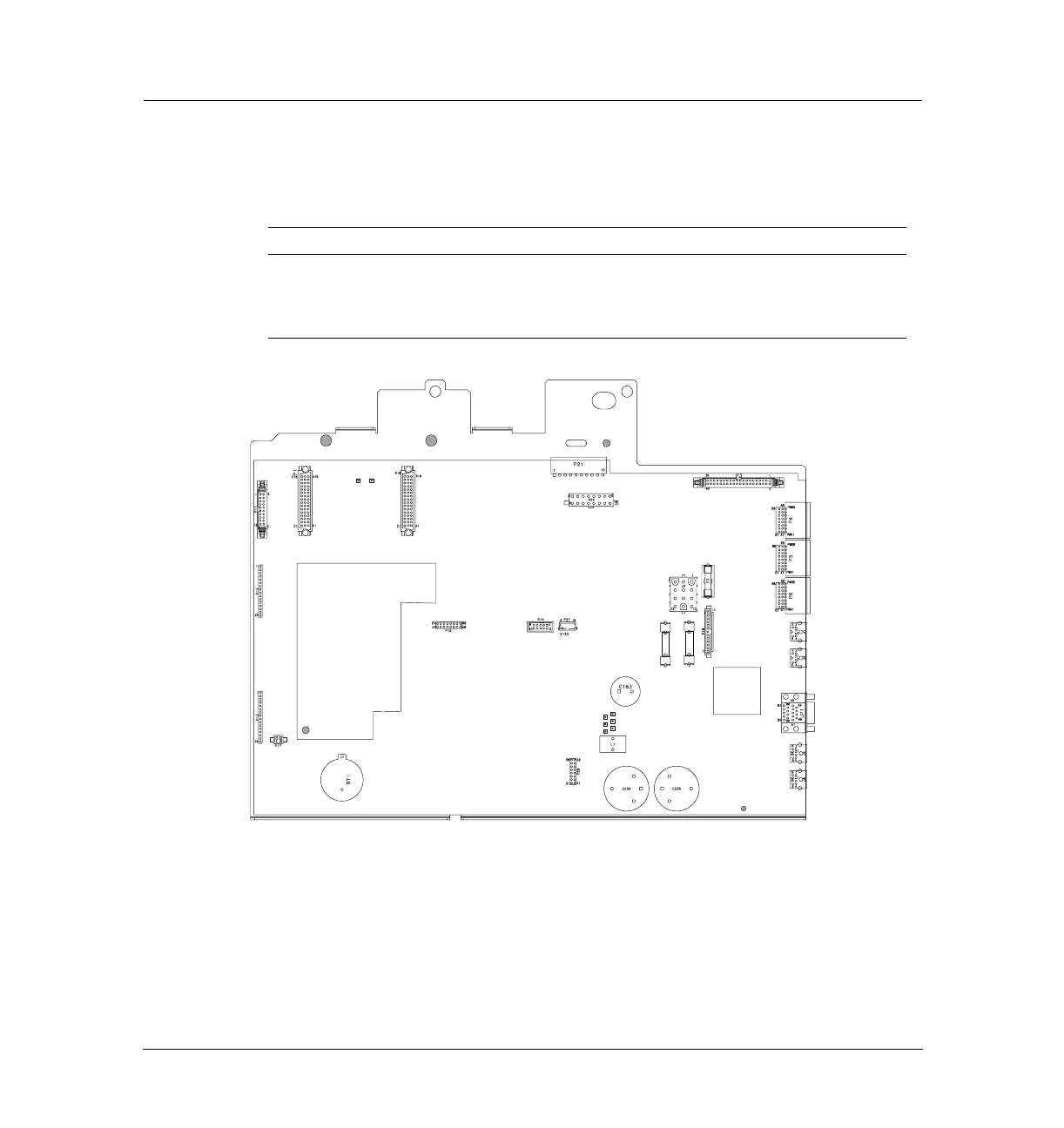

Figure 1225-3 Fuse locations, G1530-90200
I.D. Description System Power rating Part no.
F3 Ceramic Autosampler 5A/250V 2110-0709
F4 Glass/Type F ±24 Volt 8A/250 V 2110-0036
F5 Glass/Type F ±24 Volt 8A/250 V 2110-0036
-24V
-15V
GND
+24V
+15V
+5V
-10V REF
GND
P2
F4 F5
F3
F4
F5
