Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Valves 1350
Nickel catalyst assembly

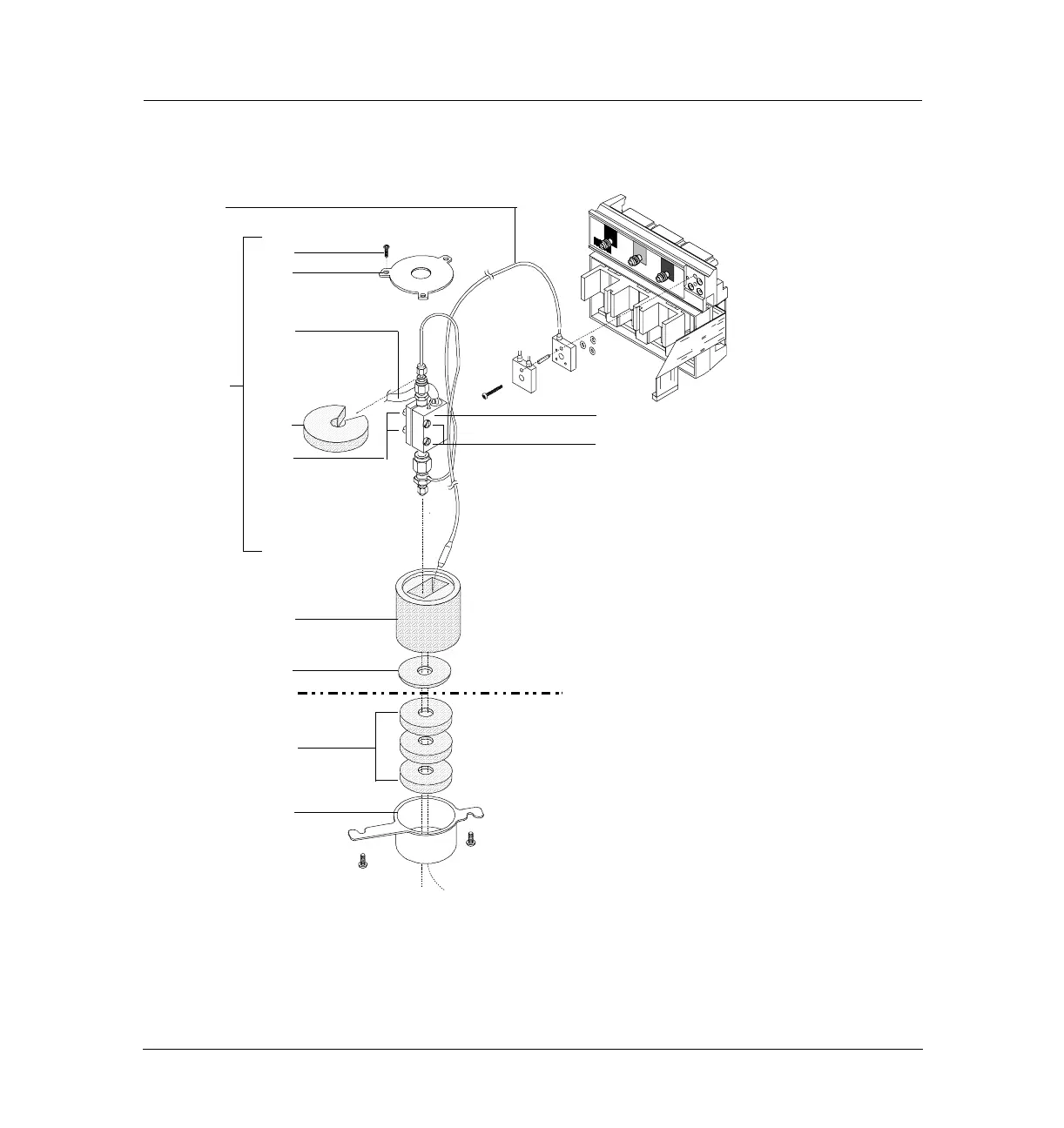

Figure 1350-6 Nickel catalyst assembly
4
1
7
8
3
9
6
10
11
12
13
5
2
1
Top of oven
Inside of oven
