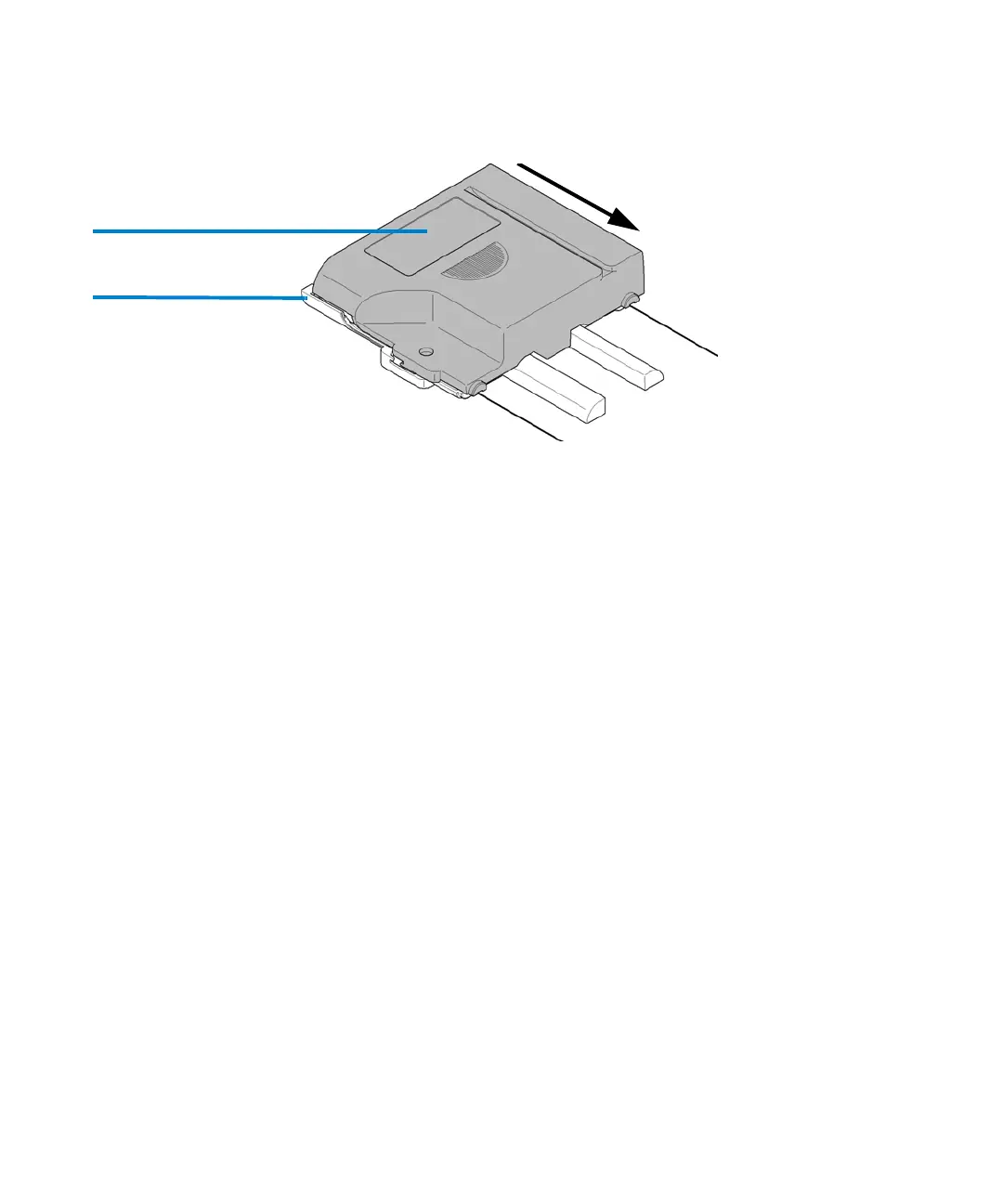

Figure 32 Opening the cassette lock
Installing the Capillary
1 Hold the capillary at the alignment interface.
2 Insert the alignment interface into the alignment interface holder on the
cassette. Make sure the flat side of the alignment interface is at the outer
edge of the cassette, see Figure 33 on page 130.
3 Make sure the capillary slides into the capillary guiding slit and a guiding
hook above the area of the alignment interface.
4 Wind the capillary around the reel in the center of the capillary cassette.
The pins surrounding the reel have grooves to secure the capillary.
Cassette front
Cassette back
