Agilent 7100 Capillary Electrophoresis System User Manual 69
LAN Configuration 4
Link Configuration Selection
Link Configuration Selection
The LAN interface supports 10 or 100 Mbps operation in full or half-duplex
modes. In most cases, full-duplex is supported when the connecting network
device - such as a network switch or hub - supports IEEE 802.3u
auto-negotiation specifications.
When connecting to network devices that do not support auto-negotiation, the
LAN interface will configure itself for 10 or 100-Mbps half-duplex operation.
For example, when connected to a non-negotiating 10-Mbps hub, the LAN
interface will be automatically set to operate at 10-Mbps half-duplex.
If the CE instrument is not able to connect to the network through
auto-negotiation, you can manually set the link operating mode using link
configuration switches on the CE instrument.

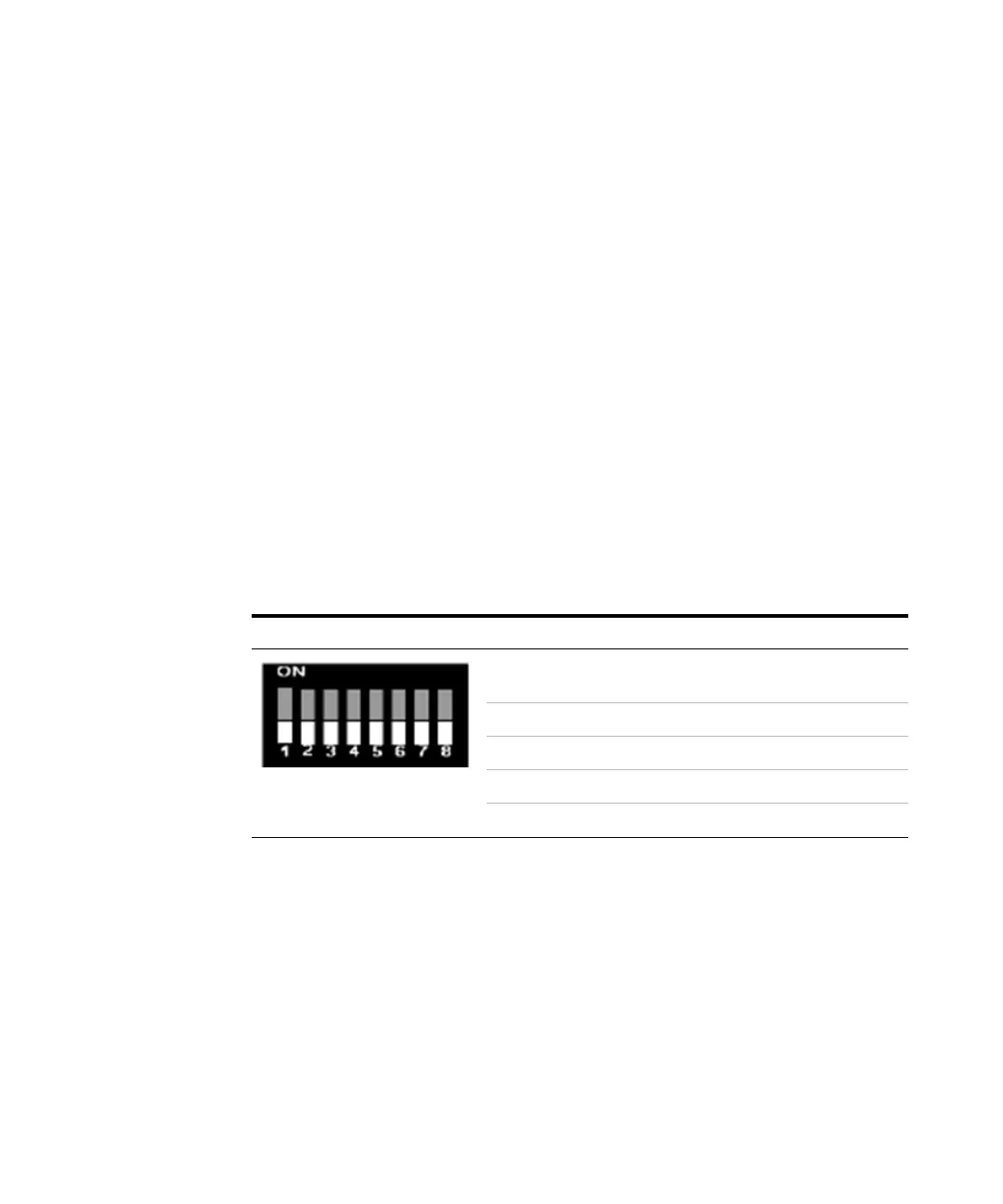

Table 20 Link configuration switches
SW3 SW4 SW5 Link configuration
OFF - - Speed and duplex mode determined by
auto-negotiation
ON OFF OFF Manually set to 10 Mbps, half-duplex
ON OFF ON Manually set to 10 Mbps, full-duplex
ON ON OFF Manually set to 100 Mbps, half-duplex
ON ON ON Manually set to 100 Mbps, full-duplex
