Capillary Electrophoresis, Plus High Pressure CE+p
Outlet Lift Connection to the Tubing System
The outlet lift is not connected to the tubing and valve system of the
instrument by default. Please connect the respective PTFE tube provided in
your accessories kit. The tube is labeled with an "8" and has one open end and
one fitting.
To check whether this tubing is already installed, you should load a vial in the
outlet lifter from the CE diagram and locate the tube coming from the outlet
lift. Figure 36 shows an outlet lift with mounted tubing.

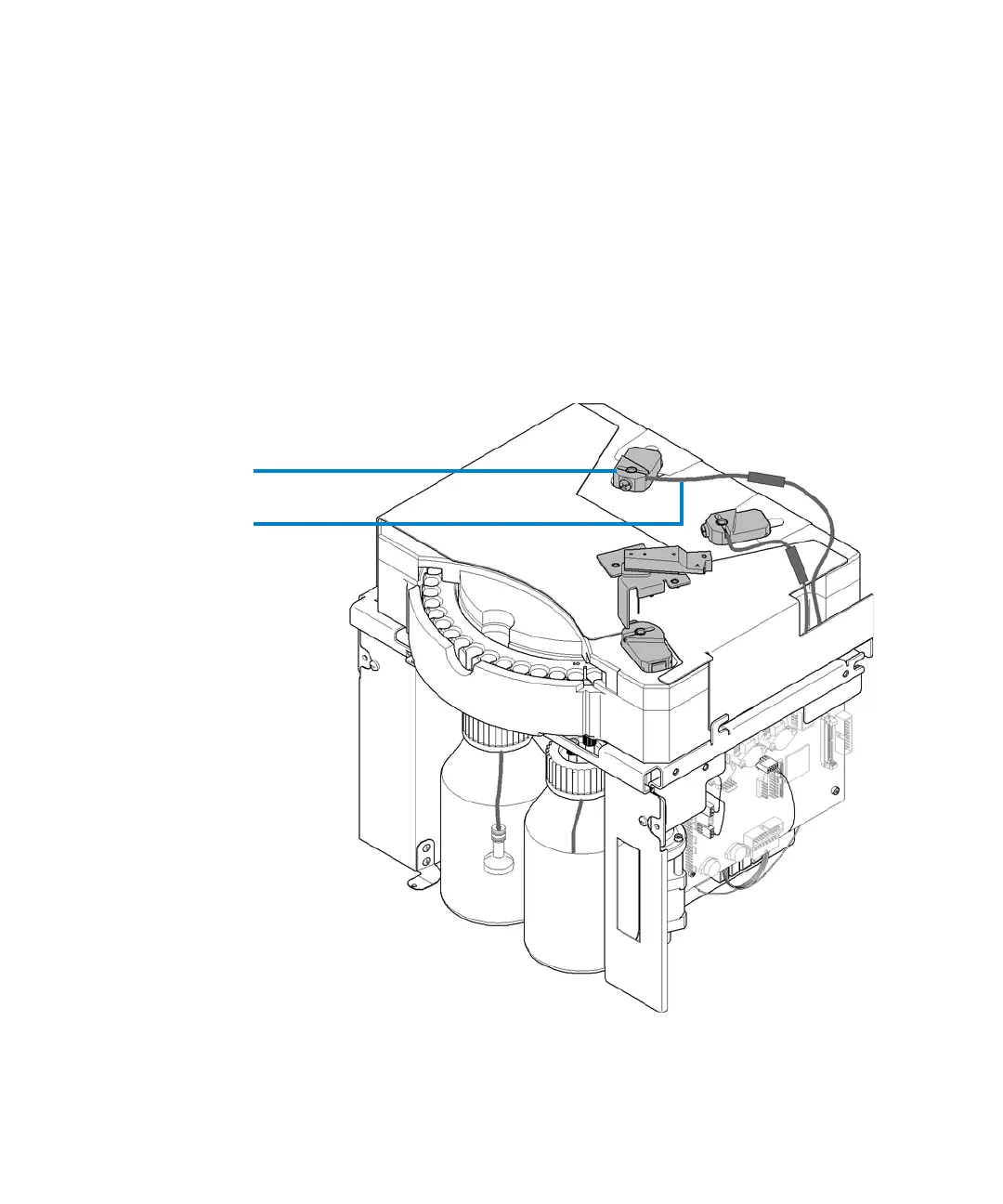

Figure 36 Outlet lift with mounted tubing for high pressure application
Outlet lift
Tube "8"
connected
