Agilent Technologies 7100 - Accessing the Electrodes

Agilent 7100 Capillary Electrophoresis System User Manual 199
Maintenance 8
Cleaning the Electrodes, Pre-punchers and Insulation Plate
Accessing the Electrodes
1 Use a screwdriver to unscrew the two metal screws holding the insulation
plate.
2 Use a screwdriver to remove the screw that secures the blue ground cable.

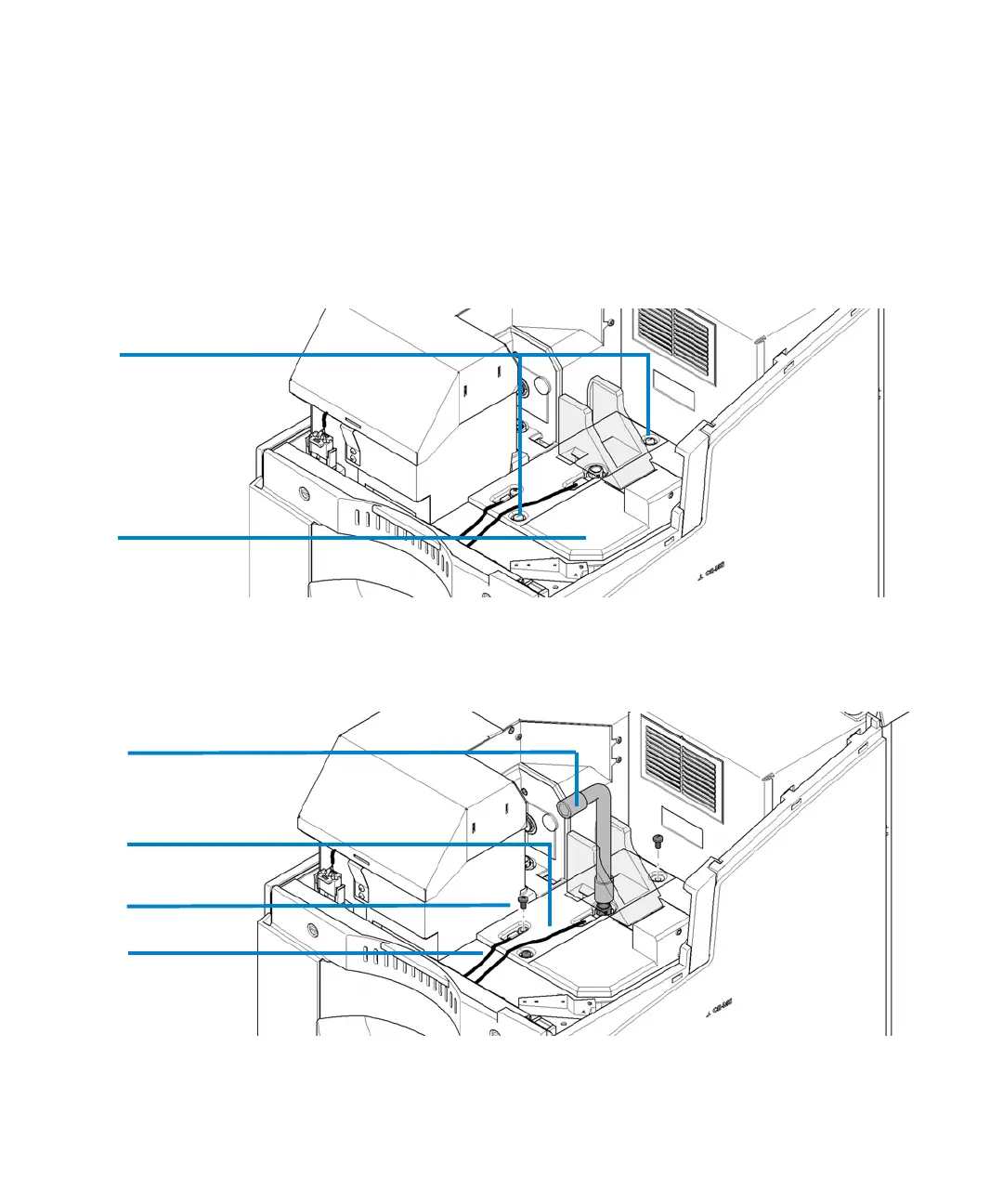

Figure 58 Insulation plate
3 Use the 12 mm hexagonal socket screwdriver to unscrew the inlet electrode.
Figure 59 Removing the ground cable and the inlet electrode cable
Metal screws
Insulation plate
12 mm hexagonal
High voltage cable, red
Ground cable screw
Ground cable, blue
socket screwdriver
