180 Agilent 7100 Capillary Electrophoresis System User Manual
7 Hardware Information
Diode Array Detector
DAD Control
In the Method and Run Control of the ChemStation select Instrument >
More DAD / Control... > Control to open the DAD control dialog (Figure 55 on
page 180).

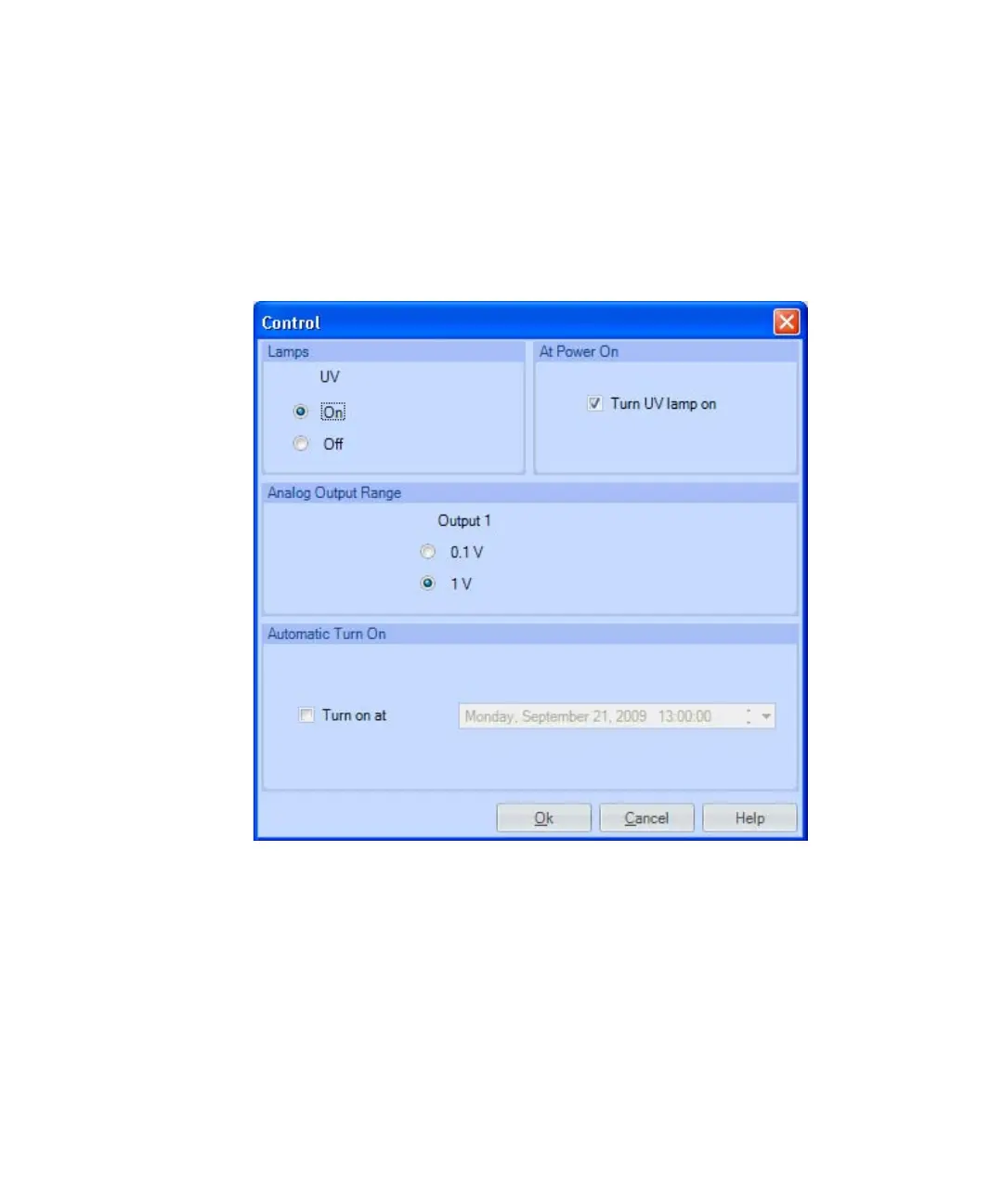

Figure 55 DAD control dialog
You may switch the UV lamp on or off in the Lamps dialog. Changes are applied
only after clicking OK. A checkmark in the section At Power On allows you to
immediately turn on the deuterium lamp when the instrument is switched on.
In the Automatic Turn On field you can also set a date and time when the lamps
are switched on automatically. The instrument must be kept powered on, for
example overnight, to use this feature.
