210 Agilent 7100 Capillary Electrophoresis System User Manual
8Maintenance
Cleaning the Electrodes, Pre-punchers and Insulation Plate
Reinstalling the Electrodes and the Insulation Plate
1 Reinstall one electrode in the outlet electrode position on the insulation
plate.
2 Thread the electrode into the outlet position on the insulation plate by hand
first.
3 Tighten the electrode with the 12 mm hexagonal socket screwdriver.
Do not overtighten. Do not bend the electrodes.
4 Holding the insulation plate by the cassette holder, slide the insulation
plate under the detector (1.), then tilt it up into place (2.) and push it
completely to the left (3.).

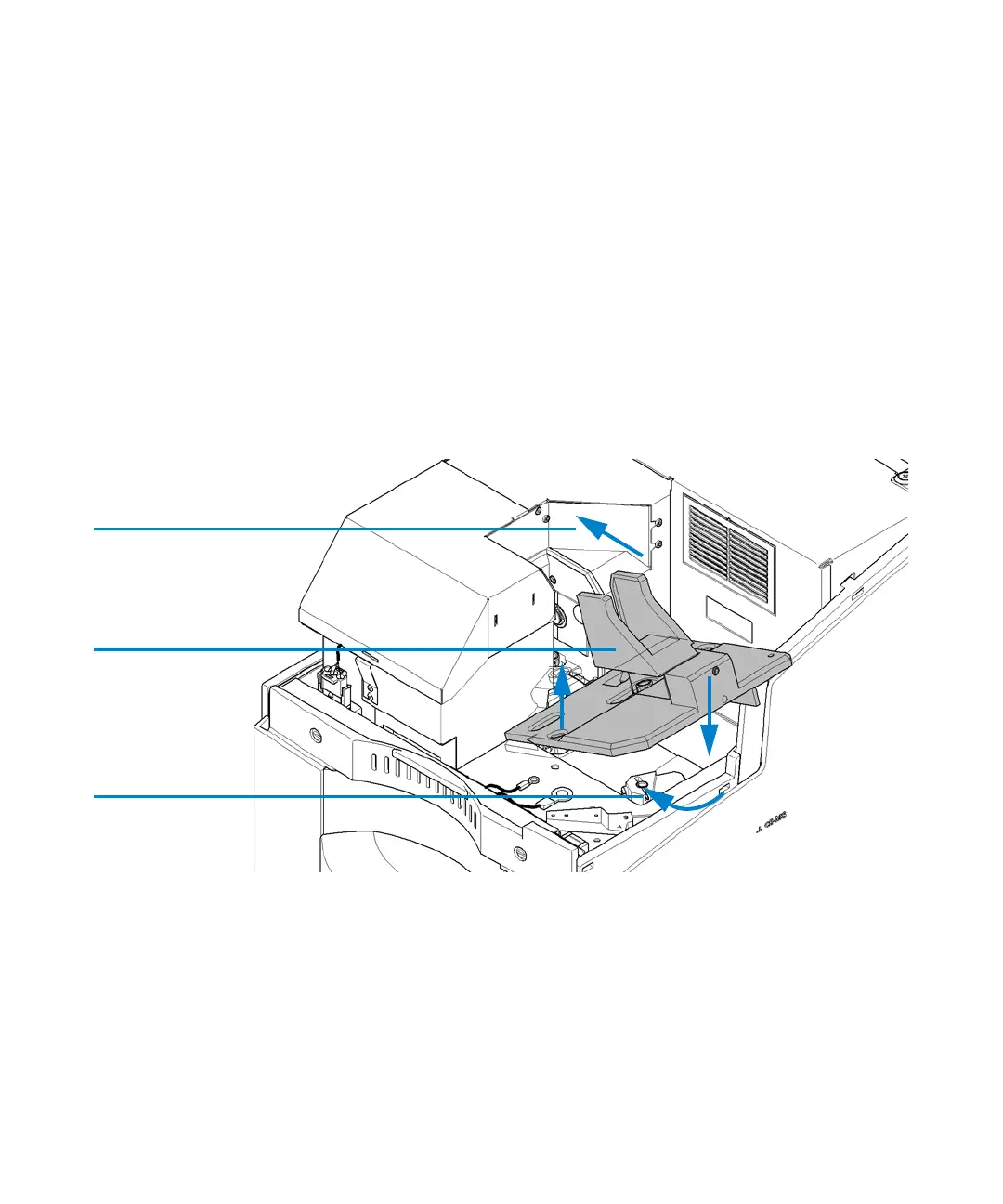

Figure 67 Installation of the insulation plate
3. Left shift
2. Rotation
1. Insert
