Cleaning the Electrodes, Pre-punchers and Insulation Plate
Accessing and Removing the Pre-punchers
Inlet and outlet lifts are located behind the sample tray in the rear of the liquid
handling module. The replenishment lift is located in the front on the right
side under the replenishment needle.

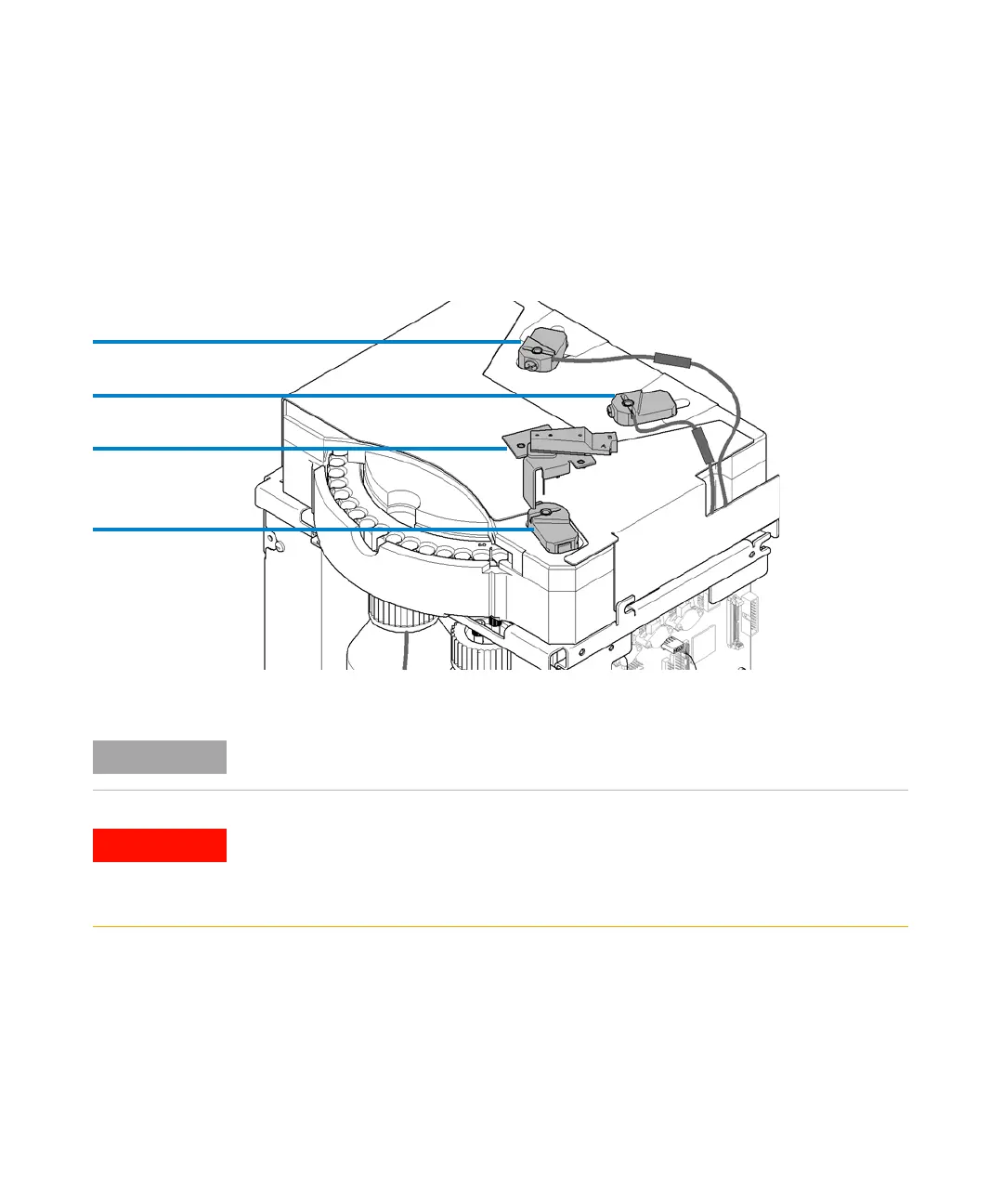

Figure 62 Inlet and outlet lifts, replenishment lift and replenishment needle
Outlet lift
Inlet lift
Replenishment needle
Replenishment lift
Do not touch or bend the replenishment needle when handling the pre-punchers.
Risk of injury due to sharp tips
The pre-punchers have very sharp tips.
• Be careful when touching the tips of the pre-punchers.
