200 Agilent 7100 Capillary Electrophoresis System User Manual
8Maintenance
Cleaning the Electrodes, Pre-punchers and Insulation Plate
4 Carefully lift the red high voltage wire. The inlet electrode will come out.
5 Slowly slide the insulation plate first to the right (1.), then tilt it up (2. and
3.) and finally take it out.
Make sure that the outlet electrode is not touching the foam of the tray
cooling or the lift station.

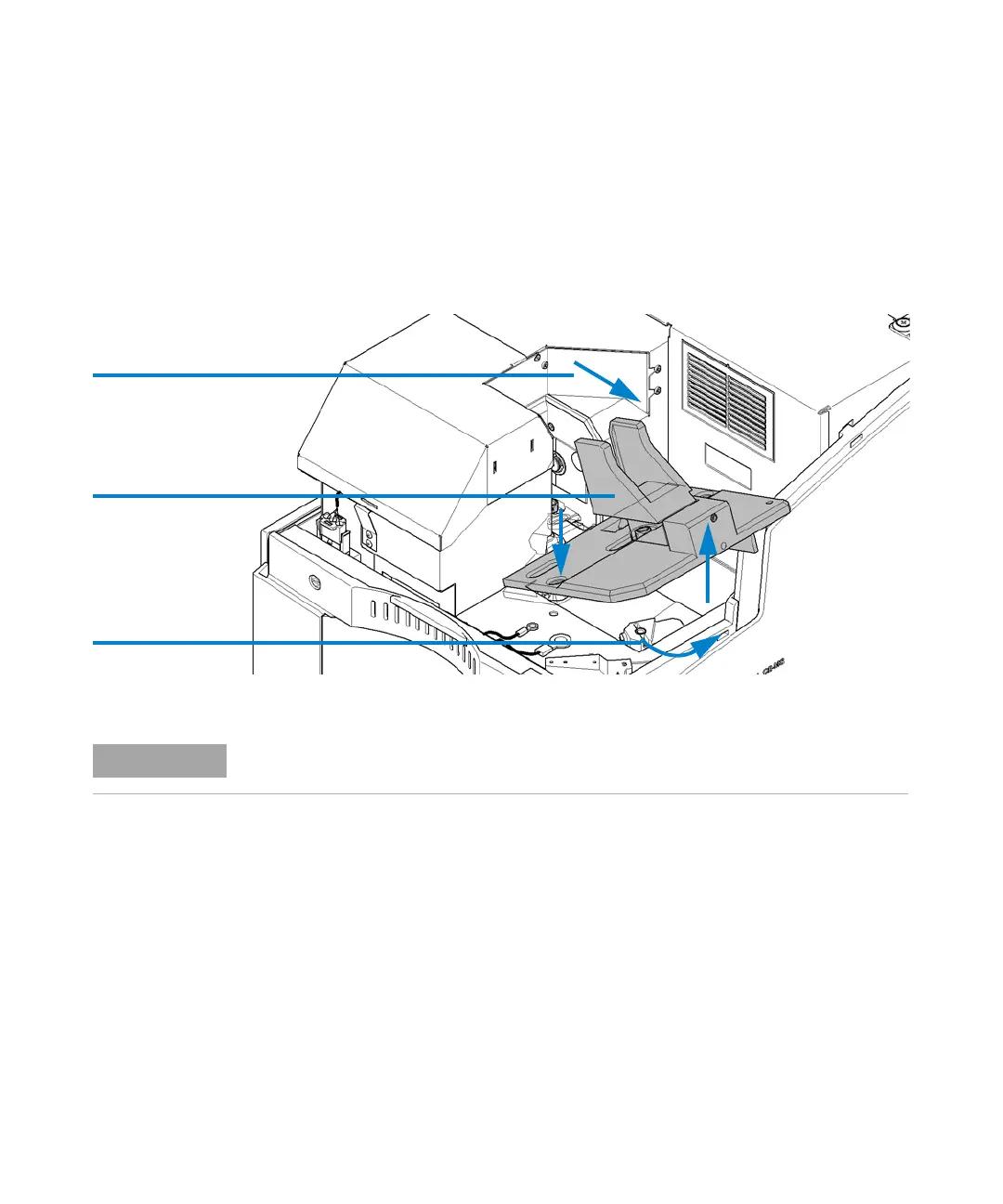

Figure 60 Removing the insulation plate
6 Remove the outlet electrode from the insulation plate using the 12 mm
hexagonal socket screwdriver.
1. Right shift
2. Rotation
3. Take out
It is not possible to remove the outlet electrode without taking out the insulation plate.
