Agilent 7820 GC Service

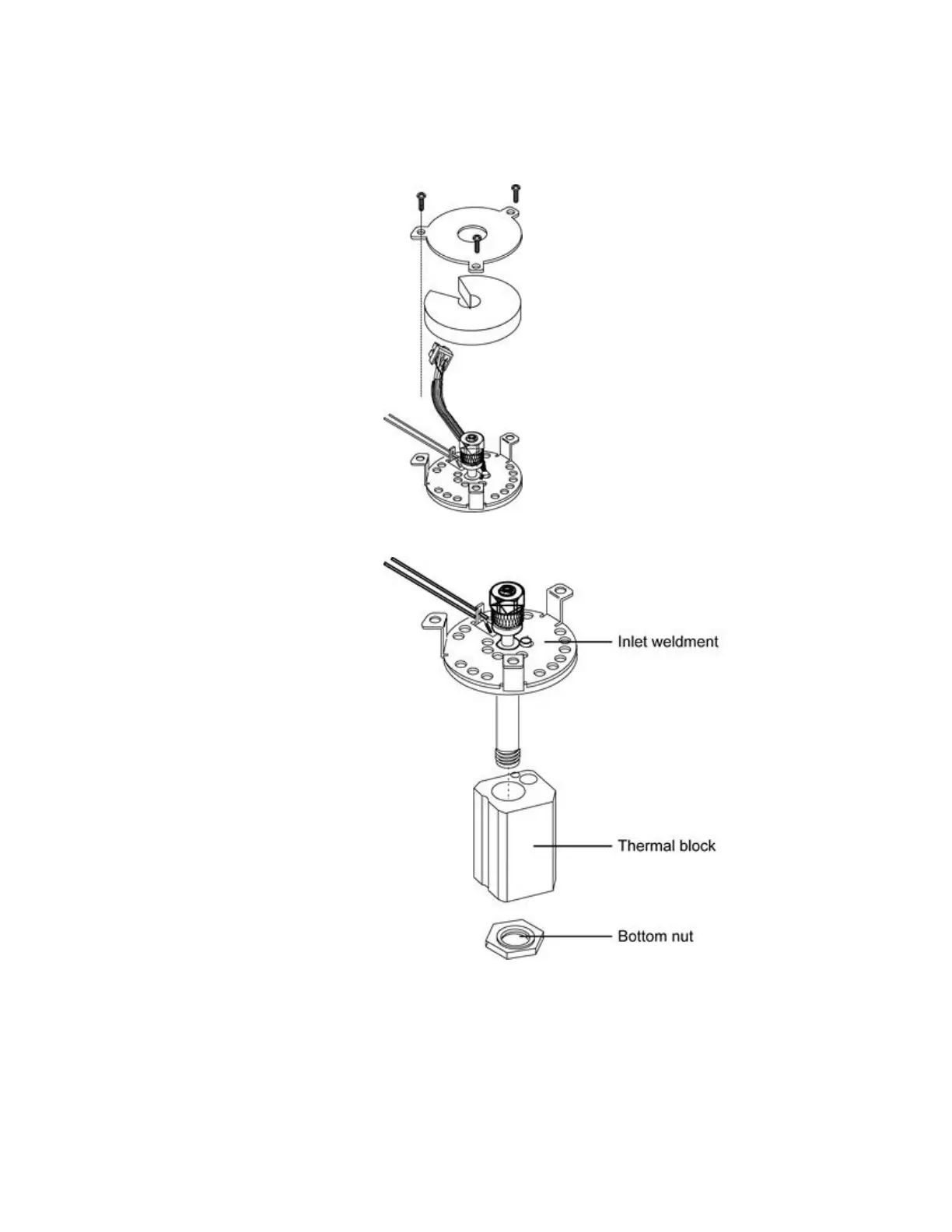

With the inlet removed:

1 Remove the tubing nut and column adapter.

Remove the bottom nut holding the thermal block.

Slide the thermal block off the inlet weldment.

Carefully remove the heater and sensor from the thermal

(heater) block.
