Installing and setting up an Orbital Shaking Station
108
Bravo Platform User Guide
CAUTION
The Orbital Shaking Station can shift slightly when tightening. Ensure that the sides
of the Orbital Shaking Station are parallel to the sides of the adapter plate. If the
Orbital Shaking Station is rotated, it could cause the Bravo gripper to collide with the
accessory.
Connecting the Orbital Shaking Station
Connecting a station that uses the STC or MTC Controller
To connect a station that uses the Inheco STC or MTC Controller:
1 Connect the cable from the station to the Controller.
2 Connect the STC or MTC Controller to the computer using the provided USB cable.
Connecting a station that has its own control module
If the station that has its own control module, you connect the serial cable from the
speed control (on the power cord) to the serial port on the Bravo computer, as
described in the following procedure.
To connect an Orbital Shaking Station that has its own control module:

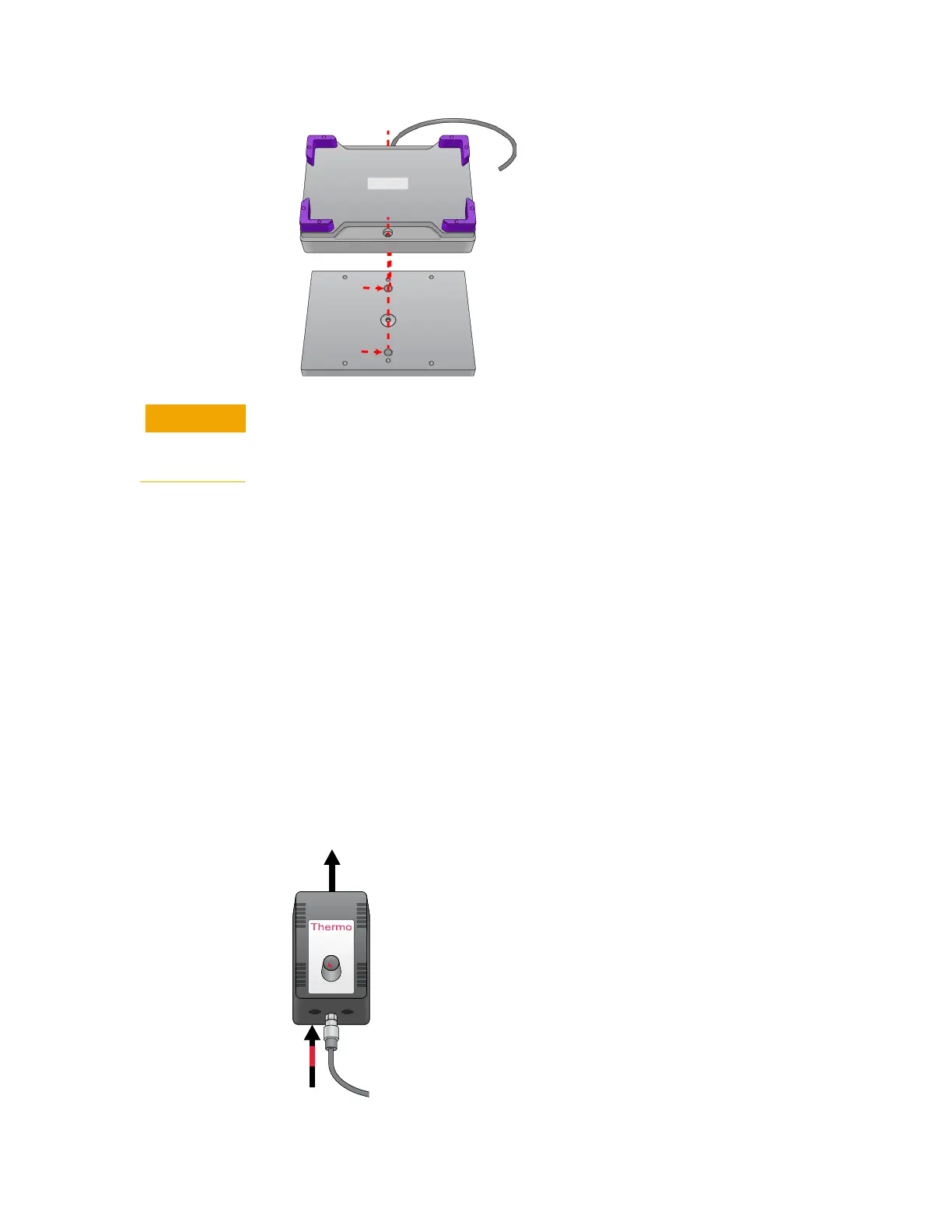

1 Route the Orbital Shaking Station cable off the deck and connect it to the control
module that contains the power plug. See following figure, item 1.
1
2
3
4
