2 Setting up the Bravo Platform
Opening Bravo Diagnostics
24 Bravo Platform User Guide
Opening Bravo Diagnostics
About this topic
To establish communication between the host computer and the device, you initialize
the device. You can initialize the device in the following ways:
• Diagnostics. To control the device using the Diagnostics software.
• VWorks window. To use VWorks to control the device, for example, to run a
protocol, you initialize the devices in the VWorks window.
This topic describes what happens during initialization.
Procedure
To open Diagnostics:
1 In the VWorks software window, ensure the correct device file is open.
To open a device file, choose File > Open, and then select the appropriate device file
(*.dev) in the Open dialog box.

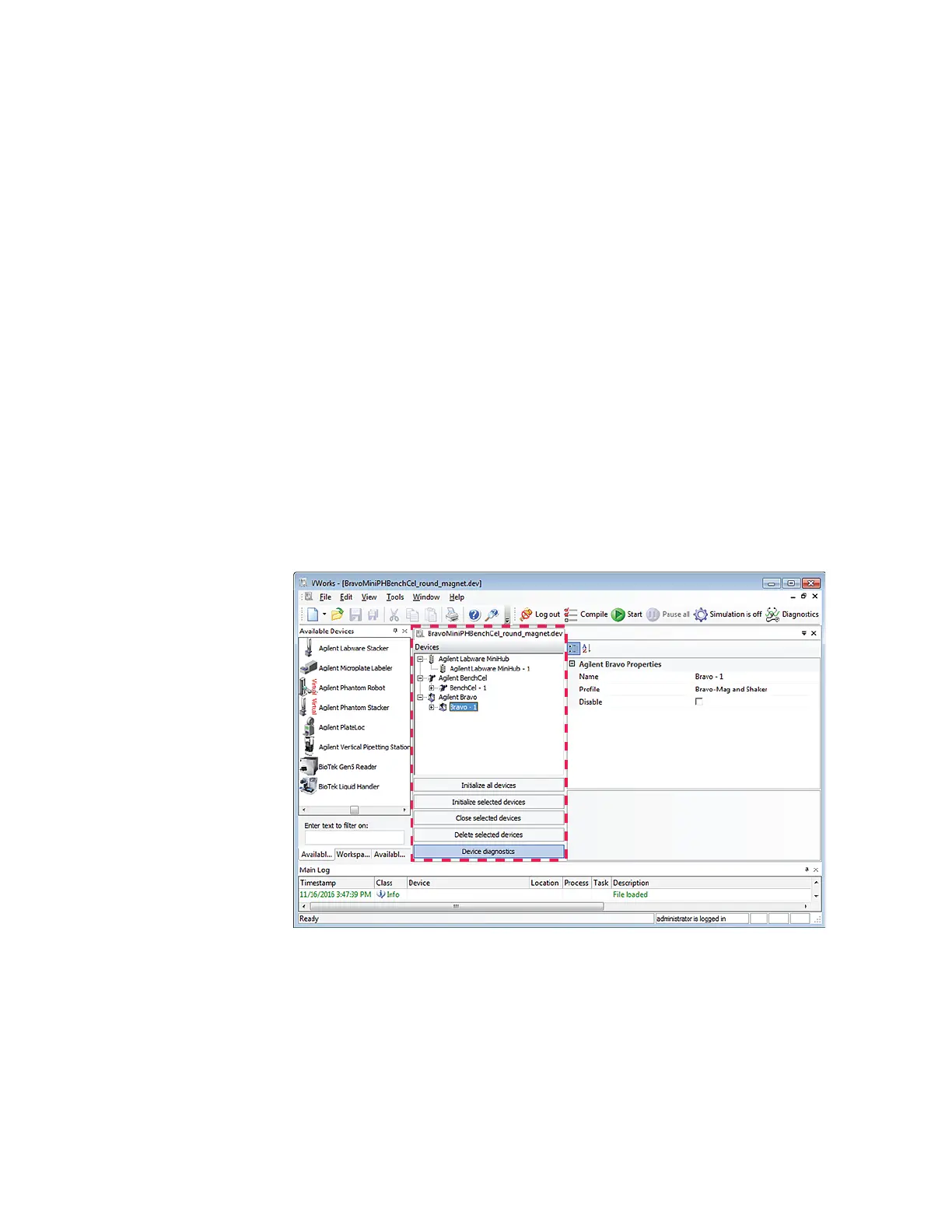

2 In the Devices area of the opened device file tab, highlight the device icon, and then
click Device diagnostics.
Alternatively, you can double-click the device icon.
The device’s diagnostics dialog box opens.
