Installing and configuring a Magnetic Bead Accessory
Bravo Platform User Guide
Installing and configuring a Magnetic Bead Accessory
About this topic
This topic describes how to set up the Magnetic Bead Accessory on a standard
platepad.

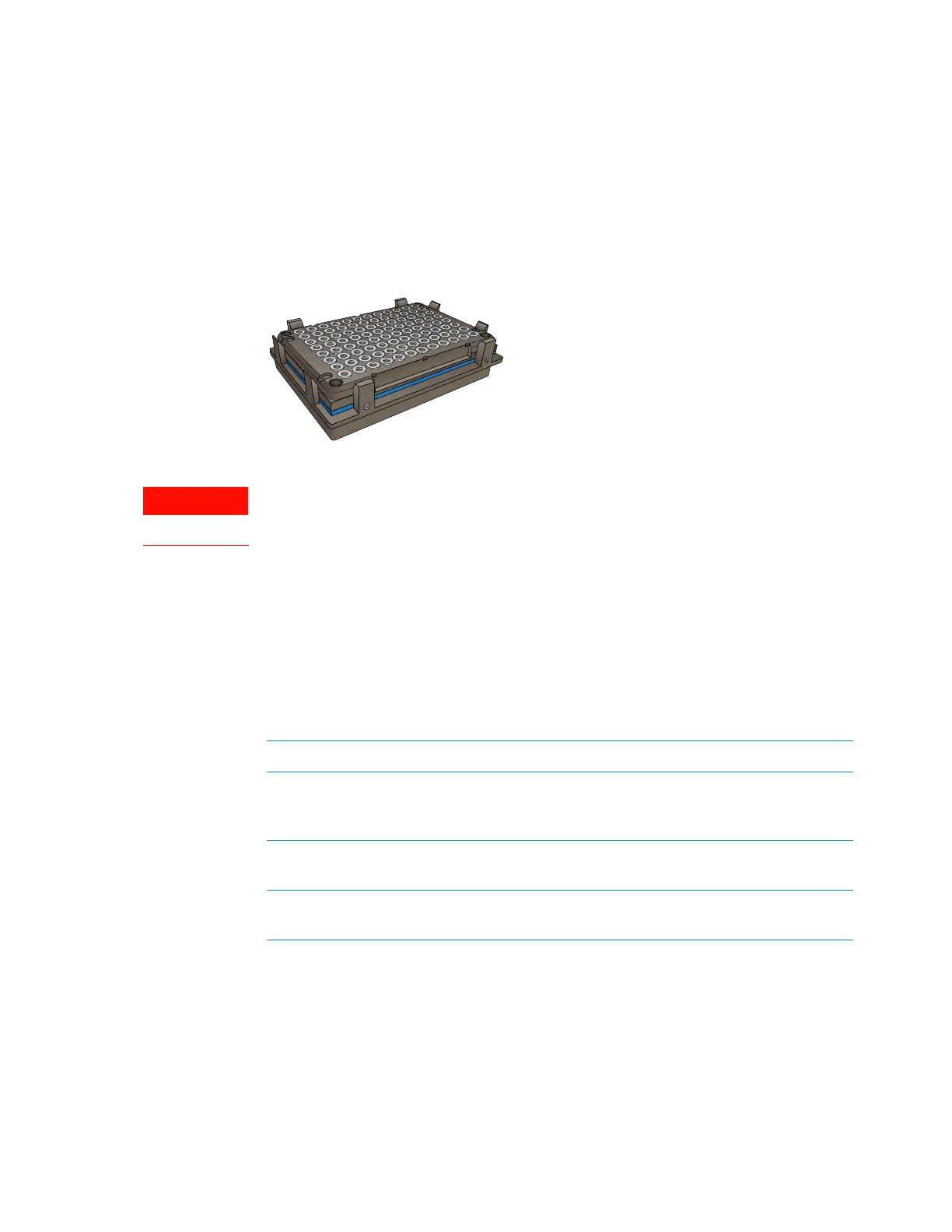

Figure
Magnetic Bead Accessory
To avoid potential injury and damage to the device, only personnel trained in how to
set up Magnetic Bead Accessory and teach the Bravo Platform should perform the
following procedures.
Before you start
Make sure you have the following:
• Magnetic Bead Accessory
• 1.5 mm hex wrench
• Standard platepad installed at the target deck location
Use the following workflow.
Preparing the Magnetic Bead Accessory for installation
To prepare the Magnetic Bead Accessory:
1 Place the Magnetic Bead Accessory on a flat surface, and press down on the top of
the magnet and then release it to determine if the springs have been removed.
• If the magnet does not spring back up after release, skip to step 3.
Step For this task... See...
1 Prepare the accessory for installation. “Preparing the Magnetic Bead
Accessory for installation” on
page 143
2 Configure the accessory in the profile. “Configuring the accessory in Bravo
Diagnostics” on page 144
3 Teach the accessory location. “Teaching the Magnetic Bead
Accessory” on page 145
