Hardware overview
Bravo Platform User Guide
Hardware overview
About this topic
This topic describes the Bravo Platform primary hardware components and the axes of
motion.
Primary hardware components
The following figure and table describe the primary Bravo hardware components.
Figure

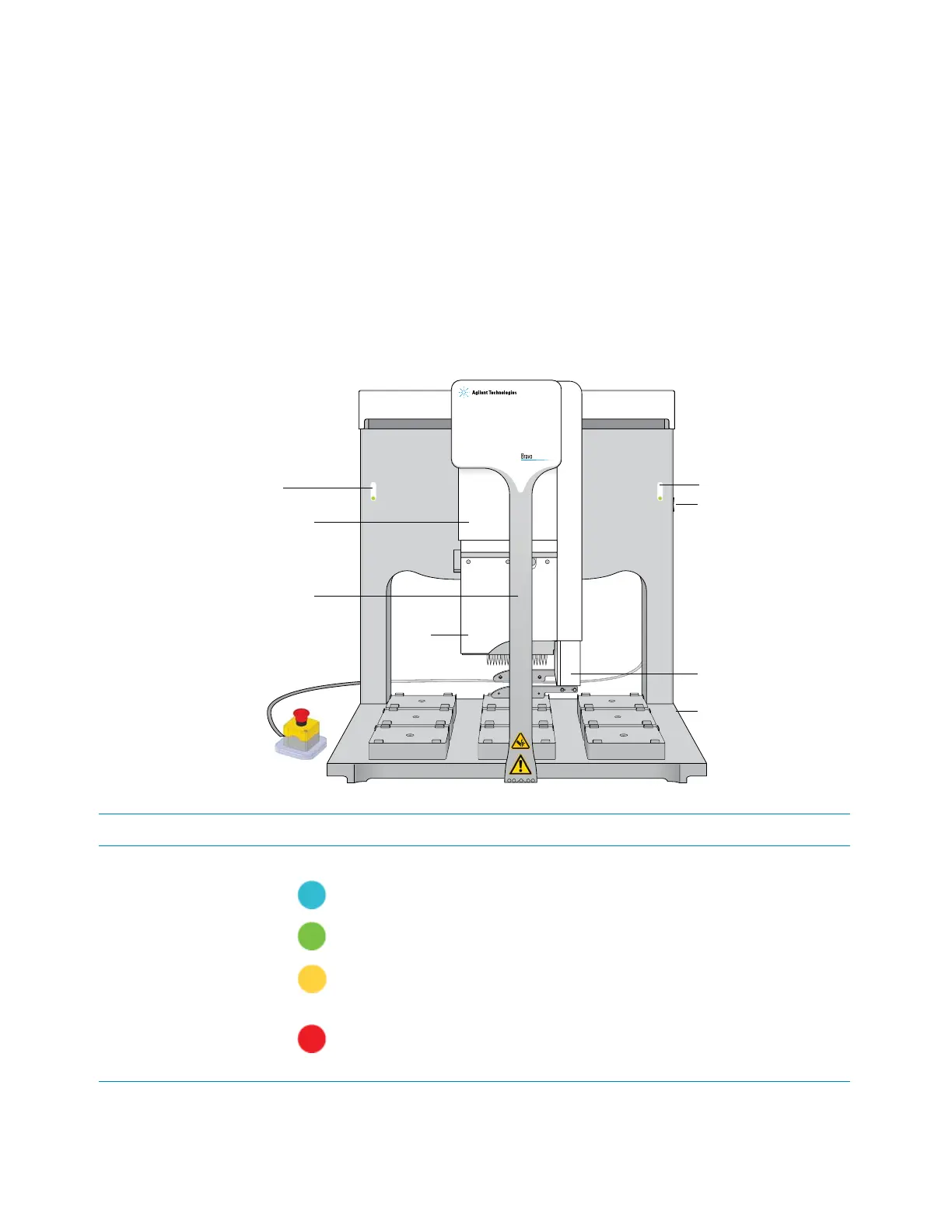

Bravo Platform components (front view)
Item
Feature Description
1 Indicator
lights
The two light panels that display color-coded status of the Bravo Platform:
• (solid blue). The Bravo Platform is turned on and in standby mode.
• (flashing green). The software is running a protocol on the Bravo Platform.
• (flashing orange). The software has initialized the Bravo Platform and Bravo
Diagnostics is open.
• (flashing red). The software has encountered an error while running a
protocol or the interlock circuit is tripped.
