E Diagnostics quick reference
Configuration tab quick reference
Bravo Platform User Guide
Configuration tab quick reference
About this topic
This topic provides a reference for the Configuration tab in Bravo Diagnostics.
Procedures
The Configuration tab enables you to configure and test accessories. For the
procedures, see:
• “Accessories and platepads” on page 103
• “Autofilling accessories” on page 175
Contents
The Configuration tab in Bravo Diagnostics contains the following areas:
• “Location Configuration area” on page 225
• “Accessory Configuration area” on page 226

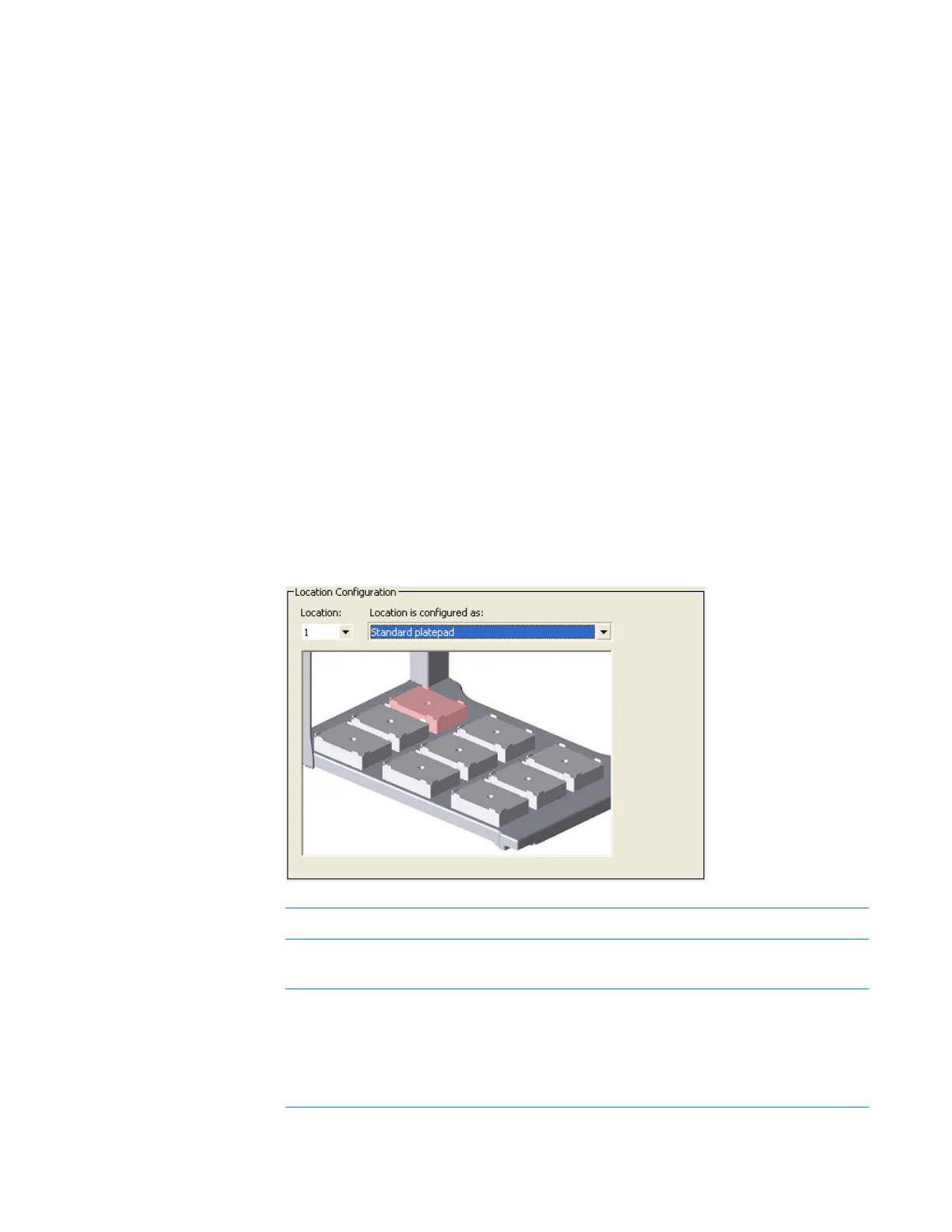

Location Configuration area
Control or indicator Description
Location A list that specifies the deck location. The deck layout
graphic highlights the selected location.
Graphical display of Bravo
deck
An interactive display that provides the following:
• Alternative way to specify the location that you
want to configure.
• Visual display of the type of accessory configured
for each location.
To Next Page
