E Diagnostics quick reference
Configuration tab quick reference
226 Bravo Platform User Guide
Accessory Configuration area
Location is configured as Specifies the function of the selected location as
either:
• Standard platepad. Designates a generic pad.
• (SRT only) platepad for 250 uL tips. Available only
for the shorter model Bravo SRT for use with the
250-µL tip boxes. See “(Bravo SRT only) Setting
up an LT tip box location” on page 172.
• Accessory. Displays the Accessory Wizard, which
steps you through specifying a configured
accessory at the specified position.
Control or indicator Description
Control or indicator Description

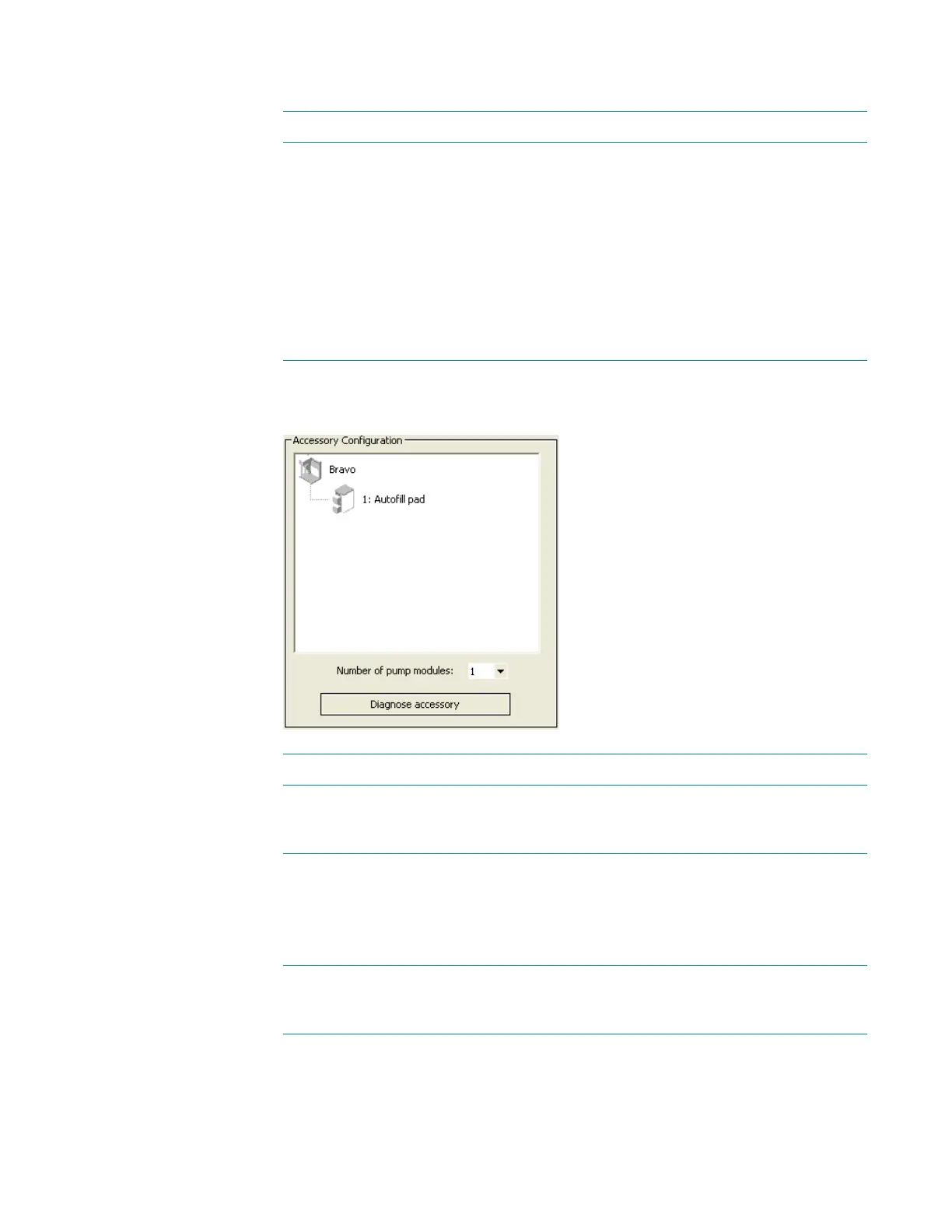

Graphical display of
configured accessories
Displays icons of the Bravo Platform and any
configured accessories associated with specific deck
locations.
Diagnose accessory Displays the Accessory Diagnostics dialog box for the
selected accessory.
Click the accessory icon in the graphic to display the
corresponding dialog box. See “Accessory
Diagnostics dialog box” on page 228.
Number of pump modules Specifies the total number of Pump Modules for the
given Bravo Platform. Each Pump Module contains
two peristaltic pumps.
