A Accessories and platepads
Setting up a Trash or Filter Plate Holder accessory
134
Bravo Platform User Guide
Setting up a Trash or Filter Plate Holder accessory
About this topic
This topic describes how to set up a deck location as one of the following:
• Trash position for disposal of pipette tips
• Filter Plate Holder for use with the Vacuum Filtration Station
You can use this accessory as the filter plate location during the Vacuum
Assemble, Move and Filter Plate, and Vacuum Disassemble tasks in the VWorks
protocol.
The following figure shows the Tip Trash Bin accessory, which can also be used as a
Filter Plate Holder.
Figure

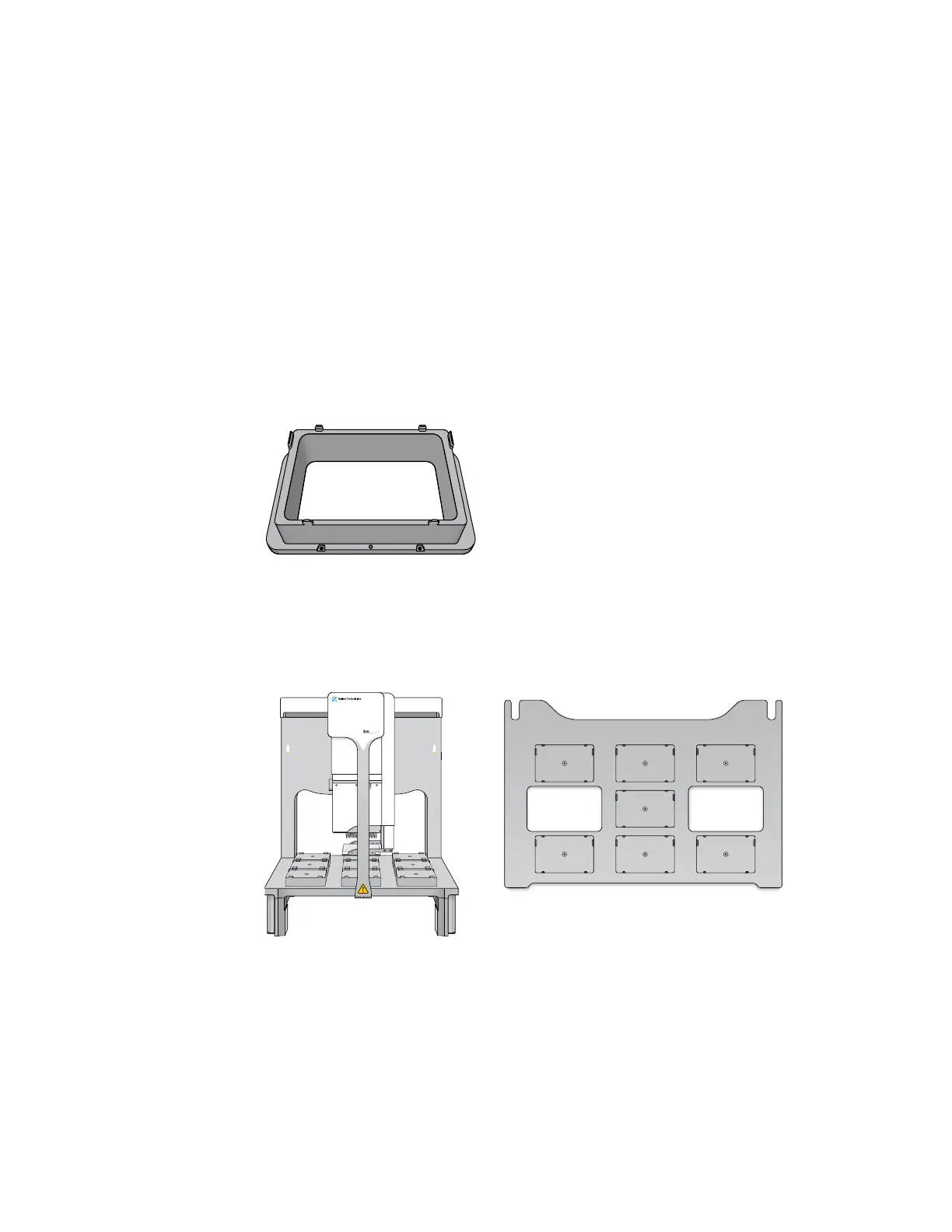

Agilent Tip Trash Bin or Filter Plate Holder accessory
Before you start
The accessory can be installed at Bravo deck locations 4 and 6, which have cutouts for
through-deck access.
Figure
Bravo Platform on deck risers and top view of deck location cutouts
The hardware setup requirements vary depending on how the accessory is to be used.
• Tip Trash Bin. In this case, deck risers (146 mm) are required to provide the extra
height for trash collection below the deck in a trash receptacle (customer-supplied).
In addition, a cutout may be required in the table below this deck location. For
installation details, contact Automation Solutions Technical Support.
