135
A Accessories and platepads
Setting up a Trash or Filter Plate Holder accessory
Bravo Platform User Guide
• Filter Plate Holder. If the accessory is used as a location for placing labware, the
Bravo Platform does not require deck risers. The cutout in the center of the
accessory is sufficient to provide the extra space for the filter plate wells to
protrude beyond the bottom edges of the filter plate skirt.
Use the following procedure to install the accessory.
Installing the Filter Plate Holder accessory
Ensure that you have the following:
• Wrenches
Depending on the instrument, M2 and M4 hex wrenches or T10 and T30 wrenches
are required.
• Filter Plate Holder accessory
To install the Filter Plate Holder accessory:
1 Uninstall the platepad, if applicable, from Bravo deck location 4 or 6.
To uninstall a platepad, remove the M6 flathead screw from the center of the
platepad. Remove the platepad.
2 Remove the four M3 screws that attach the cutout cover to the deck. Lift the
cutout cover out of the deck.

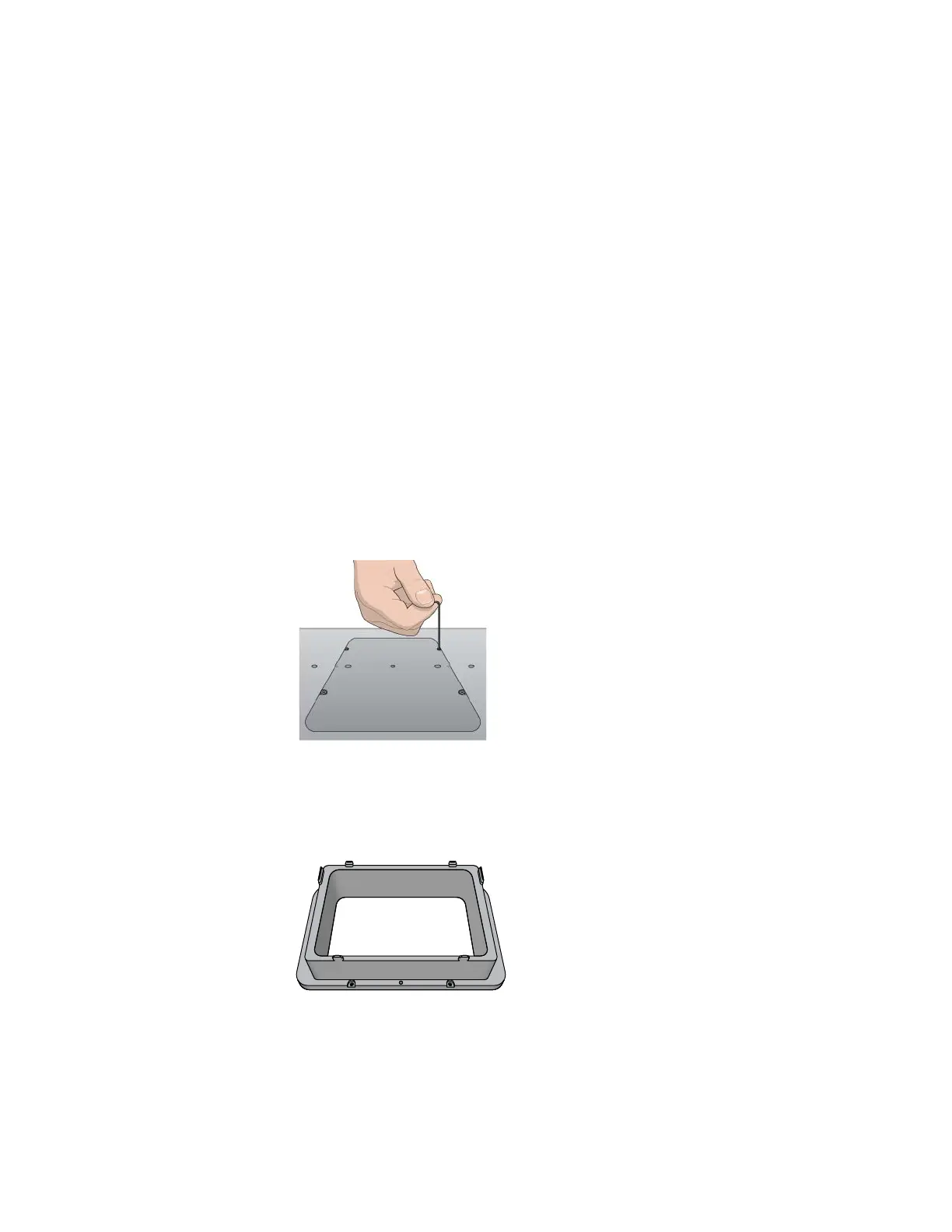

Figure
Side view of cutout cover on the Bravo deck
3 Position the Filter Plate Holder in the cutout, aligning the two dowel pins in the
holes.
4 Install the four M3 screws that secure the Filter Plate Holder to the deck.
Figure
Filter Plate Holder front view
