Agilent Technologies Bravo Platform

A Accessories and platepads
Installing and setting up a Vacuum Filtration Station
116
Bravo Platform User Guide
Figure

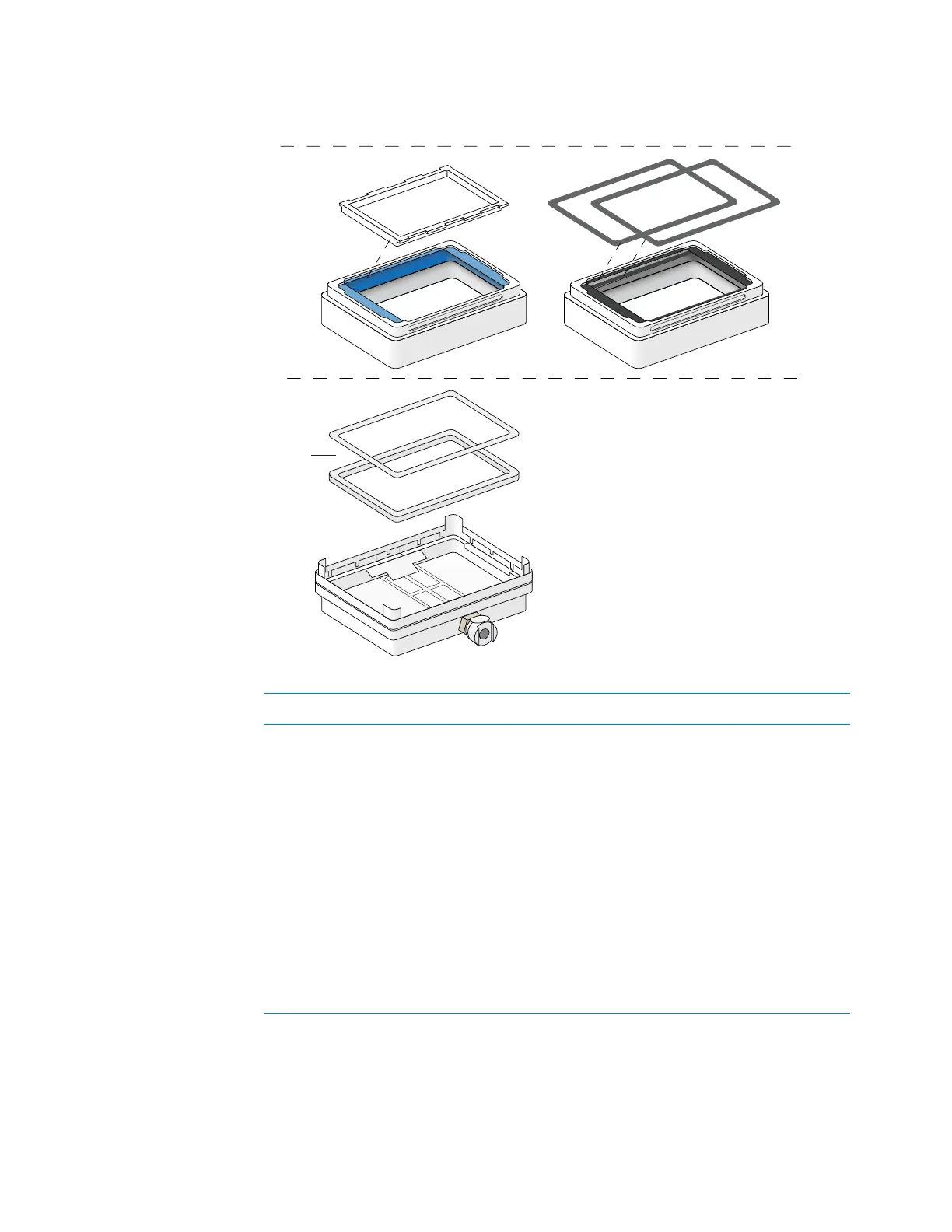

Vacuum Filtration Station components: A collar options, B base and optional inserts
Item Name. Description
1 Collar with
blue
gasket
and clear
gasket
frame
support
The top of the vacuum manifold, which can be placed in
different stacking configurations, as described in the following
section.
The collar is available in standard and deep-well models. The
deep-well collar is required to accommodate plate-on-plate
stacking for deep-well microplates. The Bravo device profile
configuration specifies the collar size.
IMPORTANT If the assembled vacuum configuration
includes a filter plate on top of the collar, ensure that the clear
plastic frame is seated in the blue gasket to reinforce it.
Note: Different types of gasket frame inserts are available. See
the manufacturer’s user documentation for a detailed
description.
