Agilent Technologies FieldFox N9912A - VVM (Vector Voltmeter) Mode - Option 308

VVM (Vector Voltmeter) Mode – Option 308 127
VVM (Vector Voltmeter) Mode – Option 308
VVM Mode measures the electrical length of cables and other devices. The 1-Port
Cable Trimming application displays the electrical length in both Magnitude and
Phase. The 2-Port Transmission measurement displays Magnitude ONLY.

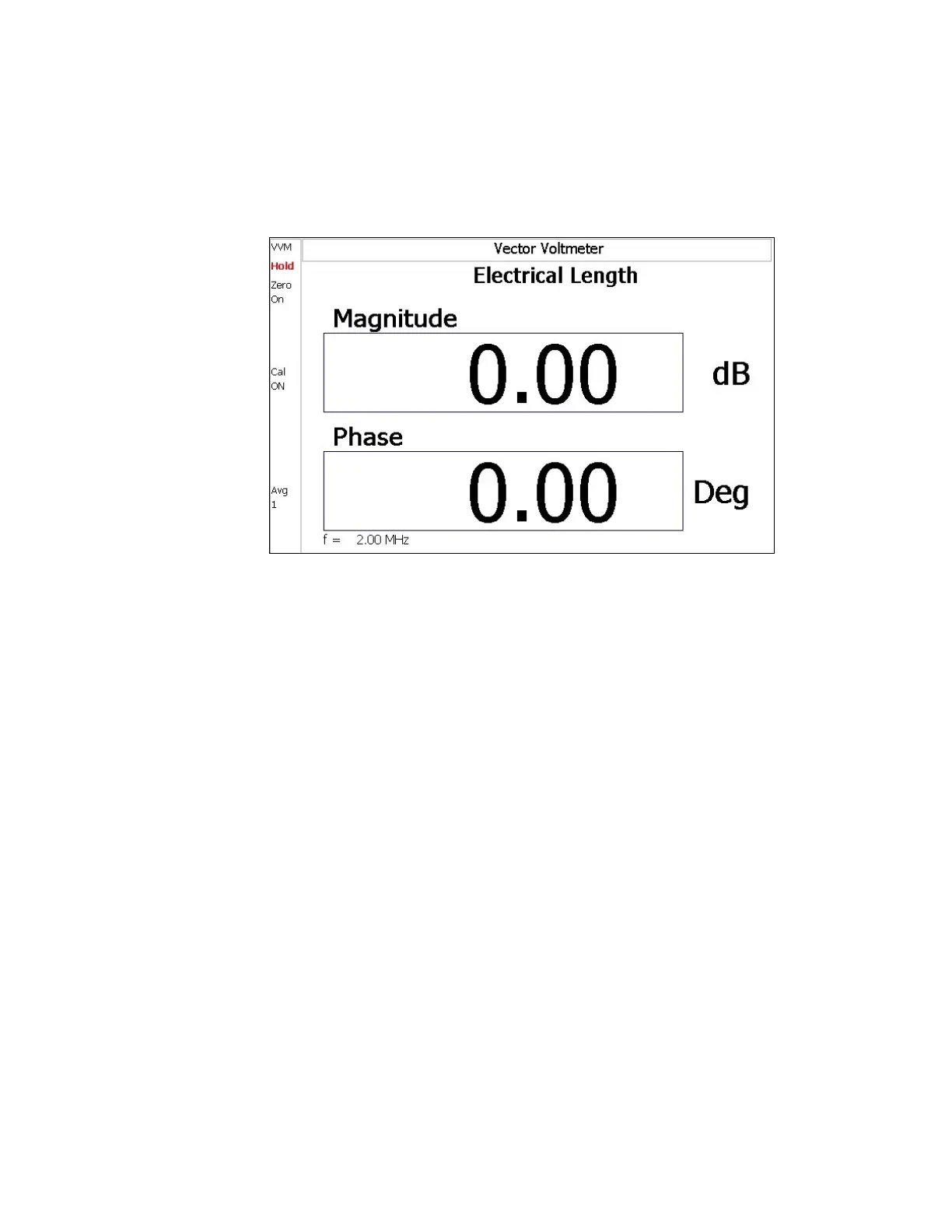

Display for the 1-Port Cable Trimming measurement
In this Chapter
Overview ............................................................... 128
VVM Calibration ................................................... 129
Measurement Selection ....................................... 129
Frequency Selection ............................................ 129
Display Resolution ............................................... 130
IF Bandwidth ........................................................ 130
Output Power ....................................................... 130
Averaging .............................................................. 130
Single/Continuous ............................................... 131
Zeroing ................................................................... 131
Procedures
1-Port Cable Trimming Measurement .............. 132
2-Port Transmission Measurement ................... 133
