SA (Spectrum Analyzer) Mode 69
SA (Spectrum Analyzer) Mode
SA Mode measures signals at the RF IN port. The RF OUT connector is NOT used.
General purpose Spectrum Analyzer measurements are available with Option
230 or 231. SA measurements require NO calibration.
For a comprehensive SA Mode tutorial, see Spectrum Analysis Basics (App Note
150) at http://cp.literature.agilent.com/litweb/pdf/5952-0292.pdf

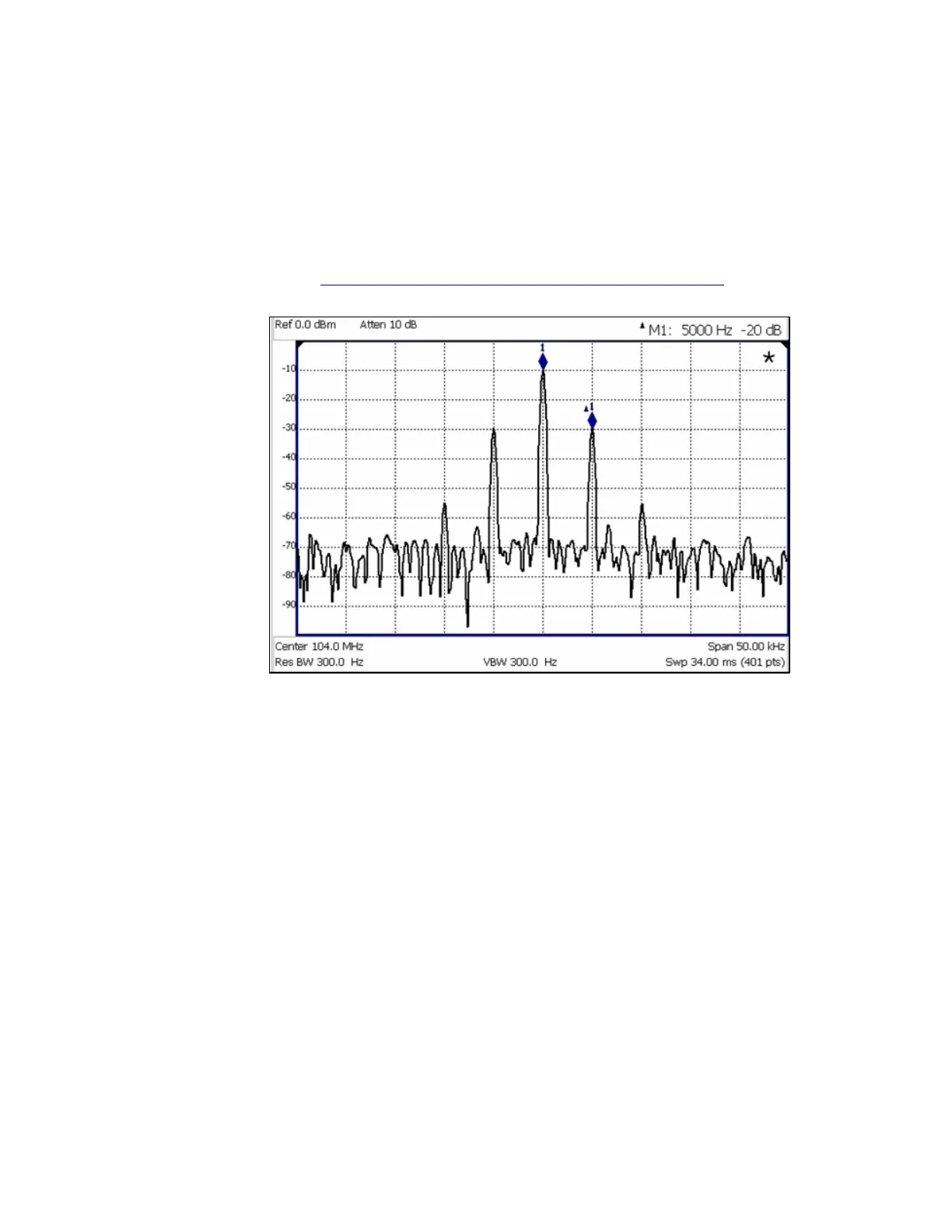

SA display with markers
Carrier with 5 kHz frequency modulation and deviation of 1 kHz
In this Chapter
Frequency Range ................................................... 70
Radio Standard ...................................................... 72
Channel Selection .................................................. 73
Scale and Units ...................................................... 74
External Gain ......................................................... 75
Attenuation and Preamp Control ....................... 75
Check for Compressed Measurements ............... 77
Field Strength Measurements .............................. 77
Tune and Listen ..................................................... 80
Independent Source .............................................. 80
Resolution Bandwidth .......................................... 80
Video Bandwidth ................................................... 84
Sweep Type ............................................................. 84
Sweep Acquisition ................................................. 84
Zero Span Measurements ..................................... 86
