Agilent Technologies FieldFox N9912A - Side Panel; Top Panel

Preparing for Initial Use of Your New FieldFox 17

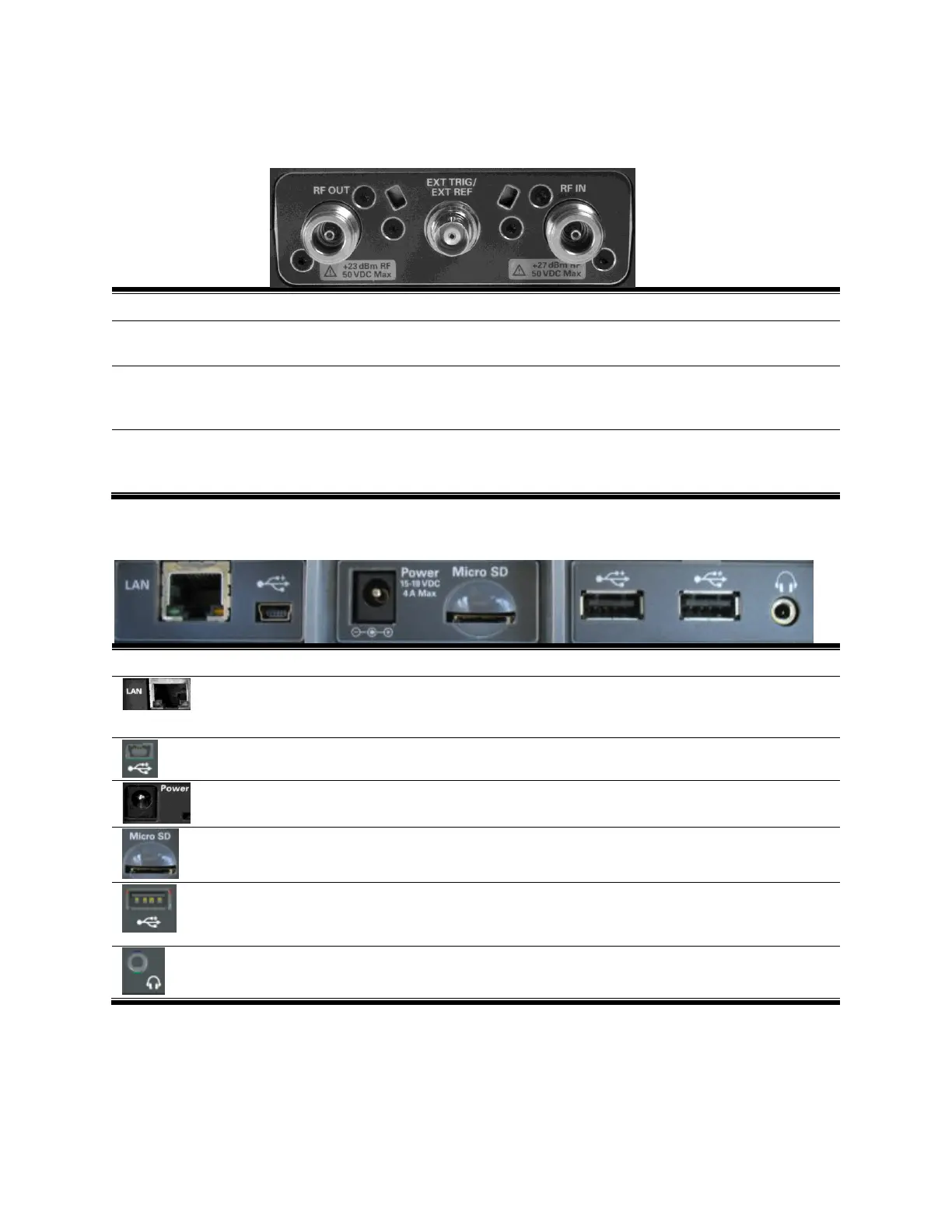

Top Panel
Caption
Description
Learn More
RF OUT
For CAT and NA measurements, use to make reflection measurements.
Maximum: ±50 VDC, +23 dBm RF
CAT Mode on page 20
NA Mode on page 40
Ext Trig/Ext Ref
External Reference connector to connect to an external frequency
reference. Maximum: 5.5 VDC.
Ext Ref on page 165
Ext Trig (SA Mode) on
page 87
RF IN
For CAT and NA mode, use to make transmission measurements.
For SA use to make all measurements.
Maximum: ±50 VDC, +27 dBm RF.
SA Mode on page 69
Side Panel
Caption
Description
Learn More
Ethernet cable connector to read trace data using the FieldFox Data Link Software.
Download the latest version of the software at
http://www.agilent.com/find/fieldfox
Reserved for future use.
DC power connector used to connect to the AC/DC adapter. Maximum: 19 VDC, 4
ADC.
On page 12
Micro Secure Digital slot. Use to extend the memory of the FieldFox.
File locations on page 151
Standard USB connector used to connect a power sensor for Power Meter Mode.
Also used to save files to a USB flash drive.
Use of Keyboard and Mouse is NOT supported.
File locations on page 151
Audio output jack for use with SA Mode Tune and Listen.
On page 80
