54 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 4 Configure and Start Up the Drive

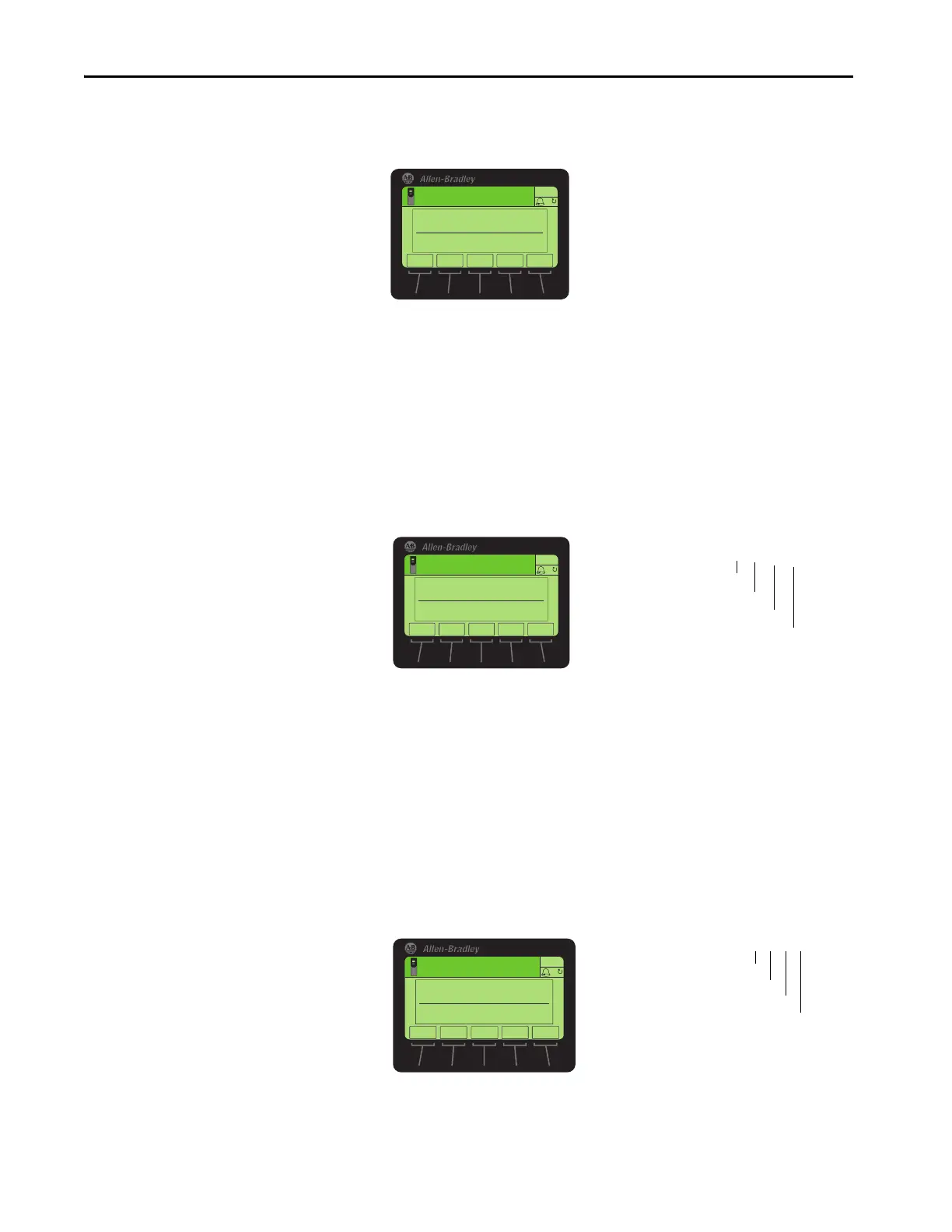

Disable the BOOTP Feature or Change the Source for the Node Address
1. Set the value of 13:36 [BOOTP] to 0 (Disabled).
2. Cycle power to the drive to reset the adapter or use the HIM Reset
Device function that is in the DIAGNOSTIC folder of the drive.
3. Set the IP address, subnet mask, and gateway address by using adapter
parameters. Perform the steps in the following subsections.
Set the IP Address
1. Verify 13:36 [BOOTP] is set to 0 (Disabled).
2. Set the value of 13:38 [IP Addr Cfg 1] … 13:41 [IP Addr Cfg 4] to a
unique IP address.
3. Cycle power to the drive to reset the adapter or use the Reset Device
function of the HIM, in the DIAGNOSTIC folder for the drive.
The ENET status indicator is steady green or updates green if the IP
address is correctly configured.
4. Review 13:37 [Net Addr Src] to verify it indicates 1-Parameters.
Set the Subnet Mask
1. Verify 13:36 [BOOTP] is set to 0 (Disabled).
2. Set the value of 13:42 [Subnet Cfg 1] …13:45 Subnet Cfg 4] to the
desired value for the subnet mask.
3. Cycle power to the drive to reset the adapter or use the Reset Device
function of the HIM in the DIAGNOSTIC folder for the drive.
ESC
ENTER
Stopped
0.00 Hz
AUTO
F
▲▼
Edit BOOTP
Disabled 0
0<<1
Default = 0.0.0.0
255.255.255.2
[IP Addr Cfg 1]
[IP Addr Cfg 2]
[IP Addr Cfg 3]
[IP Addr Cfg 4]
Edit IP Addr Cfg 1
0
0<<255
ESC
ENTER
Stopped
0.00 Hz
AUTO
F
Default = 0.0.0.0 255.255.255.2
[Subnet Cfg 1]
[Subnet Cfg 2]
[Subnet Cfg 3]
[Subnet Cfg 4]
Edit Subnet Cfg 1
0
0<<255
ESC
ENTER
Stopped
0.00 Hz
AUTO
F
