Rockwell Automation Publication 750-UM006C-EN-P - March 2022 55
Configure and Start Up the Drive Chapter 4

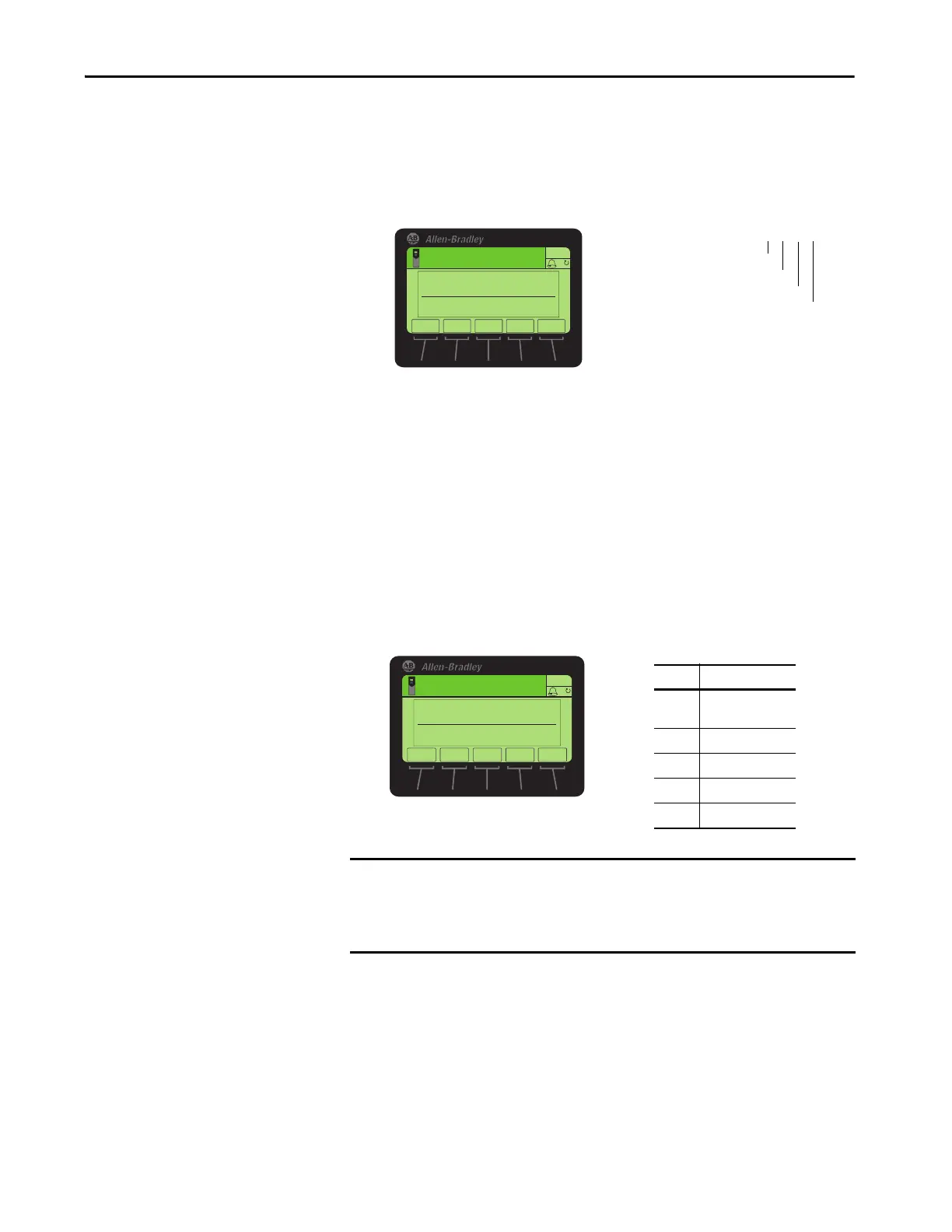

Set the Gateway Address
1. Verify 13:36 [BOOTP] is set to 0 (Disabled).
2. Set the value of 13:46 [Gateway Cfg 1] … 13:49 [Gateway Cfg 4] to
the IP address of the gateway device.
3. Cycle power to the drive to reset the adapter or use the HIM Reset
Device function that is in the DIAGNOSTIC folder of the drive.
Set the Data Rate
By default, the adapter is set to autodetect, so it automatically detects the data
rate and duplex setting that is used on the network. If you must set a specific
data rate and duplex setting, use the 13:50 [Net Rate Cfg] value. This value
determines the Ethernet data rate and duplex setting that the adapter uses to
communicate.
1. Set the value of 13:50 [Net Rate Cfg] to the data rate at which your
network is operating.
2. Cycle power to the drive to reset the adapter or use the Reset Device
function of the HMI in the DIAGNOSTIC folder for the drive.
IMPORTANT Auto detection of communication rate and duplex works only if the device
(usually a switch) on the other end of the cable is also set to detect the baud
rate/duplex. If one device has the baud rate/duplex hard-coded, the other
device must be hard-coded to the same settings.
Default = 0.0.0.0 255.255.255.2
[Gateway Cfg 1]
[Gateway Cfg 2]
[Gateway Cfg 3]
[Gateway Cfg 4]
Edit Gateway Cfg 1
0
0<<255
ESC
ENTER
Stopped
0.00 Hz
AUTO
F
Value Data Rate
0 Autodetect
(default)
1 10 Mbps Full
2 10-Mbps Half
3 100 Mbps Full
4 100-Mbps Half
ESC
ENTER
Stopped
0.00 Hz
AUTO
F
▲▼
Edit Net Rate Cfg
Autodetect 0
0<<4
To Next Page
