8.3 Removing an Amplifier Module from the Mainframe
1. Remove the M3 transit screws if they are still fitted.
REMOVE THE M3 TRANSIT POZIDRIV SCREWS FROM
THE LEFT HAND SIDE OF ALL AMPLIFIER MODULES
AS SHOWN BELOW.

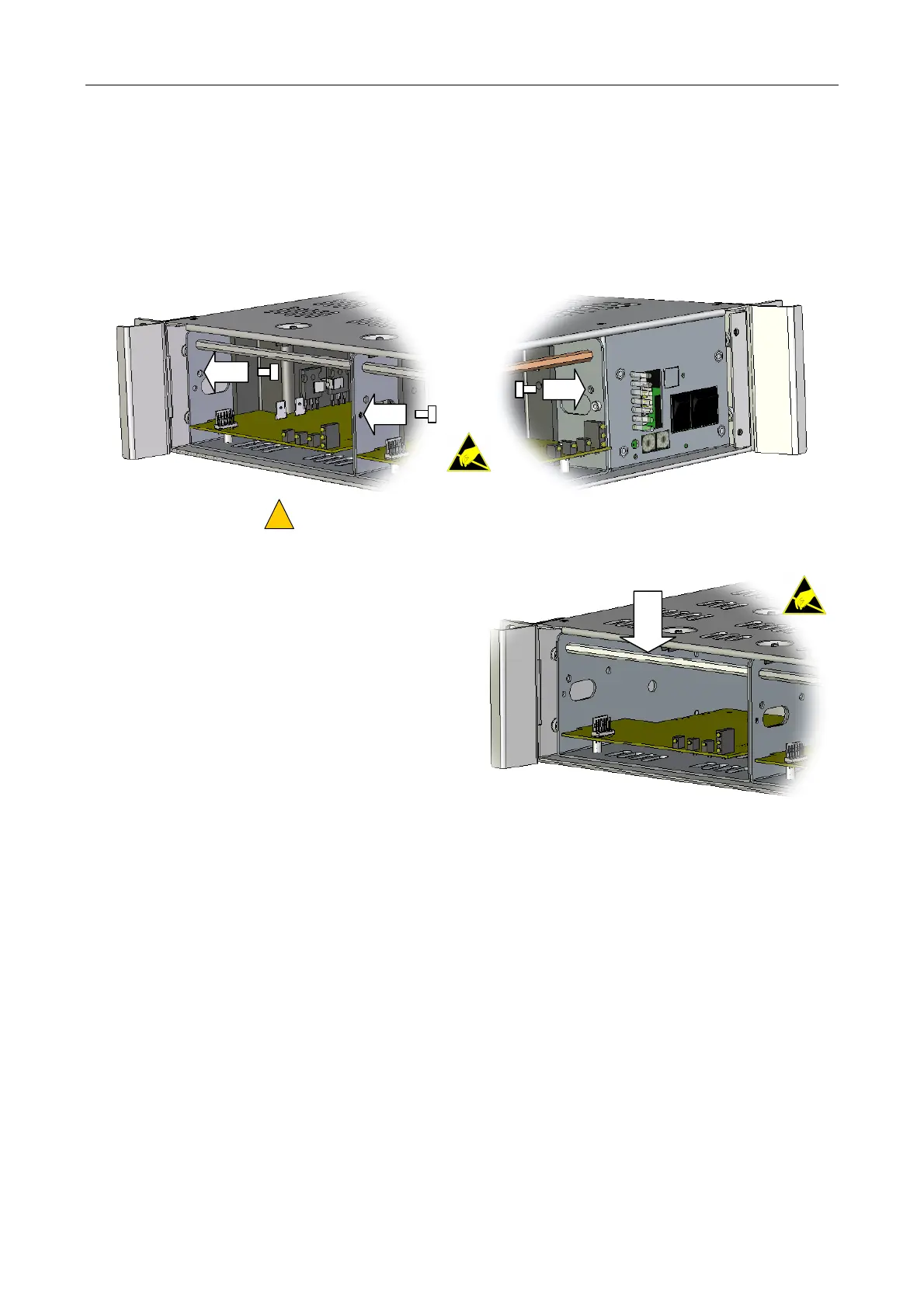

(Front panel removed) (Front panel removed)
REMOVE THE M3 TRANSIT SCREW FROM THE
RIGHT HAND ON THE RIGHT-MOST AMPLIFIER
MODULE ONLY AS SHOWN BELOW.
!
!
THE SCREWS ATTACHING THE TWO PARTS OF A MX400 AMPLIFIER
MODULE TOGETHER SHOULD NEVER BE REMOVED.
2. Remove the required amplifier module from
the mainframe by pulling the front cross-rod
towards you.
CROSS-ROD
