ASL INTERCOM iPAM400 User Manual

iPAM400 – Product Manual
U-0629-0171.doc – Issue: 04 complete, approved
Page 7 of 138
1 Overview
The iPAM400 Intelligent Public Address Amplifier Mainframe with Loudspeaker Line Surveillance is a 2U
rack mount unit which combines amplification, routing, and Ethernet connectivity, and includes
loudspeaker line monitoring.
Amplification is provided by high efficiency and low quiescent current modular amplifiers using ASL
proprietary Adaptive Class D technology, whilst Voice over IP and Digital Voice announcement are provided
by an embedded controller supporting the ASL VIPA software suite.

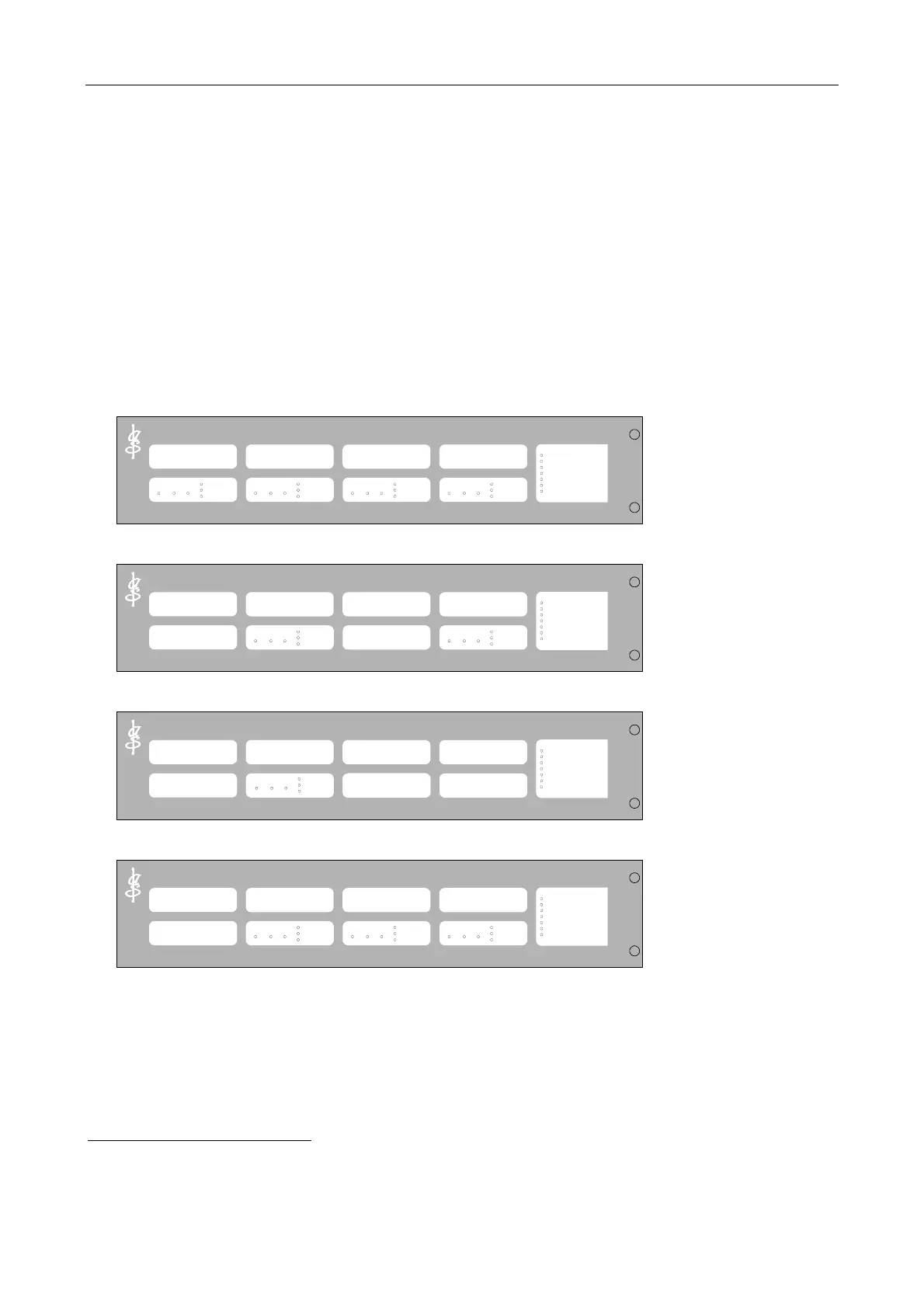

The iPAM400 can be fitted with the ASL MX series 100 V PA/VA amplifier modules
1
in any of the following
standard combinations:
• 4 x 100 W
2
-0dB
-20dB
-40dB
100W
-0dB
-20dB
-40dB
100W
-0dB
-20dB
-40dB
100W
-0dB
-20dB
-40dB
100W
Modular Power Amplifier
iPAM400
fault
sync
process or
ethernet
aux
battery
mains
faultselect
supply faultselectsupply faultselectsupply faultselectsupply
• 2 x 200 W
2
-0dB
-20dB
-40dB
200W
-0dB
-20dB
-40dB
200W
Modular Power Amplifier
iPAM400
fault
sync
process or
ethernet
aux
battery
mains
faultselect
supplyfaultselectsupply
• 1 x 400W
Modular Power Amplifier
iPAM400
fault
sync
process or
ethernet
aux
battery
mains
-0dB
-20dB
-40dB
400W
faultselectsupply
• 1 x 200 W + 2 x 100 W
2
-0dB
-20dB
-40dB
200W
-0dB
-20dB
-40dB
100W
-0dB
-20dB
-40dB
100W
Modular Power Amplifier
iPAM400
fault
sync
process or
ethernet
aux
battery
mains
faultselect
supply faultselectsupplyfaultselectsupply
The amplifier modules are inserted from the front of the mainframe, and are protected by a removable
front panel.
1
The iPAM400 is designed to use the MX Series Amplifier Modules, and is not compatible with the M100, M200, and M400 M Series
Amplifier Modules. These two series of amplifier modules are electrically identical, but have different mechanics and connectors.
2
The mainframe is fully populated in the standard configurations. However the mainframe does not need to be fully populated with
amplifiers, for example three MX100 amplifiers could be fitted, or a single MX200 amplifier.
