5 Connections

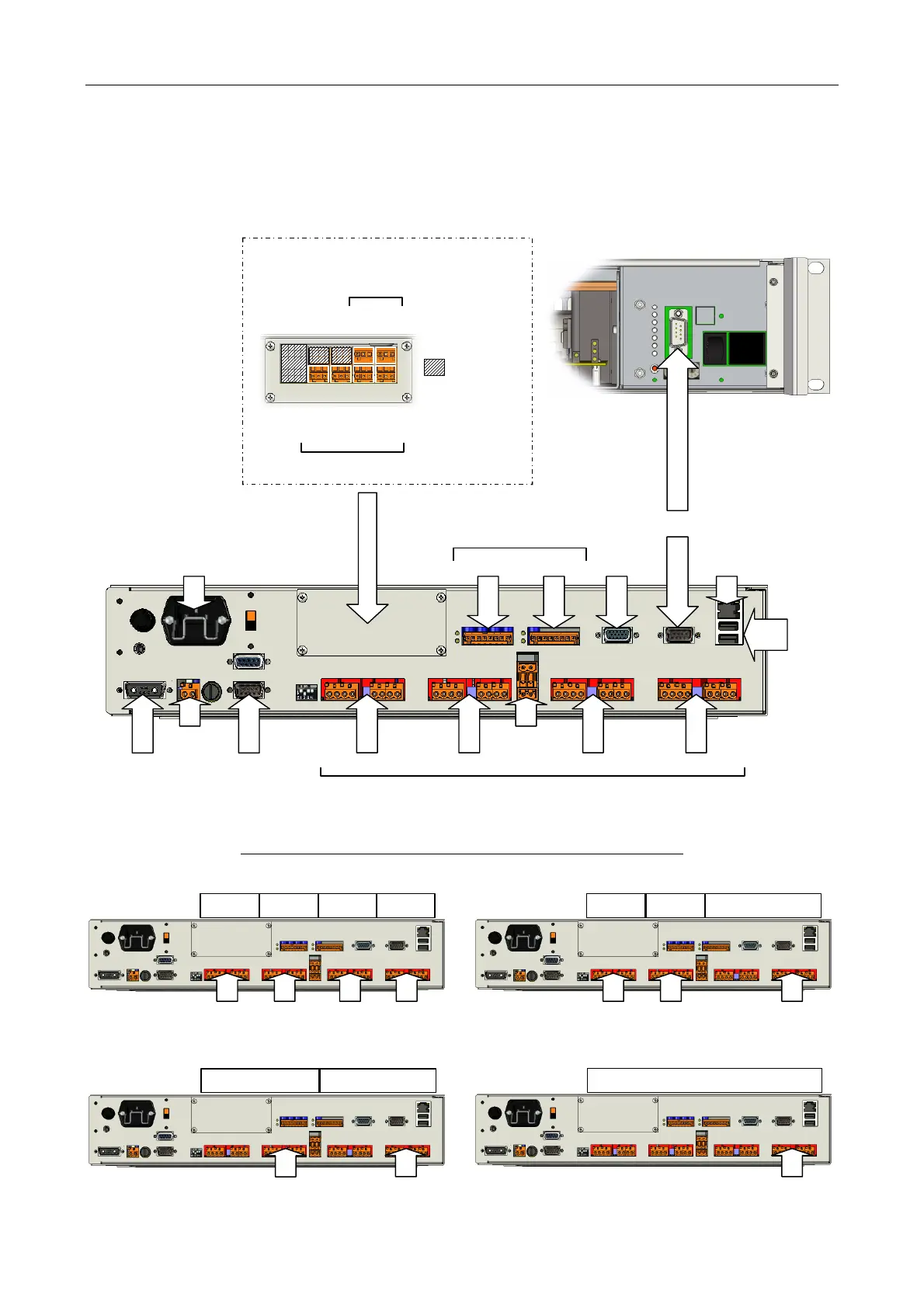

Figure 15 iPAM400 connection points
SLOT 4 SLOT 3 SLOT 1
SLOT 3 SLOT 1
SLOT 1
AUDIO I/O EXPANSION MODULE (OPTIONAL)
2 x MX200 CONFIGURATION:
O
I
SLOT 4
SLOT 3
SLOT 2 SLOT 1
RS232
AC INLET ETHERNET
USB
100
V LINE OUTPUTS
AUDIO IN/RS485 PORTS
VGA
iPAM400 – FRONT
(FRONT PANEL REMOVED)
The rear RS232
PORT is also
duplicated on the
front of the
iPAM400, behind
the removable
front panel.
iPAM400
– REAR

1
2
1 x MX400 CONFIGURATION:
100
V LINE OUTPUT ALLOCATION PER STANDARD AMPLIFIER CONFIGURATION:
SLOT 4 SLOT 3 SLOT 2 SLOT 1
4 x MX100 CONFIGURATION: 1 x 200 W + 2 x 100 W CONFIGURATION:
MX100 MX100 MX100 MX100 MX200 MX100 MX100
MX200 MX200
MX400
STANDBY IN
STATUS
PORT
AUX OUT
BATTERY IN
INPUT 2 INPUT 1
LOW LEVEL AUDIO OUTPUTS
OUT 1 OUT 2 OUT 3 OUT 4
AUDIO INPUTS
NOT USED
IN 3 IN
4
