The VIN is then automatically transferred via MID 0052 to the Atlas Open Protocol.
NOTE: It is MANDATORY to specify into the message MID 0051 the Station ID (0 or 1).

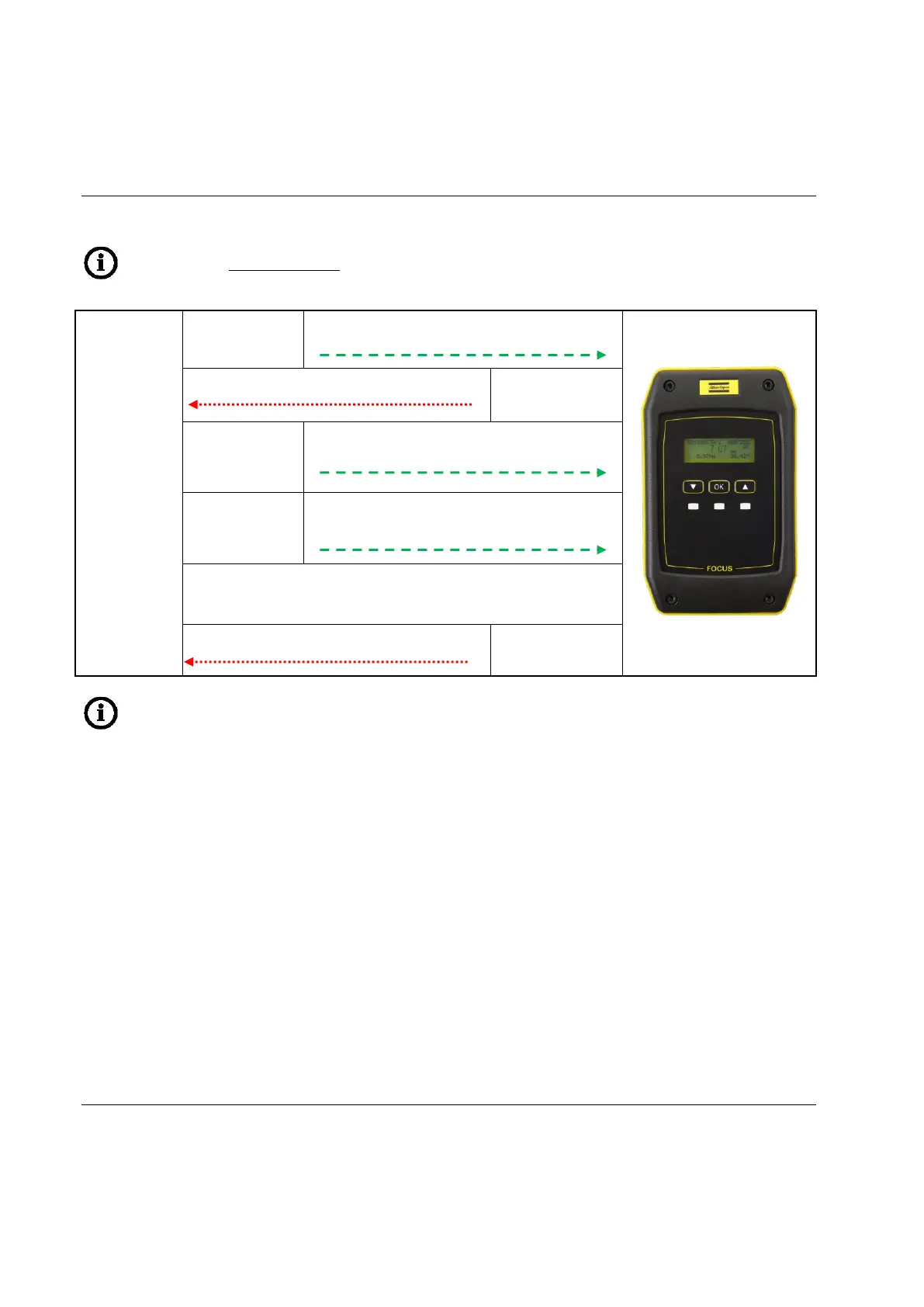

Atlas Open
Protocol
First Step
MID 0001 – Communication start
MID 0002
Second Step
Third Step
MID 0051- Vehicle ID Number subscribe
Fourth Step
MID 0050 – Vehicle ID Number download
request
JOB STARTS
MID 0052 - Vehicle ID Number
Fifth Step
NOTE: The procedures above explained consider an Event Type set to AOP_SETVIN during the
configuration of the Event.
If the Event Type is set to AOP_IDENTIFIER, the two procedures are the same, except the
following conditions:
- MID 0050 – Vehicle ID Number download request is replaced by MID
0150 – Identifier download request
- MID 0051 – Vehicle ID Number subscribe is replaced by MID 0151 –
Identifier subscribe
- MID 0052 – Vehicle ID Number is replaced by MID 0152 – Identifier
